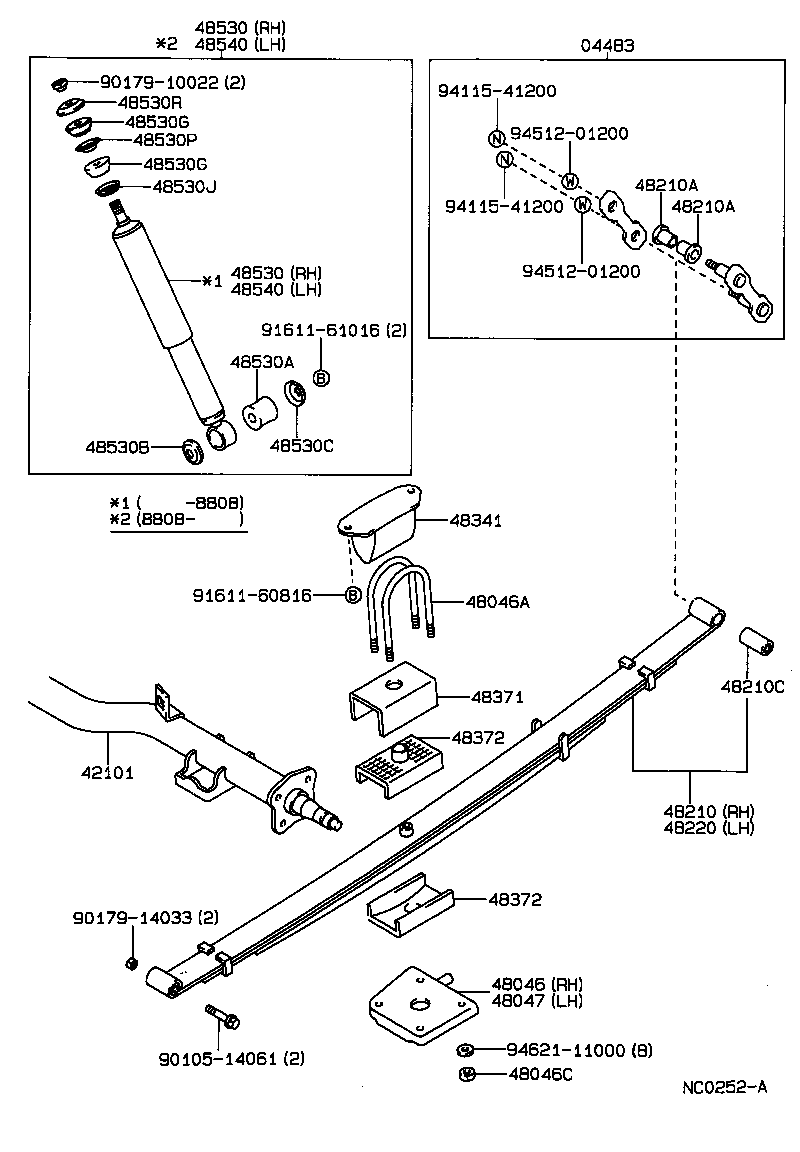

CE96V-AXPDS (1987)
Toyota Corolla
(8708- )CE96,97,EE96,97,98
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-20020 |
CE96,97,EE96,97,98 |
2 | ||
| 42101 - TUBE SUB-ASSY, REAR AXLE | ||||
| 42101-13061 |
CE96,97,EE96,97,98 |
1 | ||
| 42101-13060 |
CE96,97,EE96,97,98 |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-13060 |
CE96,97,EE96,97,98 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-10010 |
CE96,97,EE96,97,98 長さ=143 |
4 | ||
| 48046C - NUT(FOR REAR SPRING U BOLT) | ||||
| 90170-10022 |
CE96,97,EE96,97,98 |
8 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-13060 |
CE96,97,EE96,97,98 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-13261 |
CE96,97,EE97,98 3枚ﾘｰﾌ |
1 | ||
| 48210-13260 |
CE96,97,EE96,97,98 3枚ﾘｰﾌ |
1 | ||
| 48210-13261 |
CE96,97,EE96,97,98 3枚ﾘｰﾌ |
2 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15003 |
CE96,97,EE96,97,98 |
4 | ||
| 90385-15070 |
CE96,97,EE96,97,98 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15003 |
CE96,97,EE96,97,98 |
4 | ||
| 90385-15070 |
CE96,97,EE96,97,98 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-12001 |
CE96,97,EE96,97,98 ﾘﾔ |
2 | ||
| 90389-14034 |
CE96,97,EE96,97,98 ﾌﾛﾝﾄ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-13261 |
CE96,97,EE97,98 3枚ﾘｰﾌ |
1 | ||
| 48210-13260 |
CE96,97,EE96,97,98 3枚ﾘｰﾌ |
1 | ||
| 48210-13261 |
CE96,97,EE96,97,98 3枚ﾘｰﾌ |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-13090 |
CE96,97,EE96,97,98 |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-13070 |
CE96,97,EE96,97,98 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-12020 |
CE96,97,EE96,97,98 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-12020 |
CE96,97,EE96,97,98 |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80071 |
CE96,97,EE96,97,98 ﾏｰｸ 13160 OR 13170 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80071 |
CE96,97,EE96,97,98 ﾏｰｸ 13160 OR 13170 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
AE95,CE95,96,97,EE96,97,98 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
AE95,CE95,96,97,EE96,97,98 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
CE96,97,EE96,97,98 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10005 |
CE96,97,EE96,97,98 上側 |
2 | ||
| 90948-01003 |
CE96,97,EE96,97,98 下側 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90540-10005 |
CE96,97,EE96,97,98 上側 |
2 | ||
| 90948-01003 |
CE96,97,EE96,97,98 下側 |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02002 |
CE96,97,EE96,97,98 |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02007 |
AE95,CE95,96,97,EE96,97,98 |
2 | ||
| 48530R - RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02045 |
CE96,97,EE96,97,98 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80071 |
CE96,97,EE96,97,98 ﾏｰｸ 13160 OR 13170 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80071 |
CE96,97,EE96,97,98 ﾏｰｸ 13160 OR 13170 |
1 | ||
| Common parts | ||||
| 90105-14061 | ||||
| 90179-10022 | ||||
| 90179-14033 | ||||
| 91611-60816 | ||||
| 91611-61016 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 94621-11000 | ||||
