CE96V-AXMNS (1987)

Toyota Corolla

Production Aug 1987 - Sep 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CE96,97,EE96,97,98..CTD,DX,GL,STD

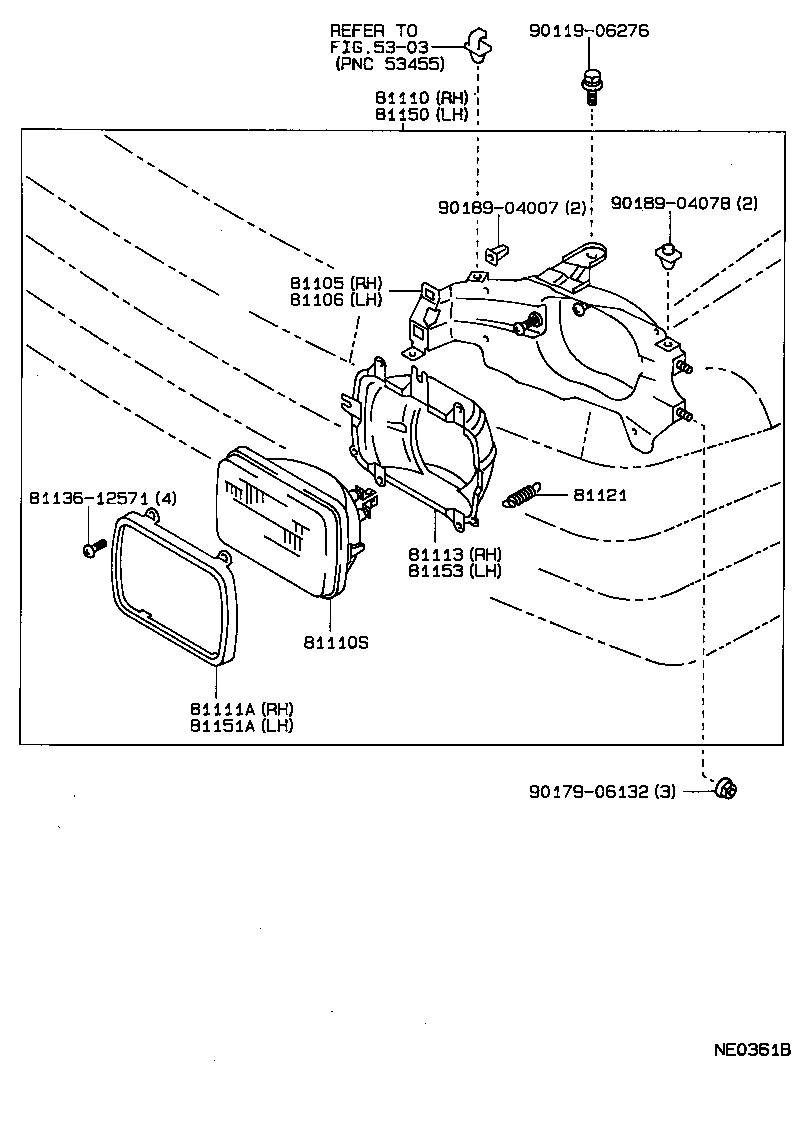

Click highlighted areas on diagram

diagram 5303 81105 81106 81110 81110S 81111A 81113 81121 8113612571 81150 81151A 81153 9011906276 9017906132 9018904007 9018904078
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-13100

CE96,97,EE96,97,98..CTD,DX,GL,STD

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-13100

CE96,97,EE96,97,98..CTD,DX,GL,STD

 1
81110 - HEADLAMP ASSY, RH
81110-13100

CE96,97,EE96,97,98..CTD,DX,GL,STD

 1
81110S - SEALED BEAM UNIT, NO.1
90981-04029

CE96,97,EE96,97,98..CTD,DX,GL,STD

12V 65/55W,*WB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-13100

CE96,97,EE96,97,98..CTD,DX,GL,STD

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-13100

CE96,97,EE96,97,98..CTD,DX,GL,STD

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

CE96,97,EE96,97,98..CTD,DX,GL,STD

 2
81150 - HEADLAMP ASSY, LH
81150-13100

CE96,97,EE96,97,98..CTD,DX,GL,STD

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-13100

CE96,97,EE96,97,98..CTD,DX,GL,STD

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-13100

CE96,97,EE96,97,98..CTD,DX,GL,STD

 1
Common parts
81136-12571
90119-06276
90179-06132
90189-04007
90189-04078
Linked diagrams
5303
