CE96V-AXMNS (1987)

Toyota Corolla

Production Aug 1987 - Sep 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )V,WG

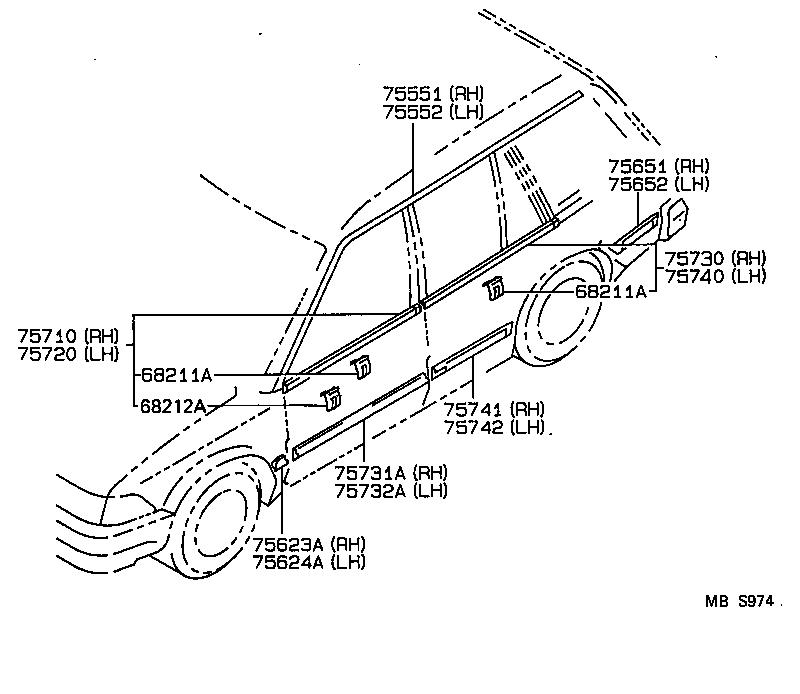

Click highlighted areas on diagram

diagram 68211A 68211A 68212A 75551 75552 75623A 75624A 75651 75652 75710 75720 75730 75731A 75732A 75740 75741 75742
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-13071

CE96,97,EE96,97,98

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-13071

CE96,97,EE96,97,98

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-12460

AE91,95,CE9#,EE9#..DX,FXD,GL,TX

 1
75623-12460

CE9#,EE9#..DX,GL,TX

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-12460

AE91,95,CE9#,EE9#..DX,FXD,GL,TX

 1
75624-12460

CE9#,EE9#..DX,GL,TX

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-13070

CE96,97,EE96,97,98..DX,GL

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-13060

CE96,97,EE96,97,98..DX,GL

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-12860

AE91,95,CE9#,EE9#..DX,GL,TX

 1
75731-12860

CE9#,EE9#..DX,GL,TX

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-12700

AE91,95,CE9#,EE9#..DX,GL,TX

 1
75732-12700

CE9#,EE9#..DX,GL,TX

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-12630

CE9#,EE9#..DX,GL,TX

 1
75741-12630

AE91,95,CE9#,EE9#..DX,GL,TX

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-12610

AE91,95,CE9#,EE9#..DX,GL,TX

 1
75742-12610

CE9#,EE9#..DX,GL,TX

 1
