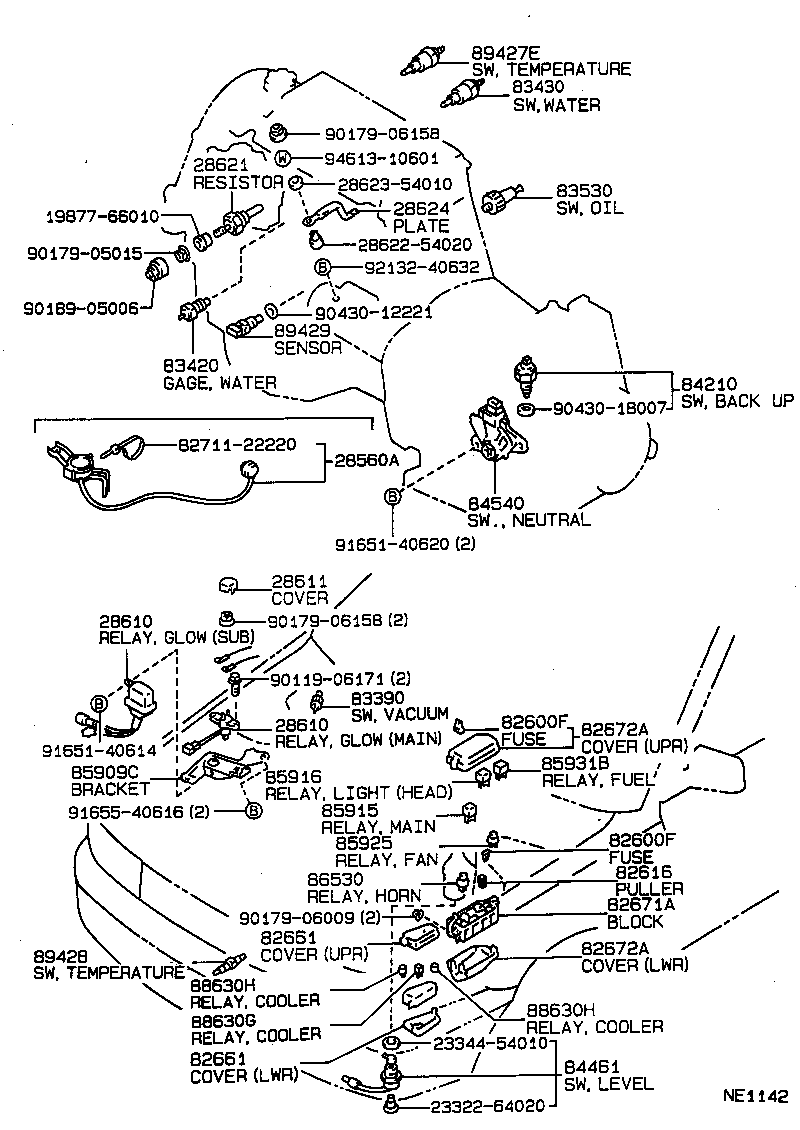

CE96V-AXMDS (1987)
Toyota Corolla
(8905- )CE90,95 ; (8908- )CE96,97
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28560A - BLOCK, HEATER | ||||
| 28560-19015 |
1C..CE97..L;1C,2C..CE90,95,96;1C..CE97..5F..(DX,GL) |
1 | ||
| 28560-19015 |
1C..CE96;1C..CE97..5F |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64050 |
1C..CE96,97 MAIN |
1 | ||
| 28610-55040 |
1C..CE9# SUB |
1 | ||
| 28610-64080 |
1C,2C..CE9# MAIN |
1 | ||
| 28610-64050 |
1C..CE9# MAIN |
1 | ||
| 28610-55040 |
1C..CE96,97 SUB |
1 | ||
| 28610-64090 |
1C,2C..CE9# SUB |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64050 |
1C..CE96,97 MAIN |
1 | ||
| 28610-55040 |
1C..CE9# SUB |
1 | ||
| 28610-64080 |
1C,2C..CE9# MAIN |
1 | ||
| 28610-64050 |
1C..CE9# MAIN |
1 | ||
| 28610-55040 |
1C..CE96,97 SUB |
1 | ||
| 28610-64090 |
1C,2C..CE9# SUB |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
1C,2C..CE9# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64050 |
1C,2C..CE9# |
1 | ||
| 28624-64020 |
1C..CE9# |
1 | ||
| 28624-64020 |
1C..CE96,97 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09005 |
AE91,CE96,97,EE96,97,98..CBR,DSL 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09002 |
AE91,CE96,97,EE96,97,98..CBR,DSL 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09005 |
AE91,CE96,97,EE96,97,98..CBR,DSL 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09002 |
AE91,CE96,97,EE96,97,98..CBR,DSL 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12080 |
AE91,92,CE9#..DSL,EFI |
1 | ||
| 82671-12080 |
AE9#,CE9#,EE9# |
1 | ||
| 82671-12080 |
AE9#,CE9#,EE90..DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,GL,GT,SE,STD,TX,XE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12020 |
AE91,92,CE9#..DSL,EFI 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12020 |
CE96,97 上側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12020 |
AE91,92,CE9#..DSL,EFI 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12020 |
CE96,97 上側 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CE9# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AE92,CE9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CE9# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE91,95,CE9#,EE9#..MTM |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-12050 |
CE9# |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-12010 |
CE9# |
1 | ||
| 85909-12020 |
CE9# |
1 | ||
| 85909-12010 |
CE96,97 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02006 |
AE91,CE96,97,EE96,97,98..CBR,DSL HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE9#,CE9#,EE9# |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02006 |
CE9# |
1 | ||
| 90987-02006 |
CE96,97;CE90..4FC..DX |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
EE90;EE96..3FC;AE91,CE90,96,97,EE97,98..CTD,DX,GL,L,STD |
1 | ||
| 88630-32010 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
2 | ||
| 90987-02004 |
EE90;EE96..3FC;AE91,CE90,96,97,EE97,98..CTD,DX,GL,L,STD |
2 | ||
| 90987-02004 |
EE90;CE90..4FC..DX;AE91,CE96,97,EE97,98..CTD,DX,GL,L,STD |
2 | ||
| 90987-02004 |
EE90;AE91,CE9#,EE97,98..DX,GL,STD |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
2 | ||
| 90987-02004 |
EE90;EE96..3FC;AE91,CE90,96,97,EE97,98..CTD,DX,GL,L,STD |
2 | ||
| 90987-02004 |
EE90;CE90..4FC..DX;AE91,CE96,97,EE97,98..CTD,DX,GL,L,STD |
2 | ||
| 90987-02004 |
EE90;AE91,CE9#,EE97,98..DX,GL,STD |
2 | ||
| 89427E - SWITCH, TEMPERATURE (FOR HEATER IDLE UP) | ||||
| 89427-12051 |
CE9# |
1 | ||
| 89427-12051 |
CE9# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15030 |
CE9# |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
CE96,97 |
1 | ||
| 89422-20010 |
CE9# |
1 | ||
| 89422-30020 |
CE9# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 82711-22220 | ||||
| 90119-06171 | ||||
| 90179-05015 | ||||
| 90179-06009 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
(8905- )3D,4D,5D ; (8908- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80007 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84112-80005 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12220 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84140-12320 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12800 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,L,STD,TX |
1 | ||
| 84310-12800 |
CE9#,EE9#..CTD,DX,L,STD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84312-12040 |
CE9#,EE90,97,98..DX,FXD,SE,STD,TX 東海理化 |
1 | ||
| 84312-12050 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84312-12040 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84312-12050 |
CE9#,EE90,97,98..DX,FXD,SE,STD,TX MATSUSHITA |
1 | ||
| 84312-12040 |
AE91..FXVS,FXZS;AE9#,CE9#,EE9#..CBR,DSL,EFI 東海理化 |
1 | ||
| 84312-12050 |
AE91..FXVS,FXZS;AE9#,CE9#,EE9#..CBR,DSL,EFI MATSUSHITA |
1 | ||
| 84312-12050 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 84329-12010 |
AE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXZI,G,GT,SE,STD,TX |
1 | ||
| 84329-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 84329-12010 |
AE91..FXVS,FXZS;AE9#,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12290 |
AE9#,CE9#,EE9# |
1 | ||
| 84332-12250 |
CE96,97,EE96,97,98 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9#,CE9#,EE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12440 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,L,STD,TX 東海理化 |
1 | ||
| 84652-12430 |
CE9#,EE9#..CTD,DX,L,STD MATSUSHITA |
1 | ||
| 84652-12430 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,L,STD,TX MATSUSHITA |
1 | ||
| 84652-12440 |
CE9#,EE9#..CTD,DX,L,STD 東海理化 |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-1218005 |
CE96,97,EE96,97,98..DX DARK BEIGE,TRIM4# |
1 | ||
| 84653-1218003 |
CE96,97,EE96,97,98..DX SHADOW GRAY,TRIM1# |
1 | ||
| 84653-1222004 |
CE96,EE96,98..DX DARK BLUE,TRIM8# |
1 | ||
| 84653-1222003 |
CE96,EE96,98..DX SHADOW GRAY,TRIM1# |
1 | ||
| 84653-32020 |
EE98..3FC,5F;CE96,EE96..DX..05S ﾊｲﾙ-ﾌ |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12120 |
EE90;CE90..4FC..DX;AE91,CE96,97,EE96,97..CTD,DX,GL,L,STD 2-ﾎﾞﾀﾝ |
1 | ||
| 84660-20100 |
CE96,97,EE96,97,98 1-ﾎﾞﾀﾝ |
1 | ||
| 84660-20090 |
EE90;CE90..4FC..DX;AE91,CE96,97,EE96,97,98..DX,GL,STD |
1 | ||
| 84660-12120 |
EE90;AE91,CE90,96,97,EE96,97..CTD,DX,GL,L,STD 2-ﾎﾞﾀﾝ |
1 | ||
| 84660-12130 |
CE96,EE96,97 1-ﾎﾞﾀﾝ |
1 | ||
| 84660-20090 |
CE96,97,EE9# |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AE9#,CE9#,EE9# 14V 0.08A |
1 | ||
| 84670 - SWITCH ASSY, REAR WIPER & DEFOGGER | ||||
| 84670-1201003 |
AE91,CE96,97,EE9#..(3D,5D,V,WG)..(DX,FXD,FXL,GL)..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 84670-1202003 |
AE91,92,CE96,97,EE96,97,98..(3D,5D,V,WG)..(DX,FXGTV,FXL,FXV,FXVS,GL,L,LT) SHADOW GRAY,TRIM1# |
1 | ||
| 84670-1202003 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S SHADOW GRAY,TRIM1# |
1 | ||
| 84670-1202004 |
AE91,92,CE96,97,EE96,97,98..(3D,V,WG)..(DX,FXGTV,FXV,FXVS,GL,L,LT) DARK BROWN,TRIM8# |
1 | ||
| 84670-1202004 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S DARK BROWN,TRIM8# |
1 | ||
| 84670-1201005 |
AE91,CE96,97,EE9#..(3D,5D,V,WG)..(DX,FXD,FXL,GL)..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12230 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# LEVER TYPE |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12230 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# LEVER TYPE |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# 14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1207003 |
AE91,CE9#,EE9#..DX,STD 2 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1207005 |
CE96,97,EE96,97,98..DX 2 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1207003 |
CE96,97,EE96,97,98..DX,STD 2 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206005 |
CE96,97,EE96,97,98..DX,GL 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1222005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,SE,TX,XE DARK BEIGE,TRIM4# |
1 | ||
| 84790-1222005 |
EE98..3FC..DX;CE96,EE96..DX..05S DARK BEIGE,TRIM4# |
1 | ||
| 84790-1228003 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1222003 |
AE91,95,CE9#,EE9#..DX,FXD,GL,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1222003 |
EE98..3FC..DX;CE96,EE96..DX..05S SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1228004 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S DARK BLUE,TRIM8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9#,CE9#,EE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9#,CE9#,EE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE9#,CE9#,EE9# |
1 | ||
| 85513-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90179-13003 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
(8905- )3D,4D,5D ; (8908- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80081 |
CE96,97,EE96,97,98 PLANT.A31-32 |
1 | ||
| 83320-80075 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.A31-32 |
1 | ||
| 83320-80075 |
CE96,97,EE96,97,98 PLANT.B11,K21,M12 |
1 | ||
| 83320-80075 |
CE90,96,97,EE9#..CTD,DX,GL,L,STD,TX,XE ｺｸｲﾝｷｺﾞｳ;12250,PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
CE9#,EE9# PLANT.A31-32 |
1 | ||
| 83320-80075 |
CE9#,EE9# PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
CE90,96,97,EE9#..CTD,DX,GL,L,STD,TX,XE ｺｸｲﾝｷｺﾞｳ;12290,PLANT.A31-A32 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80081 |
CE96,97,EE96,97,98 PLANT.A31-32 |
1 | ||
| 83320-80075 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.A31-32 |
1 | ||
| 83320-80075 |
CE96,97,EE96,97,98 PLANT.B11,K21,M12 |
1 | ||
| 83320-80075 |
CE90,96,97,EE9#..CTD,DX,GL,L,STD,TX,XE ｺｸｲﾝｷｺﾞｳ;12250,PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
CE9#,EE9# PLANT.A31-32 |
1 | ||
| 83320-80075 |
CE9#,EE9# PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
CE90,96,97,EE9#..CTD,DX,GL,L,STD,TX,XE ｺｸｲﾝｷｺﾞｳ;12290,PLANT.A31-A32 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE9#,CE9#,EE9# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
CE96,EE96..05S;AE9#,CE90,97,EE90,97,98..4D,5D,V,WG |
2 | ||
| 84231-16060 |
CE96,EE96..05S;AE9#,CE90,97,EE90,97,98..4D,5D,V,WG |
2 | ||
| 84231-16060 |
CE96,EE96..05S;AE9#,CE90,95,97,EE90,97,98..4D,5D,V,WG |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-22020 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,GL,L,LT) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-22020 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,GL,L,LT) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90159-60229 | ||||
| 90189-06048 | ||||
| 90430-08252 | ||||
| 90463-12570 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
(8905- )3D,4D,5D ; (8908- )V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-64290 |
1C..CE96;1C..CE90,97..5F |
1 | ||
| 28521-64291 |
1C..CE96;1C,2C..CE90,95,97..5F |
1 | ||
| 28521-64360 |
1C..CE96;1C,2C..CE90,95,97..5F |
1 | ||
| 28521-64390 |
1C..CE96;1C,2C..CE90,95,97..5F |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-64110 |
1C..CE96;1C,2C..CE90,95,97..5F |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE9#,CE9#,EE9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09005 |
AE91,CE96,97,EE96,97,98..CBR,DSL 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09002 |
AE91,CE96,97,EE96,97,98..CBR,DSL 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09005 |
AE91,CE96,97,EE96,97,98..CBR,DSL 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09002 |
AE91,CE96,97,EE96,97,98..CBR,DSL 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9#,CE9#,EE9# 30A |
1 | ||
| 82650-12020 |
EE98..4F;EE96..3FC..(DX,GL);AE91,CE96,97,EE97..(V,WG)..(CTD,DX,GL,L,LT,STD) 14A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE9#,CE9#,EE9# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02006 |
AE91,CE96,97,EE96,97,98..CBR,DSL HEAD |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89390-12010 |
CE9# |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06070 | ||||
| 91655-40616 | ||||
| 91655-60820 | ||||
| 93319-15010 | ||||
(8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80007 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84112-80005 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12210 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84140-12220 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84140-12320 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12800 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,L,STD,TX |
1 | ||
| 84310-12800 |
CE9#,EE9#..CTD,DX,L,STD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84312-12040 |
CE9#,EE90,97,98..DX,FXD,SE,STD,TX 東海理化 |
1 | ||
| 84312-12050 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84312-12040 |
AE9#,CE9#,EE9# 東海理化 |
1 | ||
| 84312-12050 |
CE9#,EE90,97,98..DX,FXD,SE,STD,TX MATSUSHITA |
1 | ||
| 84312-12040 |
AE91..FXVS,FXZS;AE9#,CE9#,EE9#..CBR,DSL,EFI 東海理化 |
1 | ||
| 84312-12050 |
AE91..FXVS,FXZS;AE9#,CE9#,EE9#..CBR,DSL,EFI MATSUSHITA |
1 | ||
| 84312-12050 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 84329-12010 |
AE9#,CE9#,EE9#..DX,FXD,FXG,FXGT,FXZI,G,GT,SE,STD,TX |
1 | ||
| 84329-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 84329-12010 |
AE91..FXVS,FXZS;AE9#,CE9#,EE9#..CBR,DSL,EFI |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12290 |
AE9#,CE9#,EE9# |
1 | ||
| 84332-12250 |
CE96,97,EE96,97,98 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE9#,CE9#,EE9# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12440 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,L,STD,TX 東海理化 |
1 | ||
| 84652-12430 |
CE9#,EE9#..CTD,DX,L,STD MATSUSHITA |
1 | ||
| 84652-12430 |
AE91,95,CE9#,EE9#..CTD,DX,FXD,L,STD,TX MATSUSHITA |
1 | ||
| 84652-12440 |
CE9#,EE9#..CTD,DX,L,STD 東海理化 |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-1218005 |
CE96,97,EE96,97,98..DX DARK BEIGE,TRIM4# |
1 | ||
| 84653-1218003 |
CE96,97,EE96,97,98..DX SHADOW GRAY,TRIM1# |
1 | ||
| 84653-1222004 |
CE96,EE96,98..DX DARK BLUE,TRIM8# |
1 | ||
| 84653-1222003 |
CE96,EE96,98..DX SHADOW GRAY,TRIM1# |
1 | ||
| 84653-32020 |
EE98..3FC,5F;CE96,EE96..DX..05S ﾊｲﾙ-ﾌ |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12120 |
EE90;CE90..4FC..DX;AE91,CE96,97,EE96,97..CTD,DX,GL,L,STD 2-ﾎﾞﾀﾝ |
1 | ||
| 84660-20100 |
CE96,97,EE96,97,98 1-ﾎﾞﾀﾝ |
1 | ||
| 84660-20090 |
EE90;CE90..4FC..DX;AE91,CE96,97,EE96,97,98..DX,GL,STD |
1 | ||
| 84660-12120 |
EE90;AE91,CE90,96,97,EE96,97..CTD,DX,GL,L,STD 2-ﾎﾞﾀﾝ |
1 | ||
| 84660-12130 |
CE96,EE96,97 1-ﾎﾞﾀﾝ |
1 | ||
| 84660-20090 |
CE96,97,EE9# |
1 | ||
| 84670 - SWITCH ASSY, REAR WIPER & DEFOGGER | ||||
| 84670-1201003 |
AE91,CE96,97,EE9#..(3D,5D,V,WG)..(DX,FXD,FXL,GL)..(CBR,DSL) SHADOW GRAY,TRIM1# |
1 | ||
| 84670-1202003 |
AE91,92,CE96,97,EE96,97,98..(3D,5D,V,WG)..(DX,FXGTV,FXL,FXV,FXVS,GL,L,LT) SHADOW GRAY,TRIM1# |
1 | ||
| 84670-1202003 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S SHADOW GRAY,TRIM1# |
1 | ||
| 84670-1202004 |
AE91,92,CE96,97,EE96,97,98..(3D,V,WG)..(DX,FXGTV,FXV,FXVS,GL,L,LT) DARK BROWN,TRIM8# |
1 | ||
| 84670-1202004 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S DARK BROWN,TRIM8# |
1 | ||
| 84670-1201005 |
AE91,CE96,97,EE9#..(3D,5D,V,WG)..(DX,FXD,FXL,GL)..(CBR,DSL) DARK BEIGE,TRIM4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12230 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# LEVER TYPE |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12230 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# LEVER TYPE |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE91..CBR;AE91..FXZI;AE92,95,CE9#,EE9# 14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1207003 |
AE91,CE9#,EE9#..DX,STD 2 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1207005 |
CE96,97,EE96,97,98..DX 2 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1207003 |
CE96,97,EE96,97,98..DX,STD 2 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206005 |
CE96,97,EE96,97,98..DX,GL 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-1207003 |
AE91,CE9#,EE9#..DX,STD 2 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1207005 |
CE96,97,EE96,97,98..DX 2 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1207003 |
CE96,97,EE96,97,98..DX,STD 2 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206003 |
AE91,95,CE9#,EE9# 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84763-1206005 |
CE96,97,EE96,97,98..DX,GL 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE 1 HOLE,DARK BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 84763-1206003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 1 HOLE,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-1222005 |
CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,SE,TX,XE DARK BEIGE,TRIM4# |
1 | ||
| 84790-1222005 |
EE98..3FC..DX;CE96,EE96..DX..05S DARK BEIGE,TRIM4# |
1 | ||
| 84790-1228003 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1222003 |
AE91,95,CE9#,EE9#..DX,FXD,GL,SE,STD,TX,XE SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1222003 |
EE98..3FC..DX;CE96,EE96..DX..05S SHADOW GRAY,TRIM1# |
1 | ||
| 84790-1228004 |
EE98..3FC..DX;CE96,EE96..(4F,4FC,5F)..DX..05S DARK BLUE,TRIM8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12250 |
AE9#,CE9#,EE9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE9#,CE9#,EE9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE9#,CE9#,EE9# |
1 | ||
| 85513-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE9#,CE9#,EE9# |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93567-55016 | ||||
(8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-64290 |
1C..CE96;1C..CE90,97..5F |
1 | ||
| 28521-64291 |
1C..CE96;1C,2C..CE90,95,97..5F |
1 | ||
| 28521-64360 |
1C..CE96;1C,2C..CE90,95,97..5F |
1 | ||
| 28521-64390 |
1C..CE96;1C,2C..CE90,95,97..5F |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-64110 |
1C..CE96;1C,2C..CE90,95,97..5F |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE9#,CE9#,EE9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09005 |
AE91,CE96,97,EE96,97,98..CBR,DSL 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09002 |
AE91,CE96,97,EE96,97,98..CBR,DSL 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09005 |
AE91,CE96,97,EE96,97,98..CBR,DSL 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09002 |
AE91,CE96,97,EE96,97,98..CBR,DSL 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE9#,CE9#,EE9# 30A |
1 | ||
| 82650-12020 |
EE98..4F;EE96..3FC..(DX,GL);AE91,CE96,97,EE97..(V,WG)..(CTD,DX,GL,L,LT,STD) 14A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE9#,CE9#,EE9# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02006 |
AE91,CE96,97,EE96,97,98..CBR,DSL HEAD |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06070 | ||||
| 90560-06201 | ||||
| 91655-40616 | ||||
| 93319-15010 | ||||
(8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80081 |
CE96,97,EE96,97,98 PLANT.A31-32 |
1 | ||
| 83320-80075 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.A31-32 |
1 | ||
| 83320-80075 |
CE96,97,EE96,97,98 PLANT.B11,K21,M12 |
1 | ||
| 83320-80075 |
CE90,96,97,EE9#..CTD,DX,GL,L,STD,TX,XE ｺｸｲﾝｷｺﾞｳ;12250,PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
CE9#,EE9# PLANT.A31-32 |
1 | ||
| 83320-80075 |
CE9#,EE9# PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
CE90,96,97,EE9#..CTD,DX,GL,L,STD,TX,XE ｺｸｲﾝｷｺﾞｳ;12290,PLANT.A31-A32 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80081 |
CE96,97,EE96,97,98 PLANT.A31-32 |
1 | ||
| 83320-80075 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
AE91,CE9#,EE9#..DX,FXD,FXL,GL,STD,TX,XE PLANT.A31-32 |
1 | ||
| 83320-80075 |
CE96,97,EE96,97,98 PLANT.B11,K21,M12 |
1 | ||
| 83320-80075 |
CE90,96,97,EE9#..CTD,DX,GL,L,STD,TX,XE ｺｸｲﾝｷｺﾞｳ;12250,PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
CE9#,EE9# PLANT.A31-32 |
1 | ||
| 83320-80075 |
CE9#,EE9# PLANT.B11,K21,M12 |
1 | ||
| 83320-80081 |
CE90,96,97,EE9#..CTD,DX,GL,L,STD,TX,XE ｺｸｲﾝｷｺﾞｳ;12290,PLANT.A31-A32 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE9#,CE9#,EE9# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84231-16060 |
AE9#,CE9#,EE9# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
CE96,EE96..05S;AE9#,CE90,97,EE90,97,98..4D,5D,V,WG |
2 | ||
| 84231-16060 |
CE96,EE96..05S;AE9#,CE90,97,EE90,97,98..4D,5D,V,WG |
2 | ||
| 84231-16060 |
CE96,EE96..05S;AE9#,CE90,95,97,EE90,97,98..4D,5D,V,WG |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
AE9#,CE9#,EE9# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE9#,CE9#,EE9# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-22020 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,GL,L,LT) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-22020 |
EE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,GL,L,LT) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50219 | ||||
| 90159-60081 | ||||
| 90159-60229 | ||||
| 90189-06048 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
(8705-8905)CE9# ; (8905-8908)CE96,97
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28560A - BLOCK, HEATER | ||||
| 28560-19015 |
1C..CE97..L;1C,2C..CE90,95,96;1C..CE97..5F..(DX,GL) |
1 | ||
| 28560-19015 |
1C..CE96;1C..CE97..5F |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64050 |
1C..CE96,97 MAIN |
1 | ||
| 28610-55040 |
1C..CE9# SUB |
1 | ||
| 28610-64080 |
1C,2C..CE9# MAIN |
1 | ||
| 28610-64050 |
1C..CE9# MAIN |
1 | ||
| 28610-55040 |
1C..CE96,97 SUB |
1 | ||
| 28610-64090 |
1C,2C..CE9# SUB |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64050 |
1C..CE96,97 MAIN |
1 | ||
| 28610-55040 |
1C..CE9# SUB |
1 | ||
| 28610-64080 |
1C,2C..CE9# MAIN |
1 | ||
| 28610-64050 |
1C..CE9# MAIN |
1 | ||
| 28610-55040 |
1C..CE96,97 SUB |
1 | ||
| 28610-64090 |
1C,2C..CE9# SUB |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
1C..CE9# |
1 | ||
| 28611-55010 |
1C..CE96,97 |
1 | ||
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
1C,2C..CE9# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64050 |
1C,2C..CE9# |
1 | ||
| 28624-64020 |
1C..CE9# |
1 | ||
| 28624-64020 |
1C..CE96,97 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09005 |
AE91,CE96,97,EE96,97,98..CBR,DSL 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09002 |
AE91,CE96,97,EE96,97,98..CBR,DSL 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09005 |
AE91,CE96,97,EE96,97,98..CBR,DSL 7.5A |
1 | ||
| 90982-09005 |
AE9#,CE9#,EE9# 7.5A |
1 | ||
| 90982-07011 |
EE96..GL;EE96..02S;AE9#,CE9#,EE90,97,98 30A,緑 |
1 | ||
| 90982-09002 |
AE9#,CE9#,EE9# 10A |
1 | ||
| 90982-09002 |
AE91,CE96,97,EE96,97,98..CBR,DSL 10A |
1 | ||
| 90982-07011 |
AE9#,CE9#,EE9# 30A,緑 |
1 | ||
| 90982-09003 |
AE91,CE96,97,EE96,97,98..CBR,DSL 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 90982-09003 |
AE9#,CE9#,EE9# 15A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82616-12010 |
AE9#,CE9#,EE9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82661-12140 |
AE9#,CE9#,EE9# 上側 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12080 |
AE91,92,CE9#..DSL,EFI |
1 | ||
| 82671-12080 |
AE9#,CE9#,EE9# |
1 | ||
| 82671-12080 |
AE9#,CE9#,EE90..DX,FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,GL,GT,SE,STD,TX,XE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12020 |
AE91,92,CE9#..DSL,EFI 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12020 |
CE96,97 上側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12020 |
AE91,92,CE9#..DSL,EFI 上側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12070 |
AE9#,CE9#,EE9# 下側 |
1 | ||
| 82672-12020 |
CE96,97 上側 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CE9# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AE92,CE9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CE9# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE91,95,CE9#,EE9#..MTM |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-12050 |
CE9# |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-12010 |
CE9# |
1 | ||
| 85909-12020 |
CE9# |
1 | ||
| 85909-12010 |
CE96,97 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE9#,CE9#,EE9# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE9#,CE9#,EE9# HEAD |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO,TAIL |
1 | ||
| 90987-02006 |
AE91,CE96,97,EE96,97,98..CBR,DSL HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE9#,CE9#,EE9# |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02006 |
CE9# |
1 | ||
| 90987-02006 |
CE96,97;CE90..4FC..DX |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AE9#,CE9#,EE9# MARUKO |
1 | ||
| 90987-02004 |
AE9#,CE9#,EE9# NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
EE90;EE96..3FC;AE91,CE90,96,97,EE97,98..CTD,DX,GL,L,STD |
1 | ||
| 88630-32010 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
2 | ||
| 90987-02004 |
EE90;EE96..3FC;AE91,CE90,96,97,EE97,98..CTD,DX,GL,L,STD |
2 | ||
| 90987-02004 |
EE90;CE90..4FC..DX;AE91,CE96,97,EE97,98..CTD,DX,GL,L,STD |
2 | ||
| 90987-02004 |
EE90;AE91,CE9#,EE97,98..DX,GL,STD |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
2 | ||
| 90987-02004 |
EE90;EE96..3FC;AE91,CE90,96,97,EE97,98..CTD,DX,GL,L,STD |
2 | ||
| 90987-02004 |
EE90;CE90..4FC..DX;AE91,CE96,97,EE97,98..CTD,DX,GL,L,STD |
2 | ||
| 90987-02004 |
EE90;AE91,CE9#,EE97,98..DX,GL,STD |
2 | ||
| 89427E - SWITCH, TEMPERATURE (FOR HEATER IDLE UP) | ||||
| 89427-12051 |
CE9# |
1 | ||
| 89427-12051 |
CE9# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15030 |
CE9# |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
CE96,97 |
1 | ||
| 89422-20010 |
CE9# |
1 | ||
| 89422-30020 |
CE9# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 82711-22220 | ||||
| 90119-06171 | ||||
| 90179-05015 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 92132-40632 | ||||
| 94613-10601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
