CE95-AEMES (1989)

Toyota Corolla

Production Oct 1989 - Jun 1991
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )CE95 ; (9008- )AE95..5F

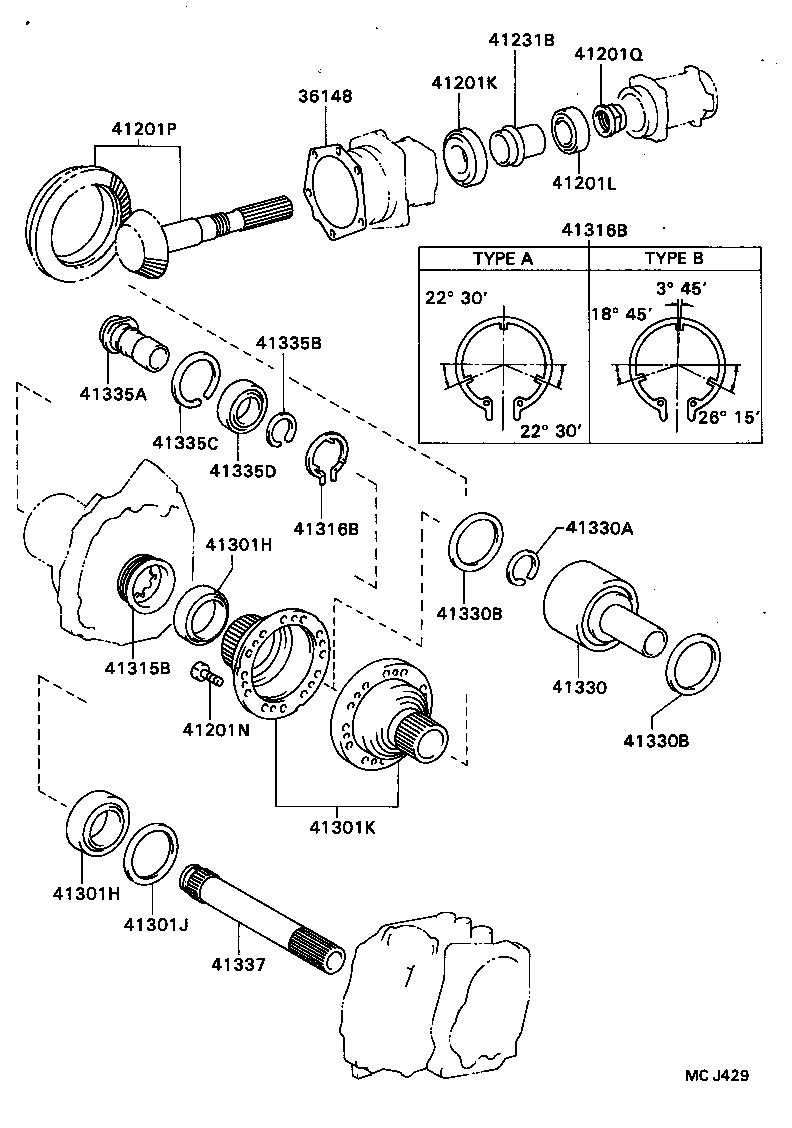

Click highlighted areas on diagram

E59F,E55F ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ)

diagram 36148 41201K 41201L 41201N 41201P 41201Q 41231B 41301H 41301H 41301J 41301K 41315B 41316B 41316B 41330 41330A 41330B 41330B 41335A 41335B 41335C 41335D 41337
Part # Description Qty Price
41201P - GEAR KIT, TRANSFER
41201-12170

CE95

 1
41301H - BEARING(FOR RING GEAR MOUNTING CASE)
90366-58007

CE95

左側

 1
90366-55039

CE95

右側

 1
41301H - BEARING(FOR RING GEAR MOUNTING CASE)
90366-58007

CE95

左側

 1
90366-55039

CE95

右側

 1
41301K - CASE SUB-ASSY, CENTER DIFFERENTIAL RING GEAR MOUNTING
41301-12160

CE95

 1
41301-12160

AE95,CE95..5F

 1
41315B - NUT, BEARING ADJUSTING
41315-12050

CE95

 1
41330 - COUPLING ASSY, CENTER DIFFERENTIAL CONTROL
41330-20010

CE95

 1
41330-20010

AE95,CE95..5F

 1
41330A - RING, HOLE SNAP (FOR DIFFERENTIAL INTERMEDIATE SHAFT)
90521-41004

CE95

 1
90521-41004

AE95,CE95..5F

 1
41330B - WASHER (FOR CENTER DIFFERENTIAL CONTROL COUPLING)
90209-69001

AE95,CE95..5F

 2
90209-69001

CE95

 2
41330B - WASHER (FOR CENTER DIFFERENTIAL CONTROL COUPLING)
90209-69001

AE95,CE95..5F

 2
90209-69001

CE95

 2
41335D - BEARING (FOR SIDE GEAR SHAFT HOLDER)
90365-44006

AE95,CE95

 1
90365-44005

AE95,CE95..5F

 1
41337 - SHAFT, DIFFERENTIAL SIDE GEAR INTERMEDIATE, NO.2
41337-12010

AE95,CE95..5F

 1
41337-12010

CE95

 1
