CE90-AEPNS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8905-8908)CE90 ; (8908- )CE9#

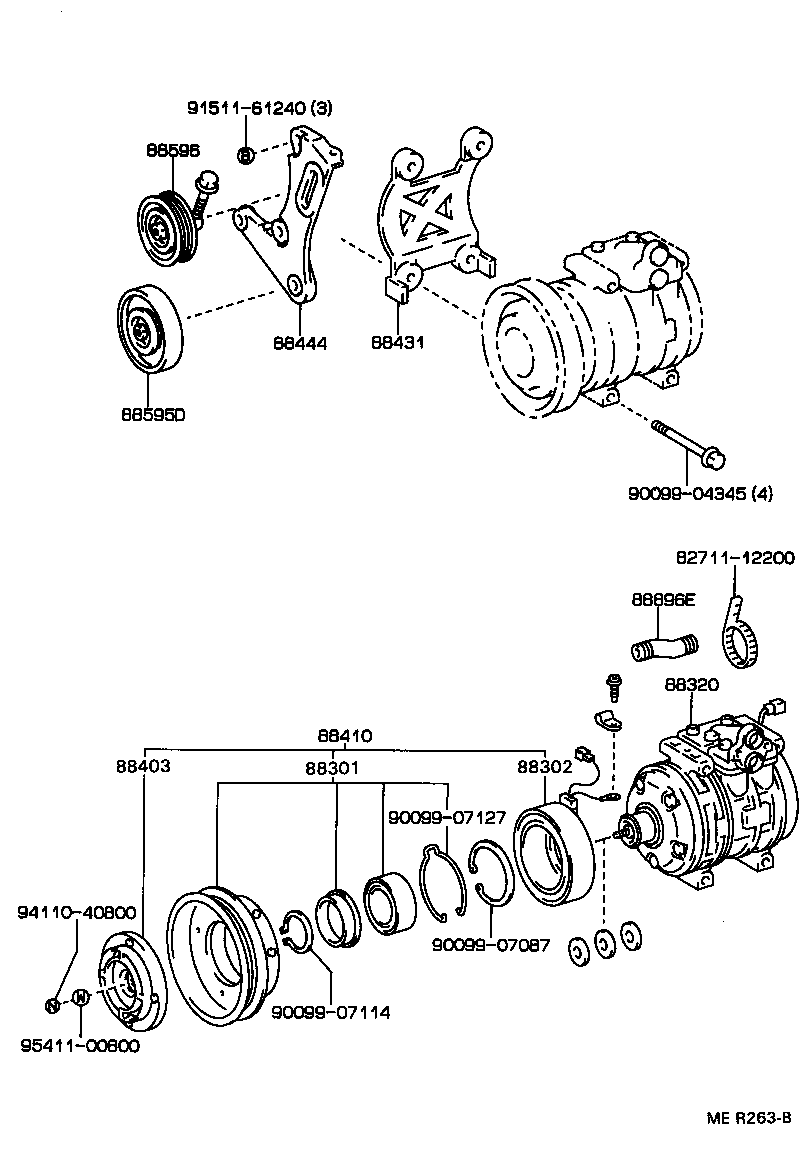

Click highlighted areas on diagram

diagram 8271112200 88301 88302 88320 88403 88410 88431 88444 88595D 88596 88896E 9009904345 9009907087 9009907114 9009907127 9151161240 9411040800 9541100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-32011

CE95;CE90..SE,XE

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

CE95;CE90..SE,XE

 1
88320 - COMPRESSOR ASSY, COOLER
88320-12610

CE90..XE

 1
88320-12610

CE90..5F..SE;CE90..4FC..(SE,XE)

 1
88320-12610

CE95;CE90..SE,XE

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

CE95;CE90..SE,XE

 1
88410 - CLUTCH ASSY, MAGNET
88410-12160

CE90..XE

 1
88410-12160

CE90..SE,XE

 1
88410-12340

CE95;CE90..SE,XE

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12470

CE90,95..SE,TX,XE

 1
Common parts
82711-12200
90099-04345
90099-07087
90099-07114
90099-07127
91511-61240
94110-40800
95411-00800

(8705-8905)CE90 ; (8905-8908)CE96,97

Click highlighted areas on diagram

diagram 8271112200 88301 88302 88320 88403 88410 88444 88446 88595D 88896E 8889920090 9009904520 9009907087 9009907114 9009907127 9161160825 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-32011

CE95;CE90..SE,XE

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

CE95;CE90..SE,XE

 1
88320 - COMPRESSOR ASSY, COOLER
88320-12610

CE90..XE

 1
88320-12610

CE90..5F..SE;CE90..4FC..(SE,XE)

 1
88320-12610

CE95;CE90..SE,XE

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

CE95;CE90..SE,XE

 1
88410 - CLUTCH ASSY, MAGNET
88410-12160

CE90..XE

 1
88410-12160

CE90..SE,XE

 1
88410-12340

CE95;CE90..SE,XE

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
Common parts
82711-12200
88899-20090
90099-04520
90099-07087
90099-07114
90099-07127
91611-60825
94110-40800
94511-00800
