CE90-AEPDS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

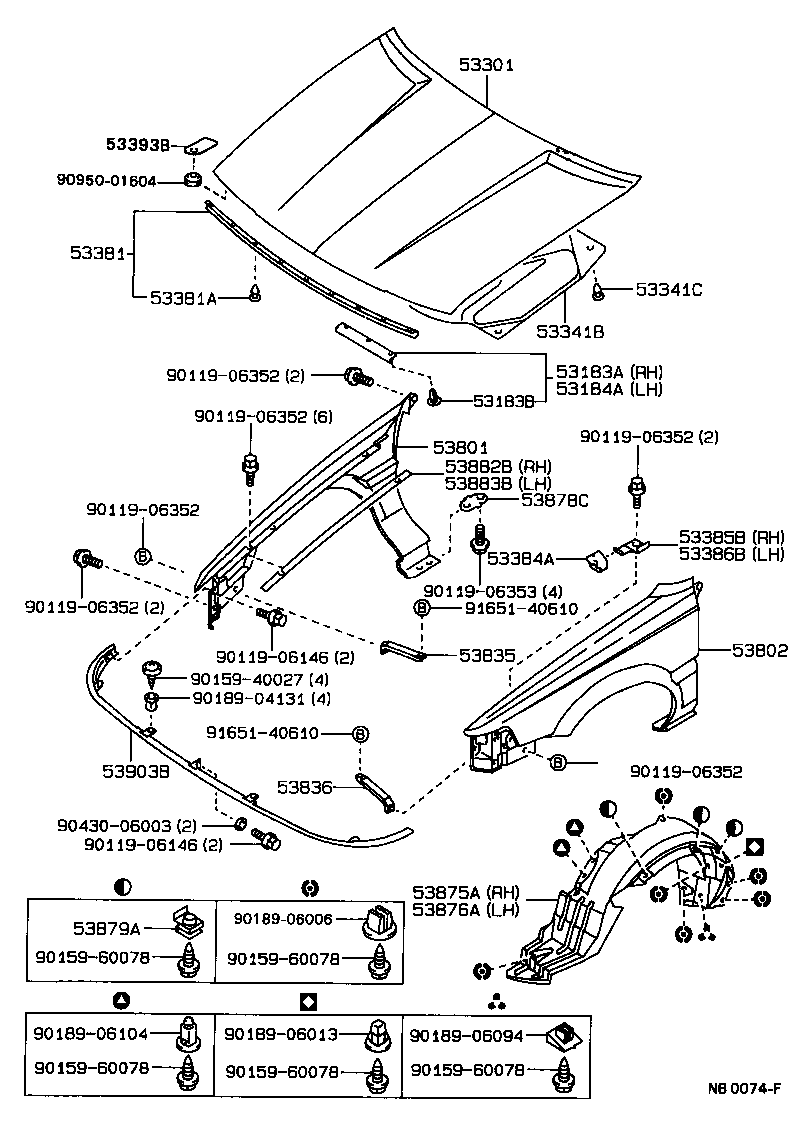

Click highlighted areas on diagram

diagram 53183A 53183B 53184A 53301 53341B 53341C 53381 53381A 53384A 53385B 53386B 53393B 53801 53802 53835 53836 53875A 53876A 53878C 53879A 53882B 53883B 53903B 9011906146 9011906146 9011906352 9011906352 9011906352 9011906352 9011906352 9011906352 9011906353 9015940027 9015960078 9015960078 9015960078 9015960078 9015960078 9018904131 9018906006 9018906013 9018906094 9018906104 9043006003 9095001604 9165140610 9165140610
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-12560

AE92,CE90..4D

 1
53341B - INSULATOR, HOOD
53341-12040

CE9#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

CE9#

 10
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-12140

AE9#,CE9#,EE9#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AE9#,CE9#,EE9#

 9
53384A - BUMPER, FENDER TO HOOD
53384-12040

AE9#,CE9#,EE9#..4D,V,WG

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-12020

AE9#,CE9#,EE9#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-12020

AE9#,CE9#,EE9#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-1E390

EE90..XE;CE90..TX,XE;AE91..4F..XE;AE95,CE97,EE97..GL,TX

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53801-1E410

AE9#,CE90,97,EE90,97..G,GL,GT,SE,TX,XE

 1
53801-1E410

AE91,95,CE90,95,97,EE90,97..G,GL,L,LT,TX

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-1A810

EE90..XE;CE90..TX,XE;AE91..4F..XE;AE95,CE97,EE97..GL,TX

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-1E290

AE9#,CE90,97,EE90,97..G,GL,GT,SE,TX,XE

 1
53802-1E290

AE91,95,CE90,95,97,EE90,97..G,GL,L,LT,TX

 1
53835 - BRACE, FRONT FENDER TO EXTENSION, RH
53835-12050

AE9#,CE9#,EE9#

 1
53836 - BRACE, FRONT FENDER TO EXTENSION, LH
53835-12050

AE9#,CE9#,EE9#

 1
53875A - LINER, FRONT FENDER, RH
53875-12150

AE9#,CE9#,EE9#

 1
53876A - LINER, FRONT FENDER, LH
53876-12140

AE9#,CE9#,EE9#

 1
53878C - SPACER, FRONT FENDER
53878-20030

AE9#,CE9#,EE9#

 2
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AE9#,CE9#,EE9#

 4
53882B - SEAL, FRONT FENDER, RH
53882-12080

AE9#,CE9#,EE9#

 1
53883B - SEAL, FRONT FENDER, LH
53882-12080

AE9#,CE9#,EE9#

 1
53903B - PANEL SUB-ASSY, FRONT END
53903-12030

CE97,EE97..L;AE9#,CE90,95,EE90..4D,WG

 1
Common parts
90119-06146
90119-06352
90119-06353
90159-40027
90159-60078
90189-04131
90189-06006
90189-06013
90189-06094
90189-06104
90430-06003
90950-01604
91651-40610
