CE90-AEPDS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )1C..4FC

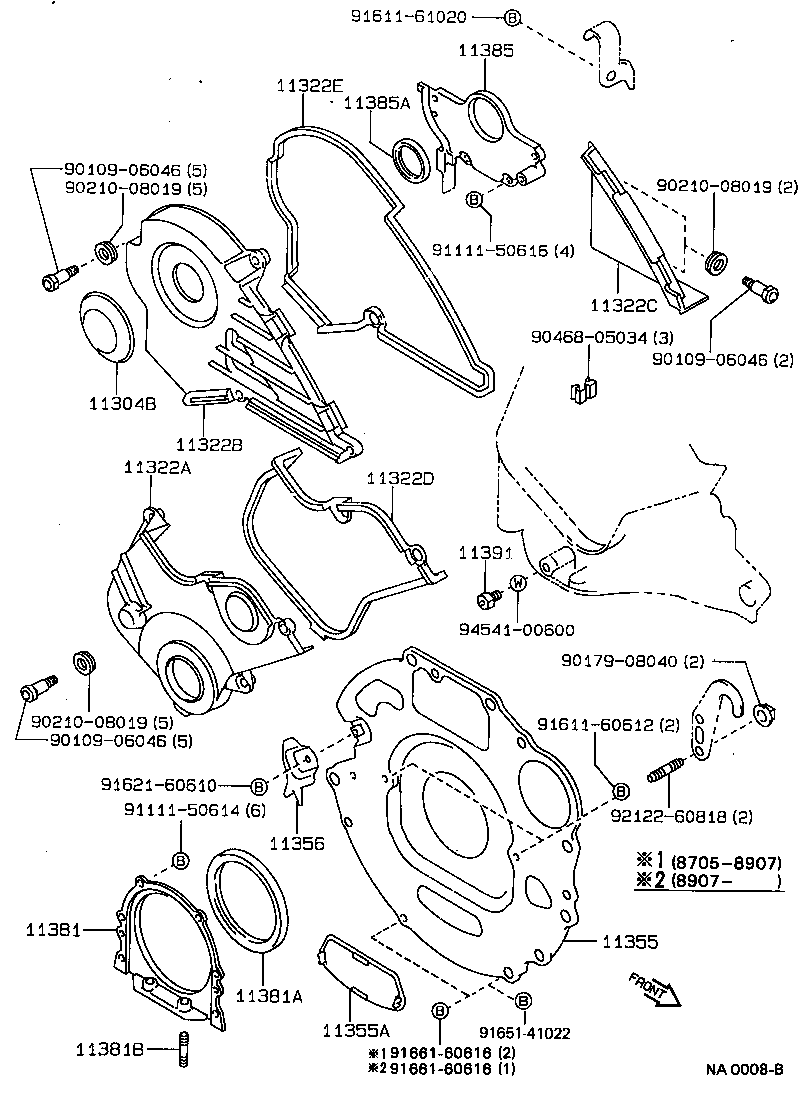

Click highlighted areas on diagram

diagram 11304B 11322A 11322B 11322C 11322D 11322E 11355 11355A 11356 11381 11381A 11381B 11385 11385A 11391 9010906045 9010906046 9010906046 9017908040 9021008019 9021008019 9021008019 9046805034 9111150614 9111150616 9161160612 9161161020 9162160610 9165141022 9166160616 9166160616 9212260818 9454100600
Part # Description Qty Price
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01357

1C,2C..CE9#

外径=64

 1
11322A - COVER, TIMING BELT, NO.1
11321-64010

1C..CE9#

 1
11322B - COVER, TIMING BELT, NO.2
11322-64010

1C,2C..CE9#

 1
11322C - COVER, TIMING BELT, NO.3
11323-64011

1C,2C..CE9#

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-64040

1C..CE90

 1
11328-64020

1C..CE9#

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-64020

1C,2C..CE9#

 1
11355 - PLATE, REAR END
11355-64060

1C..CE9#..4FC

 1
11355-64042

1C..CE9#..4FC

 1
11355-64042

1C..CE9#..4FC

 1
11355-64042

1C..CE90..4FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01548

1C..CE9#..4FC

 1
11356 - PLATE, REAR END, NO.2
11356-64010

1C..CE90

 1
11356-64040

1C..CE9#

 1
11356-64010

1C..CE9#

 1
11356-64010

1C..CE9#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-64012

1C,2C..CE9#

 1
11381A - SEAL, ENGINE REAR OIL
90311-90003

1C,2C..CE9#

 1
90311-90003

1C..CE9#

 1
90311-90005

1C,2C..CE9#

 2
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06033

1C,2C..CE9#

 2
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-64011

1C,2C..CE9#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38025

1C,2C..CE9#

 1
11391 - POINTER, TIMING
11391-64010

1C..CE90

 1
11391-64020

1C..CE9#

 1
Common parts
90109-06045
90109-06046
90179-08040
90210-08019
90468-05034
91111-50614
91111-50616
91611-60612
91611-61020
91621-60610
91651-41022
91661-60616
92122-60818
94541-00600
