CE90-AEMDS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4D,V,WG

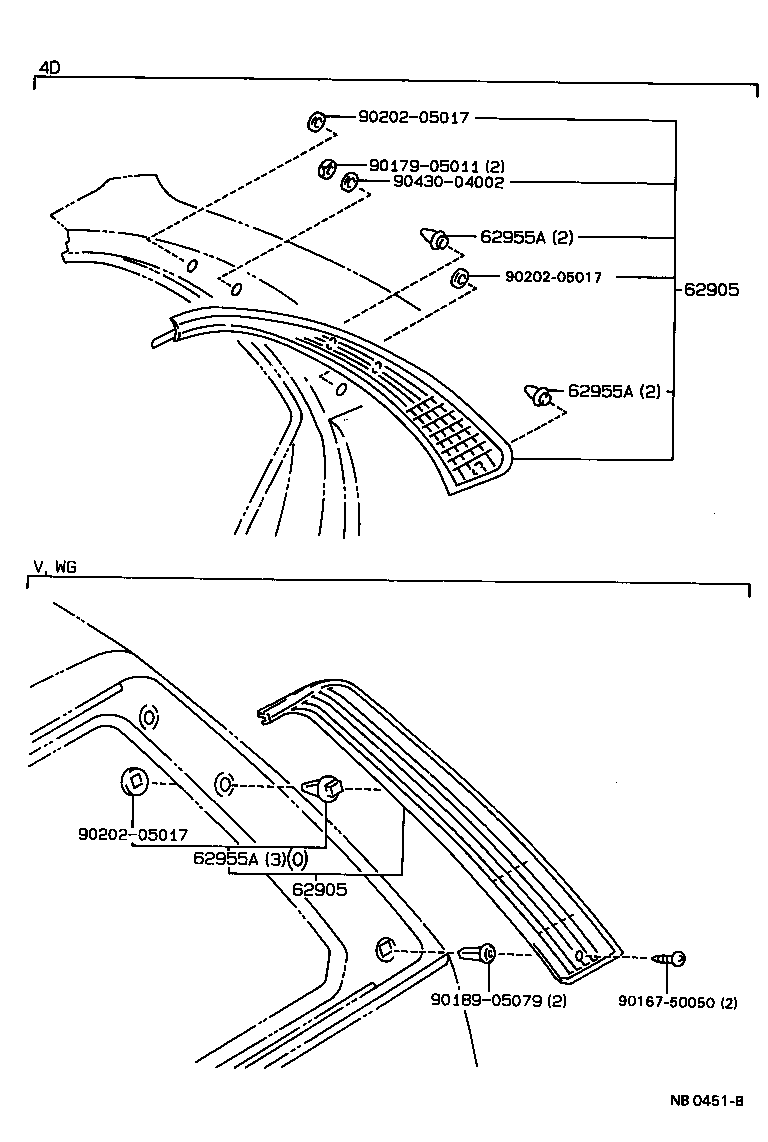

Click highlighted areas on diagram

diagram 62905 62905 62955A 62955A 62955A 9016750050 9017905011 9018905079 9020205017 9020205017 9020205017 9043004002
Part # Description Qty Price
62905 - LOUVER, QUARTER VENTILATION
62905-12310

AE9#,CE90,95,EE90..GT,SE,TX,XE

右側

 1
62906-12310

AE9#,CE90,95,EE90..GT,SE,TX,XE

左側

 1
62905 - LOUVER, QUARTER VENTILATION
62905-12310

AE9#,CE90,95,EE90..GT,SE,TX,XE

右側

 1
62906-12310

AE9#,CE90,95,EE90..GT,SE,TX,XE

左側

 1
62955A - RETAINER, QUARTER VENT LOUVER
62955-12020

AE9#,CE90,EE90..4D

 4
62955A - RETAINER, QUARTER VENT LOUVER
62955-12020

AE9#,CE90,EE90..4D

 4
62955A - RETAINER, QUARTER VENT LOUVER
62955-12020

AE9#,CE90,EE90..4D

 4
Common parts
90167-50050
90179-05011
90189-05079
90202-05017
90430-04002
