CE90-AEMDS (1987)
Toyota Corolla

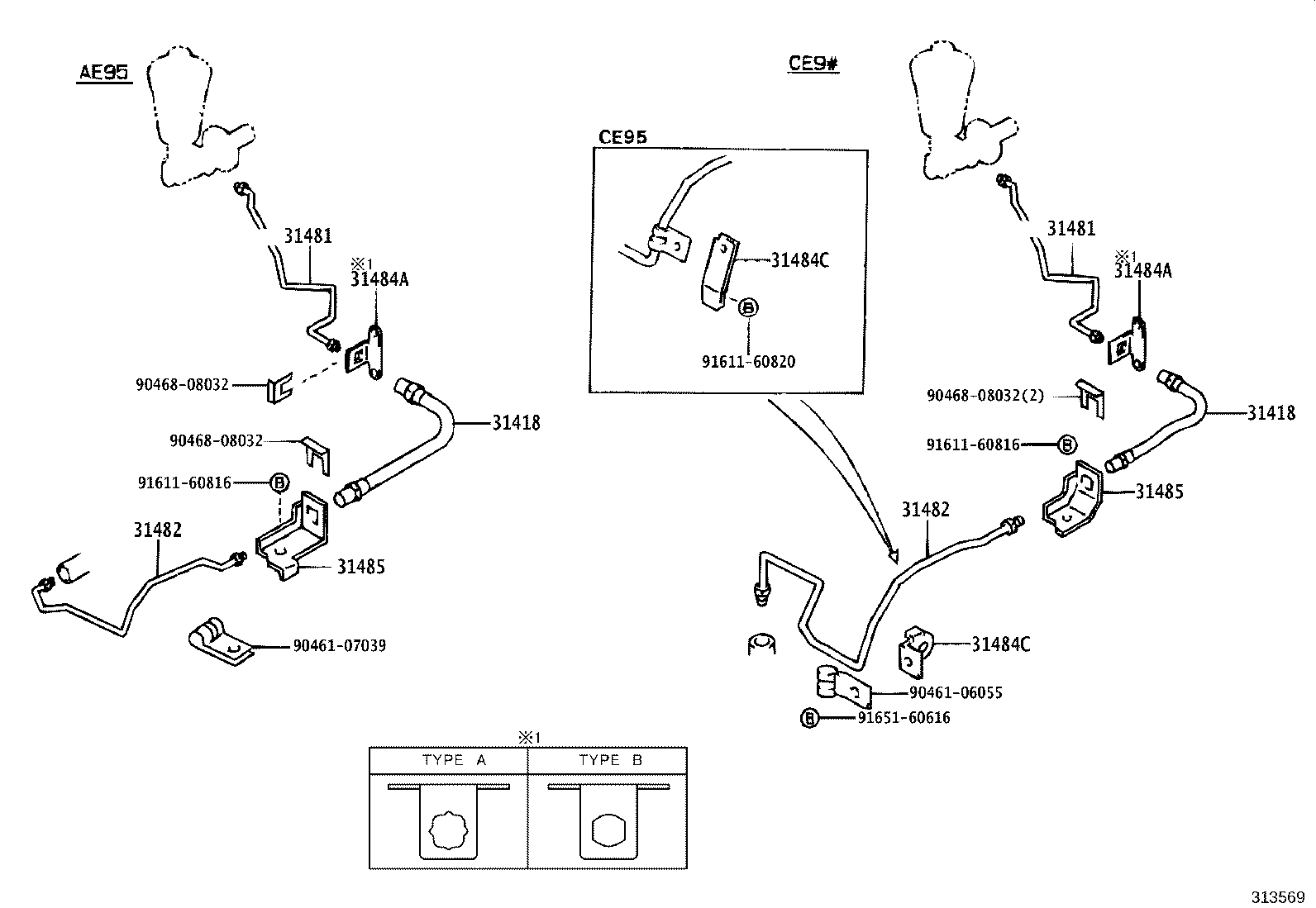

ILLUST NO. 2 OF 2(8705- )AE95,CE9#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 96816-50295 |
AE95,CE9#..5F PNC 31484A=TYPE A |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 96816-50295 |
AE95,CE9#..5F PNC 31484A=TYPE A |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12180 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31481-12181 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31481-12200 |
AE9#,CE90,EE90..(3D,4D,5D)..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12180 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31481-12181 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31481-12200 |
AE9#,CE90,EE90..(3D,4D,5D)..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-32020 |
CE9#..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-32020 |
CE9#..5F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-12050 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31484-12170 |
AE9#,CE9#,EE9#..MTM TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-12050 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31484-12170 |
AE9#,CE9#,EE9#..MTM TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-32050 |
CE90,96,97..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-32050 |
CE90,96,97..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-32020 |
CE9#..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-32020 |
CE9#..5F |
1 | ||
| Common parts | ||||
| 90461-06055 | ||||
| 90461-07039 | ||||
| 90468-08032 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-60616 | ||||
ILLUST NO. 1 OF 2(8705- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12330 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-14002 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AE9#,CE9#,EE9#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
AE9#,CE9#,EE9#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94120-41000 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12030 |
AE9#,CE90,EE90..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10015 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AE9#,CE9#,EE9#..MTM 長さ=23.5 |
1 | ||
| 90240-08006 |
AE9#,CE9#,EE9#..MTM 長さ=23.5 |
1 | ||
| 90240-08006 |
AE9#,CE9#,EE9#..MTM 長さ=23.5 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
AE9#,CE9#,EE9#..MTM 長さ=23.5 |
1 | ||
| 90240-08006 |
AE9#,CE9#,EE9#..MTM 長さ=23.5 |
1 | ||
| 90240-08006 |
AE9#,CE9#,EE9#..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-12110 |
AE9#,CE9#,EE9#..MTM |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91655-60820 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
