CE90-AEMDS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )1C,2C

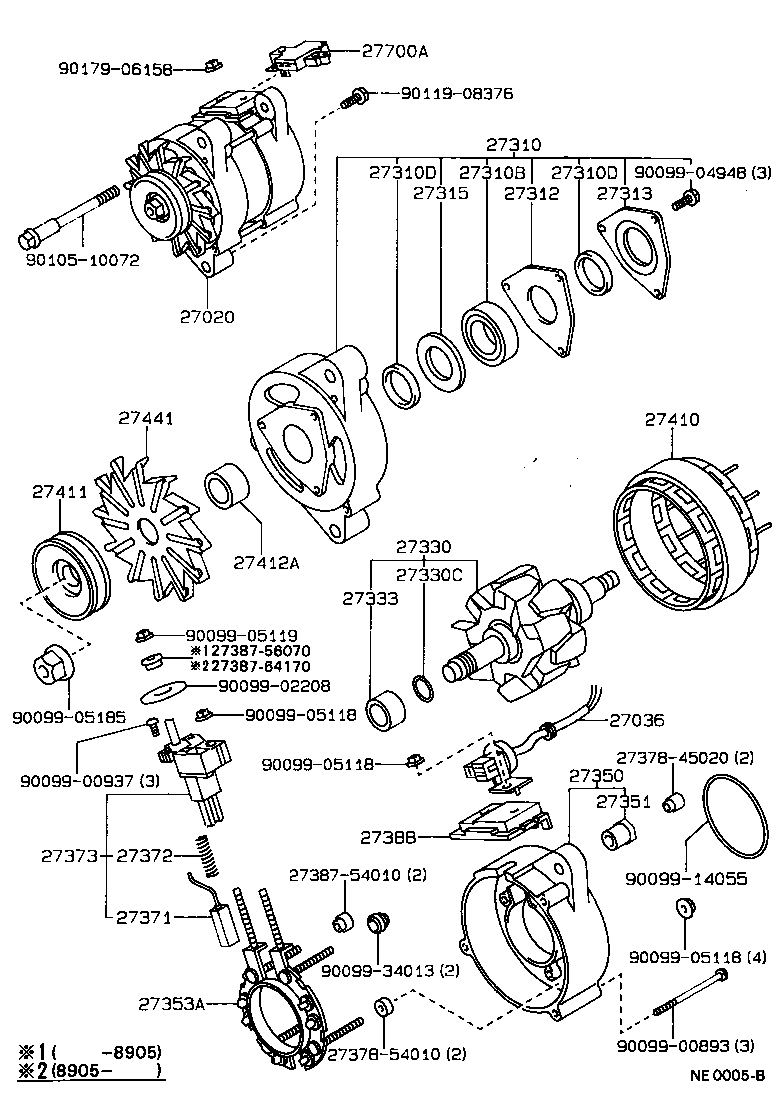

Click highlighted areas on diagram

12V 60A

diagram 27020 27036 27310 27310B 27310D 27310D 27312 27313 27315 27330 27330C 27333 27350 27351 27353A 27371 27372 27373 2737845020 2737854010 2738754010 2738756070 2738764170 27388 27410 27411 27412A 27441 27700A 9009900893 9009900937 9009902208 9009904948 9009905118 9009905118 9009905118 9009905119 9009905185 9009914055 9009934013 9010510072 9011908376 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-64180

1C..CE90,96..5F

12V 60A

 1
27020-64210

1C,2C..CE9#

12V 60A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-64170

1C,2C..CE9#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-64060

1C,2C..CE9#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

1C,2C..CE9#

 1
27310D - WASHER, FELT
90099-02209

1C,2C..CE9#

 2
27310D - WASHER, FELT
90099-02209

1C,2C..CE9#

 2
27312 - PLATE, RETAINER
27312-57060

1C,2C..CE9#

 1
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

1C,2C..CE9#

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

1C,2C..CE9#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64170

1C,2C..CE9#

 1
27330C - RING, SNAP
90099-07103

1C,2C..CE9#

 1
27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR)
27333-57060

1C,2C..CE9#

 1
27350 - FRAME ASSY, RECTIFIER END
27350-64060

1C,2C..CE9#

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-64060

1C,2C..CE9#

 1
27353A - HOLDER, W/RECTIFIER
27353-64170

1C..CE9#

 1
27371 - BRUSH, ALTERNATOR
27371-56070

1C,2C..CE9#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

1C,2C..CE9#

 2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-64170

1C,2C..CE9#

 1
27388 - COVER, ALTERNATOR BRUSH
27388-64170

1C,2C..CE9#

 1
27410 - STATOR ASSY, ALTERNATOR
27410-43040

1C,2C..CE9#

 1
27411 - PULLEY, ALTERNATOR
27411-64060

1C..CE90,96..5F

 1
27411-64210

1C,2C..CE9#

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-64060

1C,2C..CE9#

 1
27441 - FAN, ALTERNATOR
27441-64060

1C,2C..CE9#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-64040

1C,2C..CE9#

 1
Common parts
27378-45020
27378-54010
27387-54010
27387-56070
27387-64170
90099-00893
90099-00937
90099-02208
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90099-34013
90105-10072
90119-08376
90179-06158
