CE90-AEMBS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )CE9#

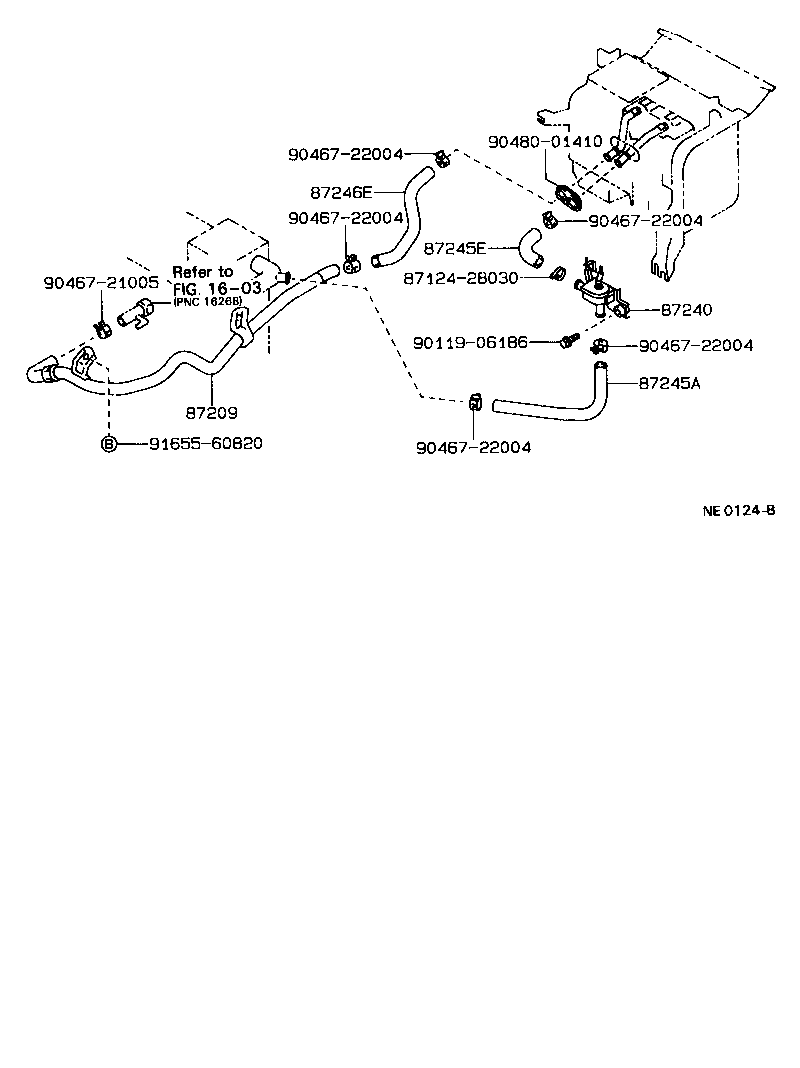

Click highlighted areas on diagram

diagram 1603 8712428030 87209 87240 87245A 87245E 87246E 9011906186 9046721005 9046722004 9046722004 9046722004 9046722004 9046722004 9048001410 9165560820
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-12400

CE9#

 1
87240 - VALVE ASSY, HEATER WATER
87240-12230

AE9#,CE9#,EE9#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-1A170

CE9#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1A300

AE9#,CE90,EE90..3D,4D,5D

 1
87245-1A300

AE9#,CE9#,EE9#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1A250

CE90,96,97

 1
Common parts
87124-28030
90119-06186
90467-21005
90467-22004
90480-01410
91655-60820
Linked diagrams
1603
