CE90-AEMBS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

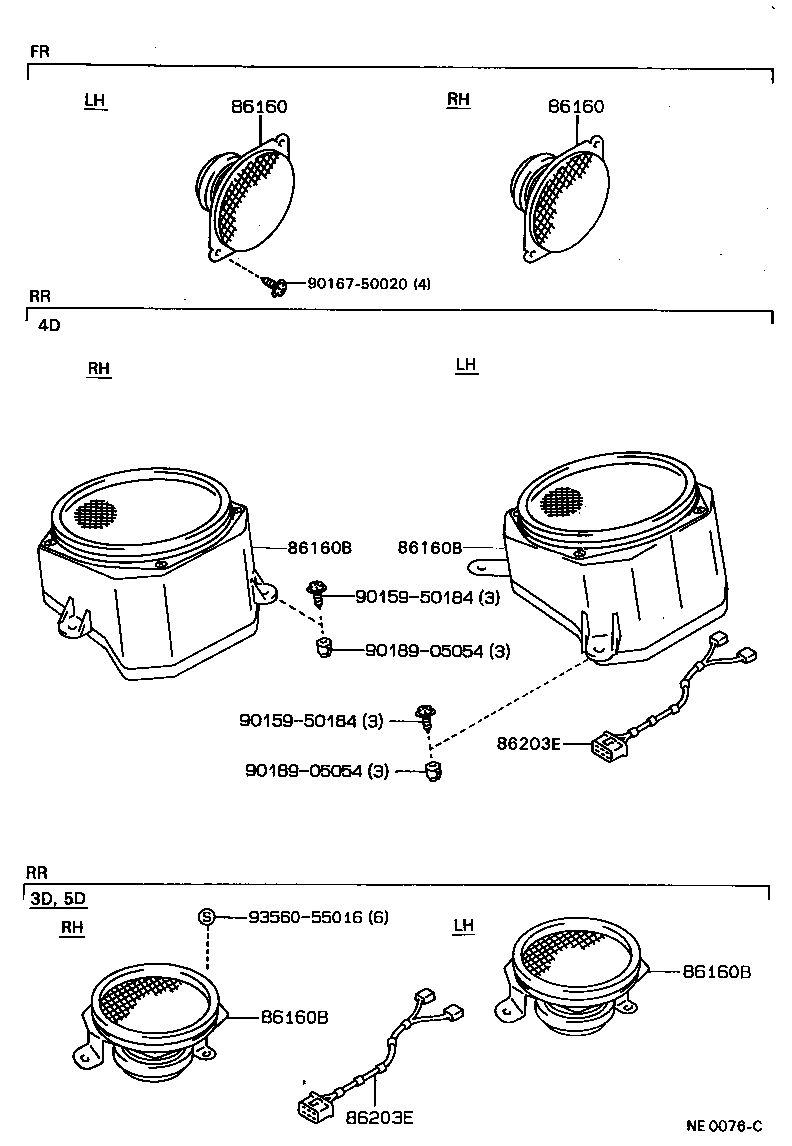

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86160B 86160B 86203E 86203E 9015950184 9015950184 9016750020 9018905054 9018905054 9356055015
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-12280

EE90..FXD,FXL,TX,XE;AE91,CE90..DX,FXG,FXL,TX,XE

TEN

 1
86160-12280

EE90..TX,XE;AE91,CE90..DX,FXG,FXL,TX,XE

TEN

 2
86160-12290

AE9#,CE9#,EE9#

PIONEER

 1
86160-12280

EE90..TX,XE;AE91,95,CE90..DX,FXG,FXL,TX,XE

TEN

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-12280

EE90..FXD,FXL,TX,XE;AE91,CE90..DX,FXG,FXL,TX,XE

TEN

 1
86160-12280

EE90..TX,XE;AE91,CE90..DX,FXG,FXL,TX,XE

TEN

 2
86160-12290

AE9#,CE9#,EE9#

PIONEER

 1
86160-12280

EE90..TX,XE;AE91,95,CE90..DX,FXG,FXL,TX,XE

TEN

 2
86203E - WIRE, STEREO COMPONENT SPEAKER, NO.1
86205-12010

AE91..FXZI;AE92,95,CE90;EE90..FXD,FXL,TX,XE;AE91..(3D,4D,5D)..CBR

 1
86203E - WIRE, STEREO COMPONENT SPEAKER, NO.1
86205-12010

AE91..FXZI;AE92,95,CE90;EE90..FXD,FXL,TX,XE;AE91..(3D,4D,5D)..CBR

 1
Common parts
90159-50184
90167-50020
90189-05054
93560-55015
