CE90-AEMBS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )4D

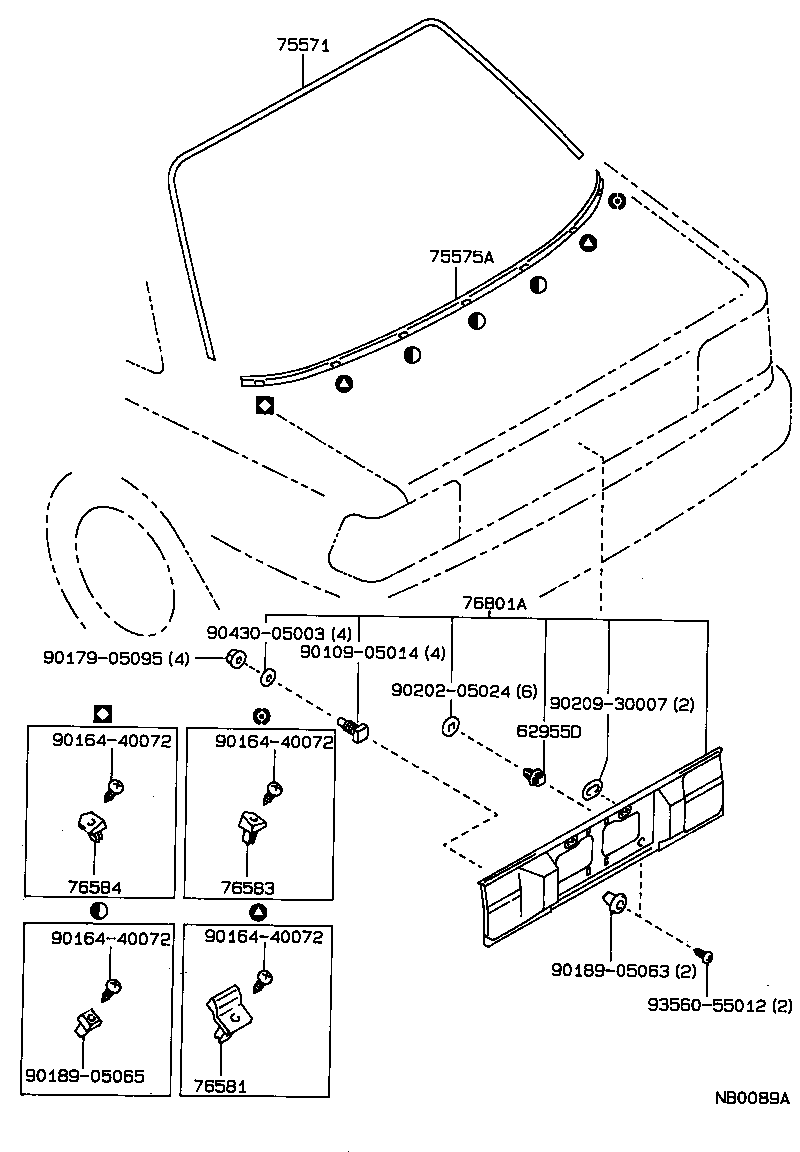

Click highlighted areas on diagram

diagram 62955D 75571 75575A 76581 76583 76584 76801A 9010905014 9016440072 9016440072 9016440072 9016440072 9017905095 9018905063 9018905065 9020205024 9020930007 9043005003 9356055012
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12270

AE91,95,CE90,95,EE90..DX,TX

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-12210

AE91,95,CE90,95,EE90..DX,TX

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-12010

AE9#,CE90,95,EE90..4D

 2
76583 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH
76583-12030

AE9#,CE90,95,EE90..4D

 1
76584 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, LH
76584-12010

AE9#,CE90,95,EE90..4D

 1
Common parts
90109-05014
90164-40072
90179-05095
90189-05063
90189-05065
90202-05024
90209-30007
90430-05003
93560-55012
