CE90-AEMBS (1987)

Toyota Corolla

Production May 1987 - Jun 1991
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8705- )

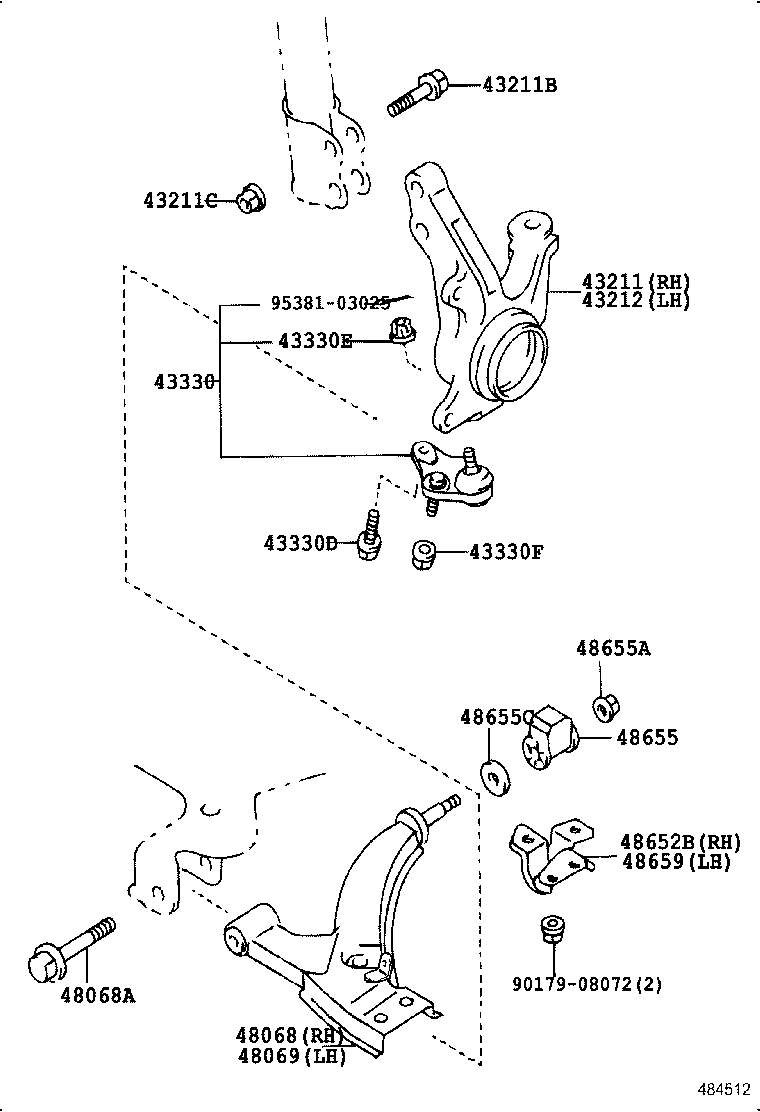

Click highlighted areas on diagram

diagram 43211 43211B 43211C 43212 43330 43330D 43330E 43330F 48068 48068A 48069 48652B 48655 48655A 48655C 48659 9017908072 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-12090

AE91,92,CE90,96,97,EE9#

 1
43211-12100

AE91,92,CE9#,EE9#

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
43211B - BOLT (FOR ABSORBER SETTING)
90105-15001

AE9#,CE9#,EE96,97,98

 4
90105-15001

AE9#,CE9#,EE9#

 4
43211C - NUT (FOR ABSORBER SETTING)
90179-15001

AE9#,CE9#,EE96,97,98

 4
90179-15001

AE9#,CE9#,EE9#

 4
43212 - KNUCKLE, STEERING, LH
43212-12050

EE90;AE91..(DX,FXG,FXL,G,TX)..CBR;AE91..(DX,FXG,FXL,FXV,LT,TX)..EFI;AE92,CE90,96,97,EE96,97,98..CTD,DX,FXGTV,GL,L,STD,TX

 1
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-19065

AE9#,CE9#,EE9#

右側

 1
43340-19015

AE9#,CE9#,EE9#

左側

 1
43330D - BOLT (FOR FRONT LOWER BALL JOINT)
90105-12156

AE9#,CE9#,EE9#

 2
43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
90179-14015

AE9#,CE9#,EE9#

 2
90171-14003

AE9#,CE9#,EE96,97,98

 2
90171-14003

AE9#,CE9#,EE9#

 2
43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING)
90179-12070

AE9#,CE9#,EE9#

 4
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-12110

AE9#,CE9#,EE9#

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90119-14023

AE9#,CE9#,EE9#

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-12110

AE9#,CE9#,EE9#

 1
48652B - BRACKET, FRONT LOWER ARM, RH
48652-12010

AE92,95,CE9#;AE91,EE90..(4F,4FC,5F)..(DX,FXZI);AE91,EE90..(FXD,FXG,FXL,SE,TX,XE)..CBR

 1
48655 - BUSH, LOWER ARM, NO.2
48655-12010

AE9#,CE9#,EE9#

 2
48655A - NUT(FOR SUSPENSION LOWER ARM BUSH NO.2)
90179-14006

AE9#,CE9#,EE9#

 2
48655C - RETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.
90948-02061

AE9#,CE9#,EE9#

 2
48659 - BRACKET, FRONT LOWER ARM, LH
48659-12010

AE92,95,CE9#;AE91,EE90..(4F,4FC,5F)..(DX,FXZI);AE91,EE90..(FXD,FXG,FXL,SE,TX,XE)..CBR

 1
Common parts
90179-08072
95381-03025
