CE80-ELPSS (1984)
Toyota Corolla

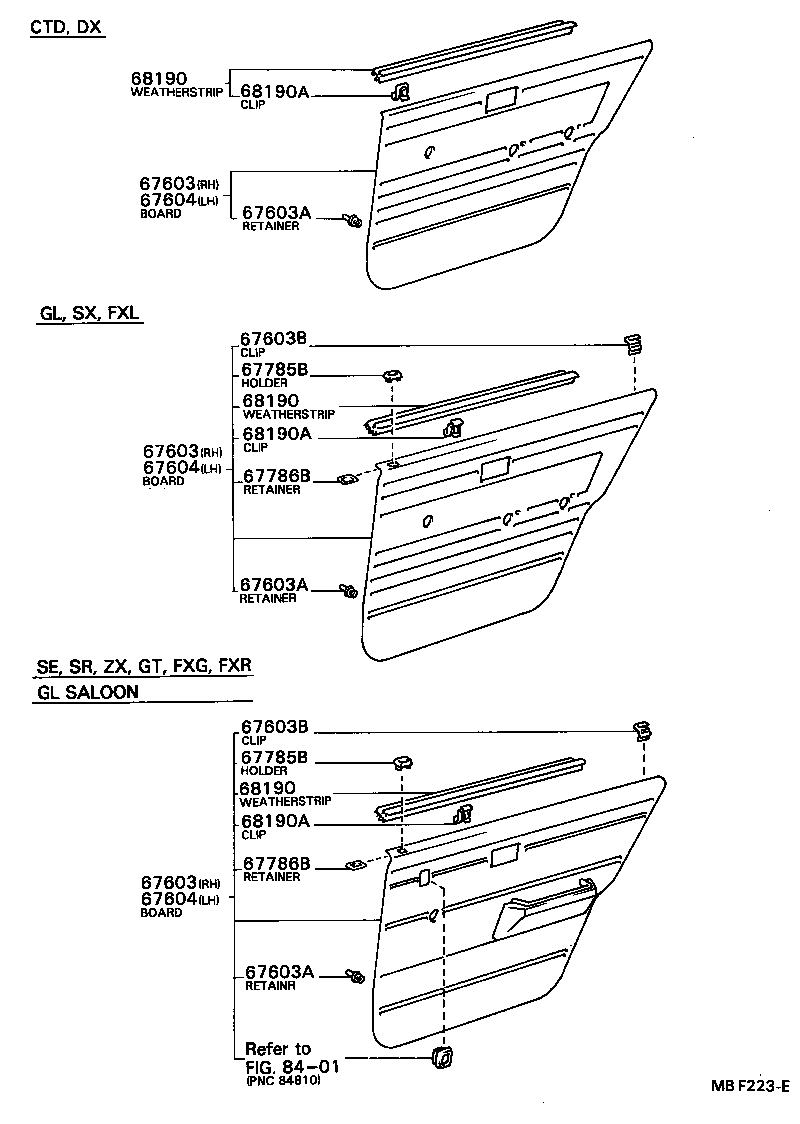

ILLUST NO. 2 OF 2(8305-8505)4D,5D2,5D3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1233002 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233003 |
AE8#,CE80..GL,SX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1240002 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233004 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1240003 |
AE8#,CE80..GL,SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1240004 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233102 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1240102 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233104 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1240104 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1240103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1233002 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233003 |
AE8#,CE80..GL,SX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1240002 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233004 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1240003 |
AE8#,CE80..GL,SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1240004 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233102 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1240102 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233104 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1240104 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1240103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1233002 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233003 |
AE8#,CE80..GL,SX GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1240002 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233004 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1240003 |
AE8#,CE80..GL,SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1240004 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233102 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1240102 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67630-1233104 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1233103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1240104 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1240103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
26 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
26 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67774-10010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
4 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67774-10010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1233004 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233002 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1240004 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233003 |
AE8#,CE80..GL,SX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1240003 |
AE8#,CE80..GL,SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233102 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1240002 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1240102 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1233103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1240103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233104 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1240104 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1233004 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233002 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1240004 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233003 |
AE8#,CE80..GL,SX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1240003 |
AE8#,CE80..GL,SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233102 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1240002 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1240102 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1233103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1240103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233104 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1240104 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1233004 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233002 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1240004 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1233003 |
AE8#,CE80..GL,SX GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1240003 |
AE8#,CE80..GL,SX COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233102 |
AE8#,CE80..GL,SX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1240002 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1240102 |
AE8#,CE80..GL,SX COLD SPEC,MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67640-1233103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1240103 |
AE8#,CE80..(4D,5D2,5D3)..(FXL,GL,SX) COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1233104 |
AE8#,CE80..GL,SX BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1240104 |
AE8#,CE80..GL,SX COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-1201001 |
AE8#,CE80..GL,SE,SR,SX,ZX BLACK,BLACK |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-1201001 |
AE8#,CE80..GL,SE,SR,SX,ZX BLACK,BLACK |
2 | ||
| 67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67786-12010 |
AE8#,CE80..GL,SE,SR,SX,ZX |
2 | ||
| 67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67786-12010 |
AE8#,CE80..GL,SE,SR,SX,ZX |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68174-12020 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68174-12020 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12040 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) RH |
1 | ||
| 68174-12020 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) LH |
1 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
10 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
10 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
AE8#,CE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX) |
10 | ||
| Linked diagrams | ||||
| 8401 | ||||
