CE80-ELPSS (1984)
Toyota Corolla
Production
Jan 1984
-
May 1985
Engine
1CL
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8401- )CE80..4FC

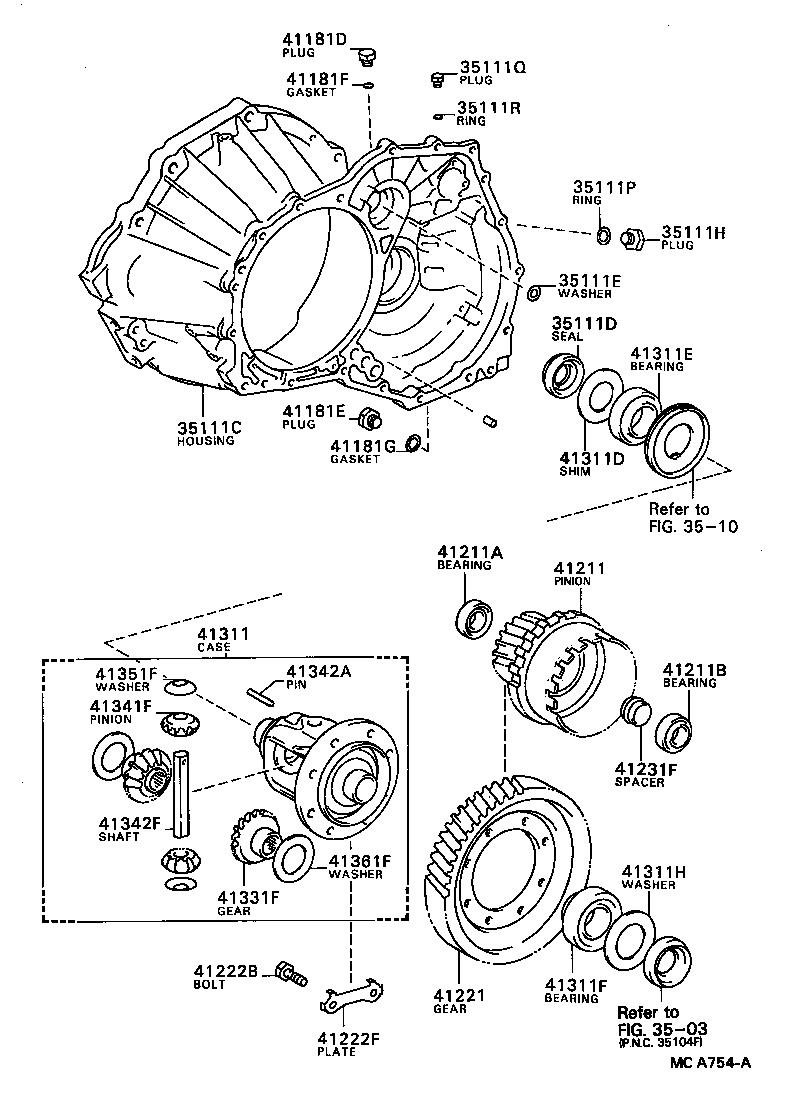

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING) | ||||
| 90210-13002 |
AE81,82,CE80..4FC |
1 | ||
| 35111H - PLUG, NO.1 (FOR TRANSAXLE HOUSING) | ||||
| 90341-18020 |
AE81,82,CE80..4FC |
1 | ||
| 35111P - RING, O (FOR TRANSAXLE HOUSING PLUG NO.1) | ||||
| 90301-15004 |
AE81,82,CE80..4FC |
1 | ||
| 35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING) | ||||
| 90341-08001 |
AE81,82,CE80..4FC |
1 | ||
| 35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2) | ||||
| 90301-06196 |
AE81,82,CE80..4FC |
1 | ||
| 41181D - PLUG (FOR FRONT DIFFERENTIAL FILLER) | ||||
| 90341-18048 |
AE81,82,CE80..4FC |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18057 |
AE8#,CE80,EE80..ATM |
1 | ||
| 41181F - GASKET (FOR FRONT DIFFERENTIAL FILLER PLUG) | ||||
| 90430-18007 |
AE80,82,CE80..ATM;AE81..ATM..(GL,SE,SX,ZX) |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 90430-18007 |
AE80,82,CE80..ATM;AE81..ATM..(GL,SE,SX,ZX) |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30020 |
AE81,82,CE80..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30019 |
AE81,82,CE80..4FC |
1 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-32010 |
CE80 |
4 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-12030 |
AE81,82,CE80..4FC |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90368-40003 |
CE80 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-32010 |
CE80 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30011 |
CE80 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
AE8#,CE80,EE80 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-39025 |
CE80 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CE80 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22140 |
AE8#,CE80,EE80 厚さ=0.95,ﾏｰｸ 14,T=0.95 |
2 | ||
| 41361-22150 |
AE8#,CE80,EE80 厚さ=1.05,ﾏｰｸ 15,T=1.05 |
2 | ||
| 41361-22030 |
AE8#,CE80,EE80 厚さ=1.10,ﾏｰｸ 03,T=1.1 |
2 | ||
| 41361-22020 |
AE8#,CE80,EE80 厚さ=1.00,ﾏｰｸ 02,T=1.0 |
2 | ||
| 41361-22160 |
AE8#,CE80,EE80 厚さ=1.15,ﾏｰｸ 16,T=1.15 |
2 | ||
| 41361-22040 |
AE8#,CE80,EE80 厚さ=1.20,ﾏｰｸ 04,T=1.2 |
2 | ||
| Linked diagrams | ||||
| 3503 | ||||
| 3510 | ||||
