CE80-ELMSS (1983)

Toyota Corolla

Production May 1983 - May 1985
Engine 1CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )5D3

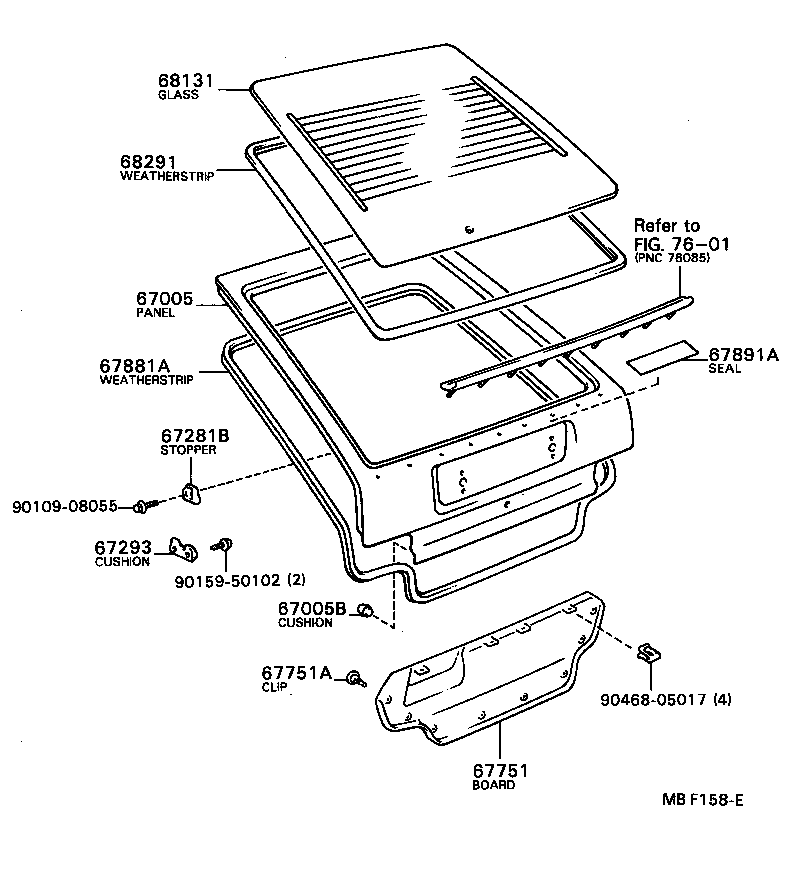

Click highlighted areas on diagram

diagram 67005 67005B 67281B 67293 67751 67751A 67881A 67891A 68131 68291 7601 9010908055 9015950102 9046805017
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-12660

AE81,CE80..SX

W/O RR WIPER

 1
67005-12410

AE81,82,CE80..5D3

W/RR WIPER

 1
67005-12370

AE81,CE80..SX

W/O RR WIPER

 1
67005-12670

AE81,82,CE80..5D3

W/RR WIPER

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09041

AE81,82,CE80..5D3

 4
67281B - STOPPER, BACK DOOR, LOWER
67281-12020

AE81,82,CE80..5D3

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-20010

AE81,82,CE80..5D3

 2
67751 - BOARD, BACK DOOR TRIM
67751-1203002

AE81,CE80..SX

W/O RR WIPER,MAROON,RED/MAROON,TRIM3#

 1
67751-1203003

AE81,CE80..5D3..(GL,SX)

W/O RR WIPER,GRAY,GRAY,TRIM1#

 1
67751-1204003

AE81,82,CE80..5D3

W/RR WIPER,GRAY,GRAY,TRIM1#

 1
67751-1204004

AE81,82,CE80..5D3

W/RR WIPER,BLUE,BLUE,TRIM8#

 1
67751-1204002

AE81,82,CE80..5D3

W/RR WIPER,MAROON,RED/MAROON,TRIM3#

 1
67751-1203004

AE81,CE80..5D3..(GL,SX)

W/O RR WIPER,BLUE,BLUE,TRIM8#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0704103

AE81,82,CE80,EE80..3D,5D2,5D3

GRAY,GRAY,TRIM1#

 8
90467-0704104

AE81,82,CE80..5D3

BLUE,BLUE,TRIM8#

 8
90467-0704102

AE81,82,CE80..5D3

MAROON,RED/MAROON,TRIM3#

 8
67881A - WEATHERSTRIP, BACK DOOR
67881-12090

AE81,82,CE80..5D3

 1
67881-12100

AE81,82,CE80..5D3

COLD SPEC

 1
67891A - SEAL, BACK DOOR
67891-12010

AE81,82,CE80..5D3

 2
68131 - GLASS, BACK DOOR
68105-12090

AE81,82,CE80..5D3

W/RR WIPER,*EHTT,T=4.0

 1
68105-12180

AE81,CE80..5D3..(GL,SX)

W/O RR WIPER,*EHT,T=4.0,BRONZE

 1
68105-12170

AE81,82,CE80..5D3

W/RR WIPER,*EHT,T=4.0,BRONZE

 1
68105-12110

AE81,CE80..5D3..(GL,SX)

W/O RR WIPER,*EHTT,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-12090

AE81,82,CE80..5D3

 1
Common parts
90109-08055
90159-50102
90468-05017
Linked diagrams
7601
