CE80-ELHSS (1983)
Toyota Corolla
Production
May 1983
-
Oct 1984
Engine
1CL
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

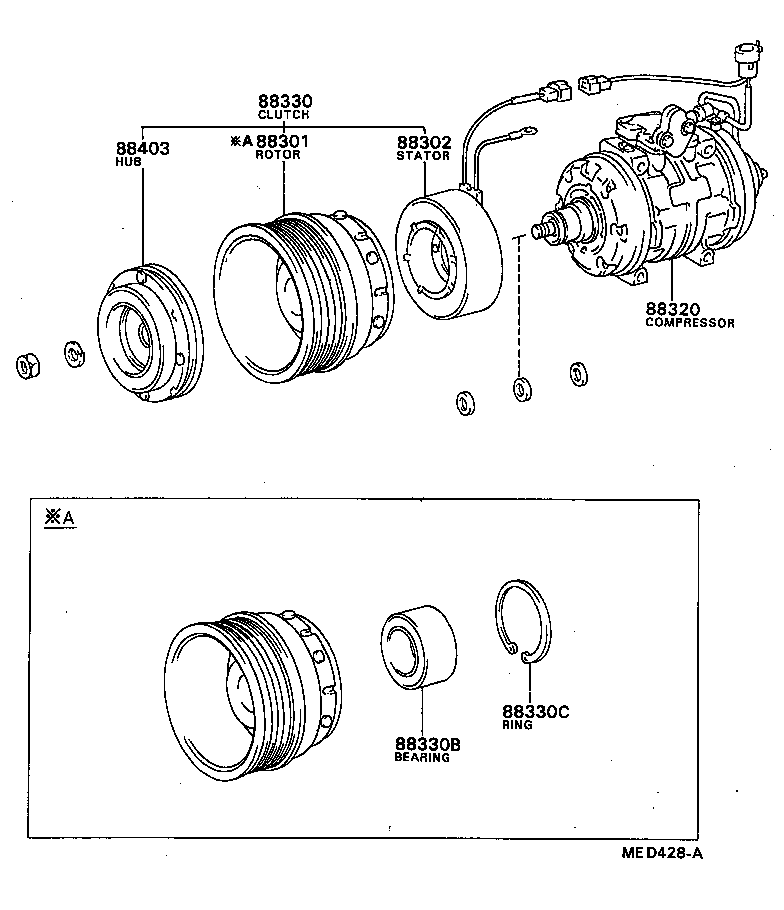

ILLUST NO. 1 OF 2(8305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-32010 |
CE80 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
CE80..GL,SE,SX W/PS |
1 | ||
| 88411-12090 |
CE80 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12260 |
CE80 |
1 | ||
| 88320-12250 |
CE80..GL,SE,SX W/PS |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-12160 |
CE80..GL,SE,SX W/PS |
1 | ||
| 88410-12170 |
CE80 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
CE80,EE80 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07118 |
CE80,EE80 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
CE80,EE80 |
1 | ||

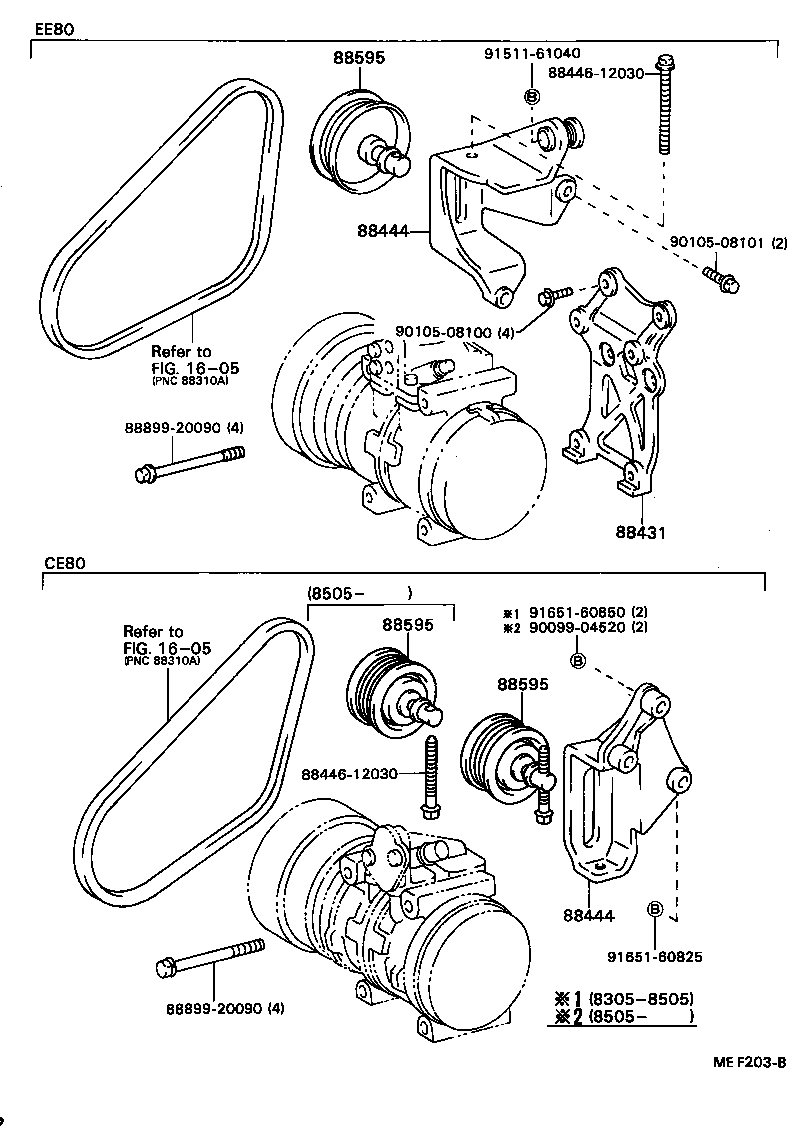

ILLUST NO. 2 OF 2(8305- )CE80,EE80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-12040 |
CE80 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-12040 |
CE80 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-12100 |
CE80 W/O PS |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-12100 |
CE80 W/O PS |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-12100 |
CE80 W/O PS |
1 | ||
| Common parts | ||||
| 88446-12030 | ||||
| 88899-20090 | ||||
| 90099-04520 | ||||
| 90105-08100 | ||||
| 90105-08101 | ||||
| 91511-61040 | ||||
| 91651-60825 | ||||
| 91651-60850 | ||||
| Linked diagrams | ||||
| 1605 | ||||
