CE80-ELHSS (1983)
Toyota Corolla
(8305- )4D,5D2,5D3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69206-1207002 |
AE8#,CE80..GL,SE,SR,SX,ZX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 69206-1207003 |
AE8#,CE80..GL,SE,SR,SX,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 69206-1207004 |
AE8#,CE80..GL,SE,SR,SX,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 69206-1207002 |
AE81..4F..DX;AE81..GL,SX,ZX;AE80,82,CE80..CTD,DX,GL,SR,SX,ZX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 69227F - SNAP(FOR REAR DOOR INSIDE HANDLE) | ||||
| 69759-20060 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX LH |
1 | ||
| 69759-20070 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX RH |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69205-1207004 |
AE8#,CE80..GL,SE,SR,SX,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 69205-1207002 |
AE8#,CE80..GL,SE,SR,SX,ZX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 69205-1207002 |
AE81..4F..DX;AE81..GL,SX,ZX;AE80,82,CE80..CTD,DX,GL,SR,SX,ZX MAROON,RED/MAROON,TRIM3# |
1 | ||
| 69205-1207003 |
AE8#,CE80..GL,SE,SR,SX,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-12070 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(CTD,DX,FXL,FXR,GL,SR,SX,ZX) |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
AE8#,CE80,EE80..4D,5D2,5D3 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-12070 |
AE8#,CE80,EE80..(4D,5D2,5D3)..(CTD,DX,FXL,FXR,GL,SR,SX,ZX) |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69277-3202004 |
AE8#,CE80..GL,SE,SR,SX,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 69277-3202012 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX MAROON,RED/MAROON,TRIM3# |
2 | ||
| 69277-3202033 |
AE8#,CE80..GL,SE,SR,SX,ZX GRAY,GRAY,TRIM1# |
2 | ||
| 69277-3202012 |
AE8#,CE80..GL,SE,SR,SX,ZX MAROON,RED/MAROON,TRIM3# |
2 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
AE8#,CE80,EE80..4D,5D2,5D3 RH |
1 | ||
| 69293-12030 |
AE8#,CE80,EE80..4D,5D2,5D3 LH |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-12100 |
AE8#,CE80..(4D,5D2,5D3)..(CTD,DX,FXG,FXL,FXR,GL,GT,SE,SR,SX) W/O *EL |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-12100 |
AE8#,CE80..(4D,5D2,5D3)..(CTD,DX,FXG,FXL,FXR,GL,GT,SE,SR,SX) W/O *EL |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-12100 |
AE8#,CE80..(4D,5D2,5D3)..(CTD,DX,FXG,FXL,FXR,GL,GT,SE,SR,SX) W/O *EL |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-12100 |
AE8#,CE80..(4D,5D2,5D3)..(CTD,DX,FXG,FXL,FXR,GL,GT,SE,SR,SX) W/O *EL |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20040 |
AE8#,CE80,EE80..4D,5D2,5D3 RH |
2 | ||
| 69759-20050 |
AE8#,CE80,EE80..4D,5D2,5D3 LH |
2 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20040 |
AE8#,CE80,EE80..4D,5D2,5D3 RH |
2 | ||
| 69759-20050 |
AE8#,CE80,EE80..4D,5D2,5D3 LH |
2 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20040 |
AE8#,CE80,EE80..4D,5D2,5D3 RH |
2 | ||
| 69759-20050 |
AE8#,CE80,EE80..4D,5D2,5D3 LH |
2 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20040 |
AE8#,CE80,EE80..4D,5D2,5D3 RH |
2 | ||
| 69759-20050 |
AE8#,CE80,EE80..4D,5D2,5D3 LH |
2 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
AE8#,CE80,EE80..4D,5D2,5D3 |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69770-12020 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69780-12020 |
AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69713-12030 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 69736B - GUIDE, REAR DOOR LOCK LINK | ||||
| 69736-22021 |
AE8#,CE80..GL,SE,SR,SX,ZX |
2 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69714-12040 |
AE8#,CE80,EE80..4D,5D2,5D3 |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69741-3201001 |
AE8#,CE80..4D,5D2,5D3 BLACK,BLACK,TRIM1# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
6 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20010 |
AE8#,CE80,EE80..4D,5D2,5D3 |
6 | ||
| Common parts | ||||
| 90159-60268 | ||||
| 90159-60329 | ||||
| 90159-80014 | ||||
| 90168-60014 | ||||
| 90189-06043 | ||||
| 91611-60610 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93530-54010 | ||||

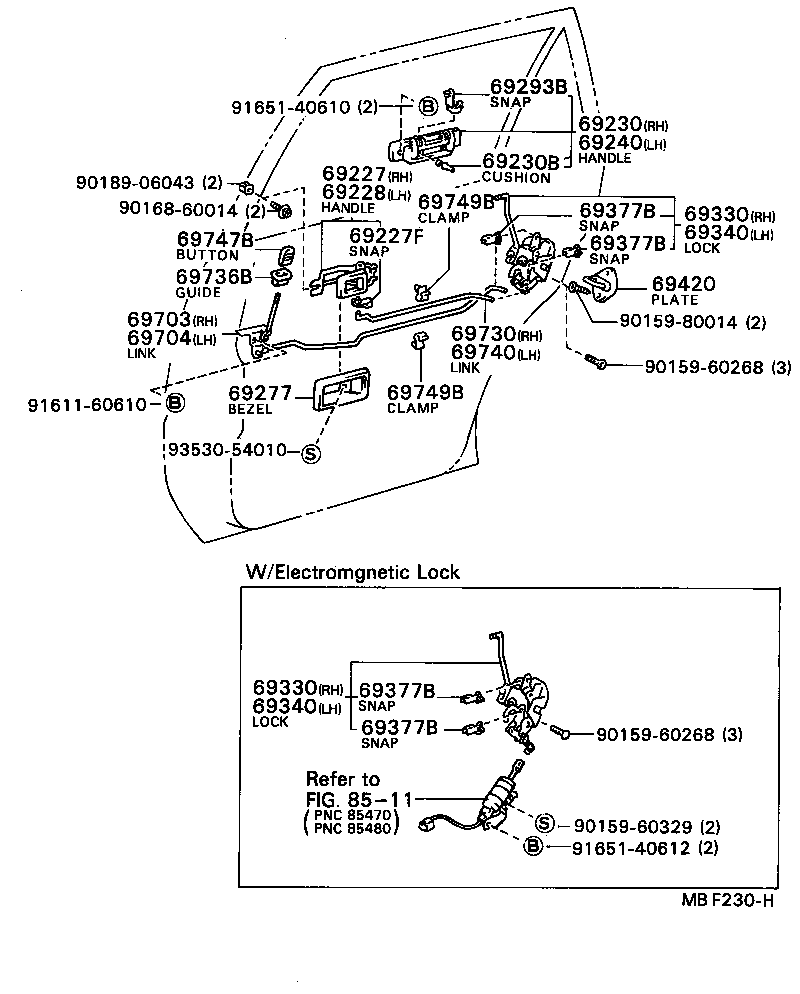

| Linked diagrams | ||||
| 8511 | ||||
