CE80-EEMES (1983)

Toyota Corolla

Production May 1983 - Apr 1987
Engine 1CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4D

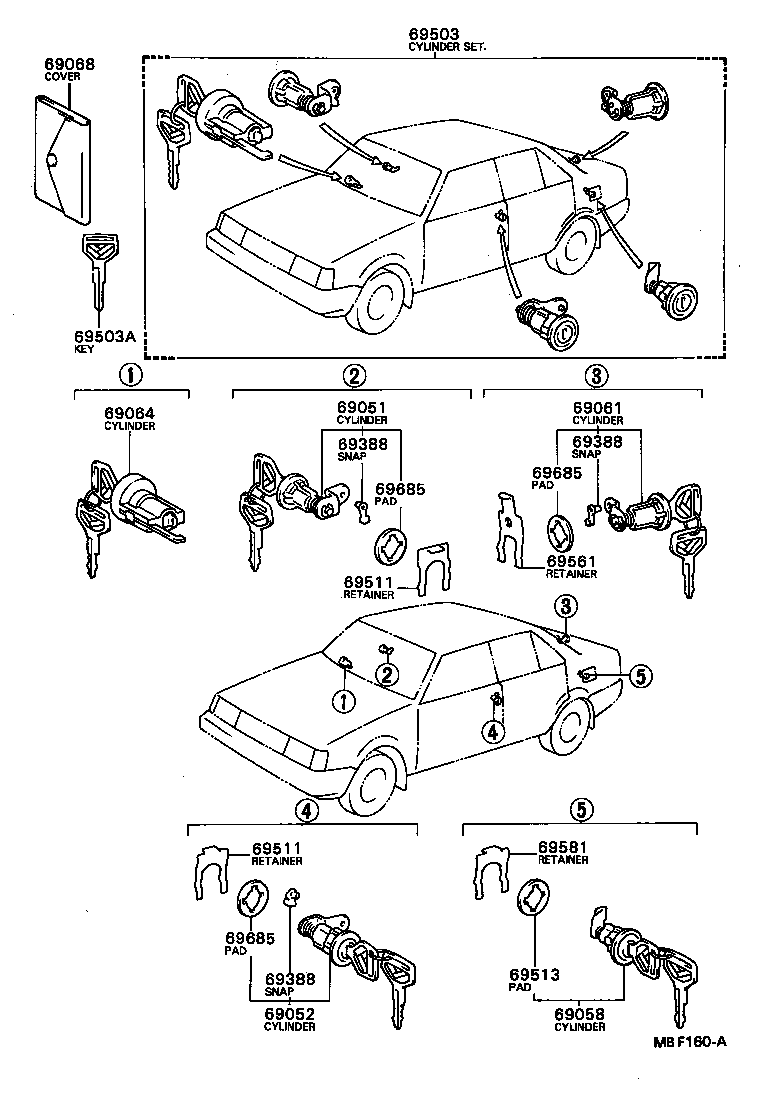

Click highlighted areas on diagram

diagram 69051 69052 69058 69061 69064 69068 69388 69388 69388 69503 69503A 69511 69511 69513 69561 69581 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12160

AE8#,CE80,EE80

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-12160

AE8#,CE80,EE80

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-12220

AE8#,CE80,EE80..4D

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-16040

AE8#,CE80,EE80

 1
69057-12120

AE8#,CE80,EE80

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

AE8#,CE80,EE80

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

AE8#,CE80,EE80

LH

 1
69759-20080

AE8#,CE80,EE80

RH DOOR,LUGGAGE,BACK DOOR

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

AE8#,CE80,EE80

LH

 1
69759-20080

AE8#,CE80,EE80

RH DOOR,LUGGAGE,BACK DOOR

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

AE8#,CE80,EE80

LH

 1
69759-20080

AE8#,CE80,EE80

RH DOOR,LUGGAGE,BACK DOOR

 2
69503 - CYLINDER SET, LOCK
69005-12550

AE80,CE80..DX,GL,SE

W/OPENER

 1
69005-12551

AE8#,CE80,EE80..4D..(DX,GL,GT,SE)

W/OPENER

 1
69005-12550

AE8#,CE80,EE80..4D..(DX,GL,GT,SE,SR)

W/OPENER

 1
69503A - KEY, BLANK
90999-00085

AE8#,CE80,EE80

ﾏｽﾀｰｷｰ

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

AE8#,CE80,EE80

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

AE8#,CE80,EE80

 2
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-12150

AE8#,CE80,EE80..4D

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#,CE80,EE80

DOOR

 2
69563-32010

AE8#,CE80,EE80

LUGGAGE,BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#,CE80,EE80

DOOR

 2
69563-32010

AE8#,CE80,EE80

LUGGAGE,BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

AE8#,CE80,EE80

DOOR

 2
69563-32010

AE8#,CE80,EE80

LUGGAGE,BACK DOOR

 1
