CE80-EEMES (1983)

Toyota Corolla

Production May 1983 - Apr 1987
Engine 1CL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

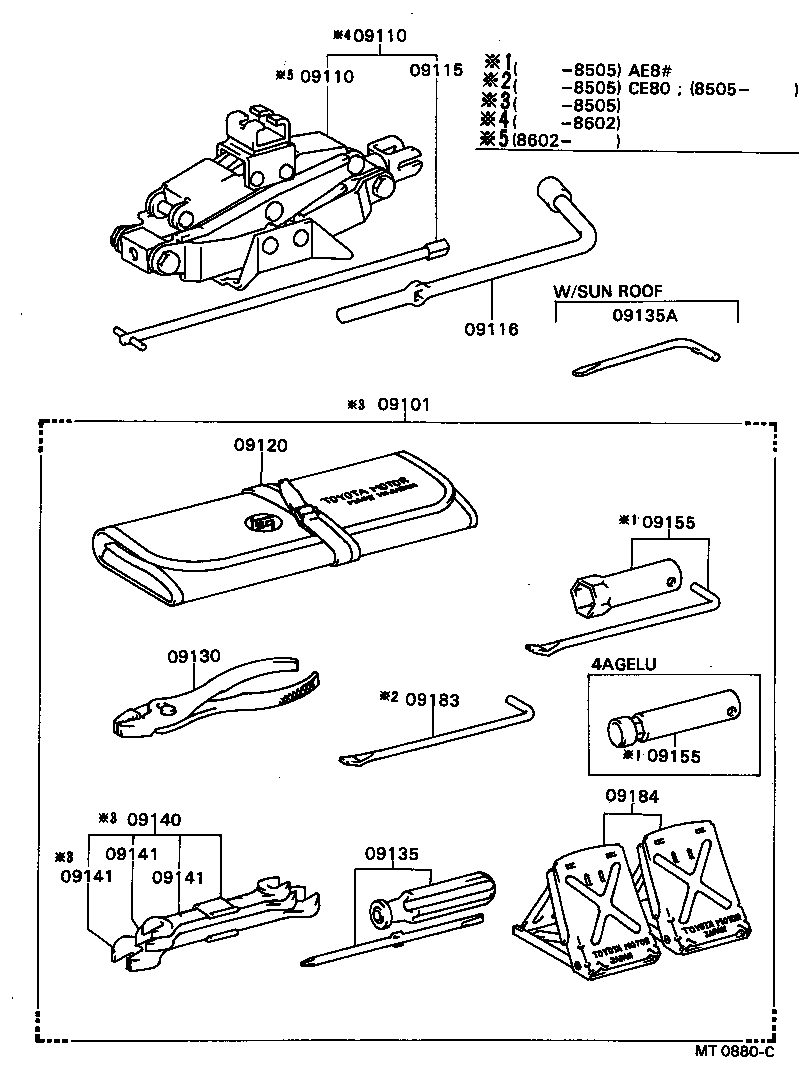

Click highlighted areas on diagram

diagram 09101 09110 09110 09115 09116 09120 09130 09135 09135A 09140 09141 09141 09141 09155 09155 09183 09184
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-12070

CE80

 1
09110 - JACK ASSY
09118-20011

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
09111-12070

AE8#,CE80,EE80

 1
09118-12040

AE81,82,CE80,EE80

 1
09110 - JACK ASSY
09118-20011

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
09111-12070

AE8#,CE80,EE80

 1
09118-12040

AE81,82,CE80,EE80

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-32010

AE8#,CE80,EE80

 1
09115-16020

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

 1
09116 - LEVER, JACK HANDLE
09116-16010

AE8#,CE80,EE80

 1
09120 - BAG, TOOL
09120-12011

AE8#,CE80

 1
09120-10030

AE8#,CE80,EE80

 1
09130 - PLIERS
99913-11500

AE8#,CE80,EE80

 1
09135 - DRIVER, SCREW
99915-10700

AE8#,CE80,EE80

 1
09135A - BIT, SCREW DRIVER
09135-00012

AE81,CE80..SE;AE82..FXR,FXT,SE,SX,ZX;AE81,CE80..(3D,5D2,5D3)..(FXG,GL,SX,ZX)

W/SUN ROOF

 1
09140 - SPANNER SET
09140-12011

AE8#,CE80

 1
09141 - SPANNER
99914-10810

AE8#,CE80,EE80

8 X 10,8X10

 1
99914-11417

AE8#,CE80

14 X 17,14X17

 1
99914-11214

AE8#,CE80,EE80

12 X 14,12X14

 1
99914-11012

AE8#,CE80

10 X 12,10X12

 1
09141 - SPANNER
99914-10810

AE8#,CE80,EE80

8 X 10,8X10

 1
99914-11417

AE8#,CE80

14 X 17,14X17

 1
99914-11214

AE8#,CE80,EE80

12 X 14,12X14

 1
99914-11012

AE8#,CE80

10 X 12,10X12

 1
09141 - SPANNER
99914-10810

AE8#,CE80,EE80

8 X 10,8X10

 1
99914-11417

AE8#,CE80

14 X 17,14X17

 1
99914-11214

AE8#,CE80,EE80

12 X 14,12X14

 1
99914-11012

AE8#,CE80

10 X 12,10X12

 1
09183 - WRENCH, WHEEL CAP
09183-00010

CE80

 1
09184 - STOPPER, WHEEL
09184-00010

AE8#,CE80,EE80

 2
