CE80-EEHNS (1983)

Toyota Corolla

Production May 1983 - Oct 1984
Engine 1CL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8305- )4D

Click highlighted areas on diagram

diagram 61824A 61824A 61824A 61824A 63102A 63102A 63104 63104 63111 63111 63133 63133 64101 64101 64811 64811 64831 64831 9011906101
Part # Description Qty Price
61824A - PLATE, NOISE CONTROL, NO.1
61824-12010

AE8#,CE80,EE80..4D

 4
61824A - PLATE, NOISE CONTROL, NO.1
61824-12010

AE8#,CE80,EE80..4D

 4
61824A - PLATE, NOISE CONTROL, NO.1
61824-12010

AE8#,CE80,EE80..4D

 4
61824A - PLATE, NOISE CONTROL, NO.1
61824-12010

AE8#,CE80,EE80..4D

 4
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-12020

AE8#,CE80,EE80..3D,4D,5D2

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-12020

AE8#,CE80,EE80..3D,4D,5D2

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-12100

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

W/O SUN ROOF

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-12100

AE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX

W/O SUN ROOF

 1
63111 - PANEL, ROOF
63111-12230

AE8#,CE80,EE80..4D

W/O SUN ROOF

 1
63111 - PANEL, ROOF
63111-12230

AE8#,CE80,EE80..4D

W/O SUN ROOF

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-12140

AE8#,CE80,EE80..4D

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-12140

AE8#,CE80,EE80..4D

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12250

AE80,81,CE80..CTD,DX,GL

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12250

AE80,81,CE80..CTD,DX,GL

 1
64811 - GLASS, BACK WINDOW
64801-12360

CE80..4D;AE81..4D..MTM;AE81..3FC..(GL,SE)

*EHTT,T=3.5

 1
64801-12380

AE8#,CE80,EE80..4D..(GL,GT,SE,SR)

*EHT,T=3.5,BRONZE

 1
64811 - GLASS, BACK WINDOW
64801-12360

CE80..4D;AE81..4D..MTM;AE81..3FC..(GL,SE)

*EHTT,T=3.5

 1
64801-12380

AE8#,CE80,EE80..4D..(GL,GT,SE,SR)

*EHT,T=3.5,BRONZE

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-12290

AE8#,CE80,EE80..4D..(GL,GT,SE)

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-12290

AE8#,CE80,EE80..4D..(GL,GT,SE)

 1
Common parts
90119-06101

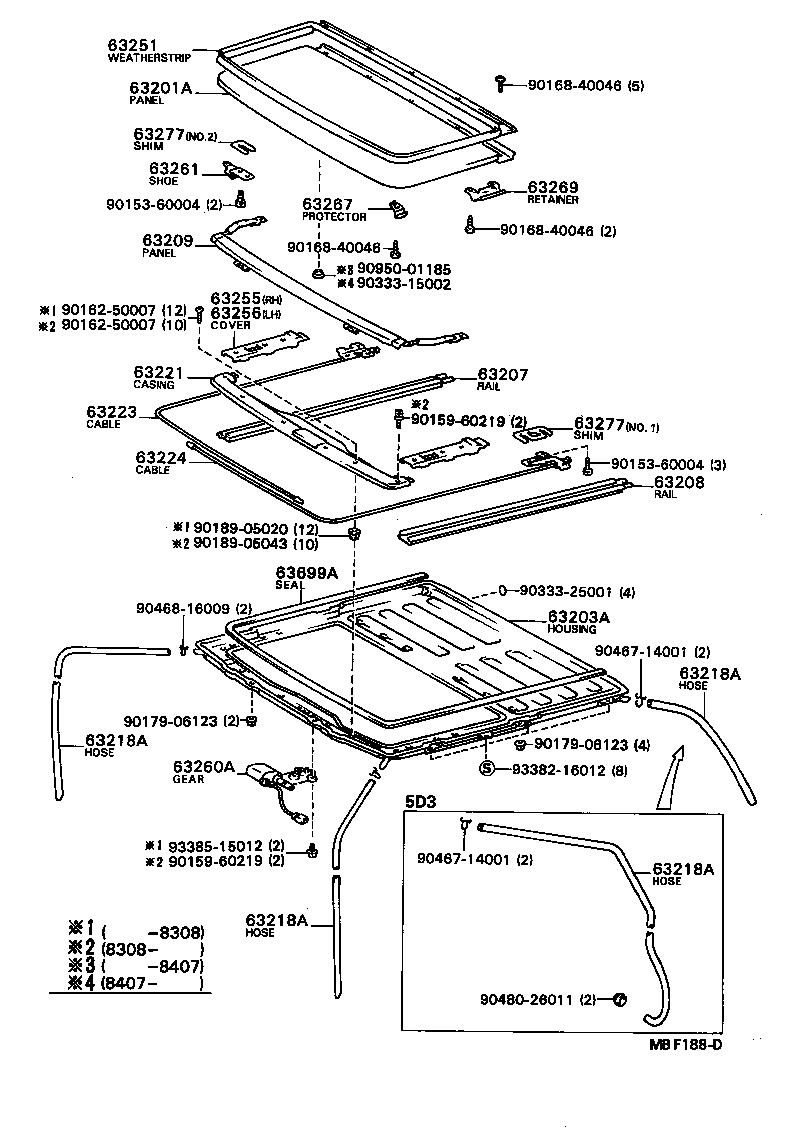

ILLUST NO. 2 OF 2(8305- )

Click highlighted areas on diagram

diagram 63201A 63203A 63207 63208 63209 63218A 63218A 63218A 63218A 63221 63223 63224 63251 63255 63256 63260A 63261 63267 63269 63277 63277 63699A 9015360004 9015360004 9015960219 9015960219 9016250007 9016250007 9016840046 9016840046 9016840046 9017906123 9017906123 9018905020 9018905043 9033315002 9033325001 9046714001 9046714001 9046816009 9048026011 9095001185 9338216012 9338515012
Part # Description Qty Price
Common parts
90153-60004
90159-60219
90162-50007
90168-40046
90179-06123
90189-05020
90189-05043
90333-15002
90333-25001
90467-14001
90468-16009
90480-26011
90950-01185
93382-16012
93385-15012
