CE80-EEHNS (1983)

Toyota Corolla

Production May 1983 - Oct 1984
Engine 1CL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8606)1CL

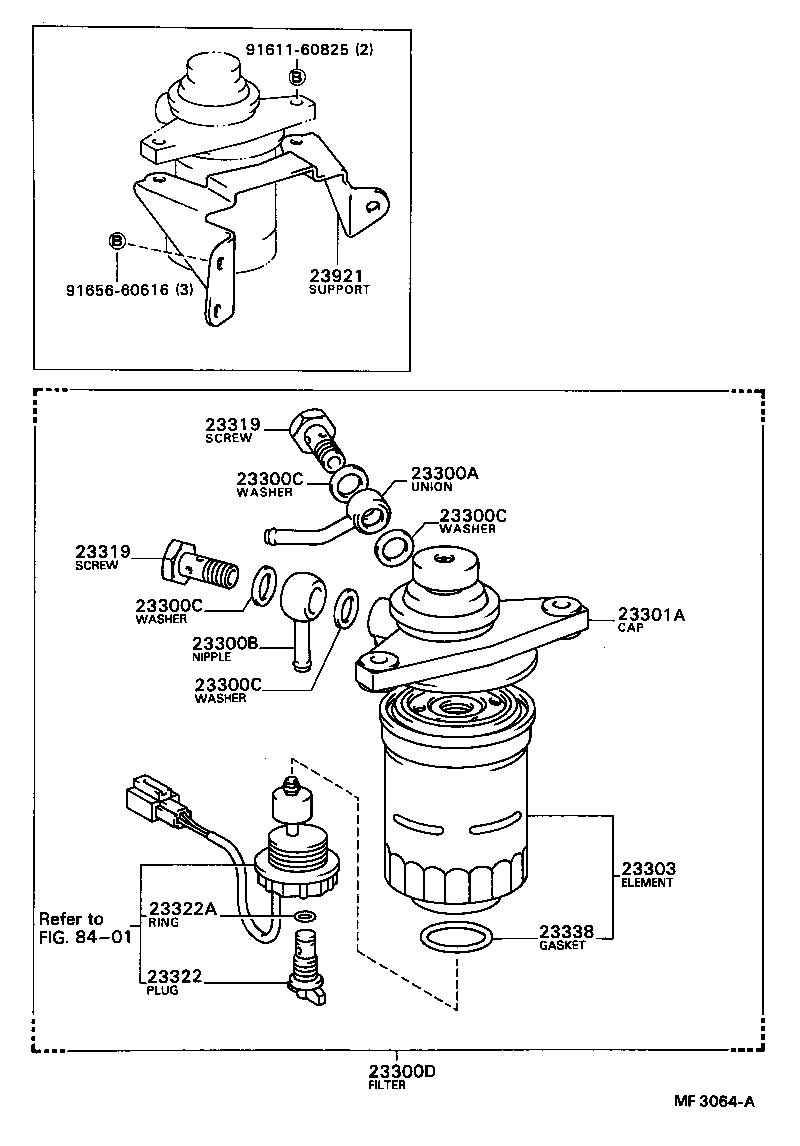

Click highlighted areas on diagram

diagram 23300A 23300B 23300C 23300C 23300C 23300C 23300D 23301A 23303 23319 23319 23322 23322A 23338 23921 8401 9161160825 9165660616
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
23323-64010

1CL..CE80

 1
23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET)
90405-08016

1CL..CE80

 1
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1CL..CE80

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1CL..CE80

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1CL..CE80

 4
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

1CL..CE80

 4
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-64070

1CL..CE80

 1
23301A - CAP ASSY, FUEL FILTER
23301-64020

1CL..CE80

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

1CL..CE80

 1
23319 - SCREW, FUEL PIPE FOLLOW
90099-18011

1CL..CE80

 2
23319 - SCREW, FUEL PIPE FOLLOW
90099-18011

1CL..CE80

 2
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

1CL..CE80

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1CL..CE80

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1CL..CE80

 1
23921 - SUPPORT, FUEL FILTER
23921-64060

1CL..CE80

 1
Common parts
91611-60825
91656-60616
Linked diagrams
8401
