CE71V-EYMDS (1985)

Toyota Corolla

Production Aug 1985 - Jul 1987
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CE7#..5F

Click highlighted areas on diagram

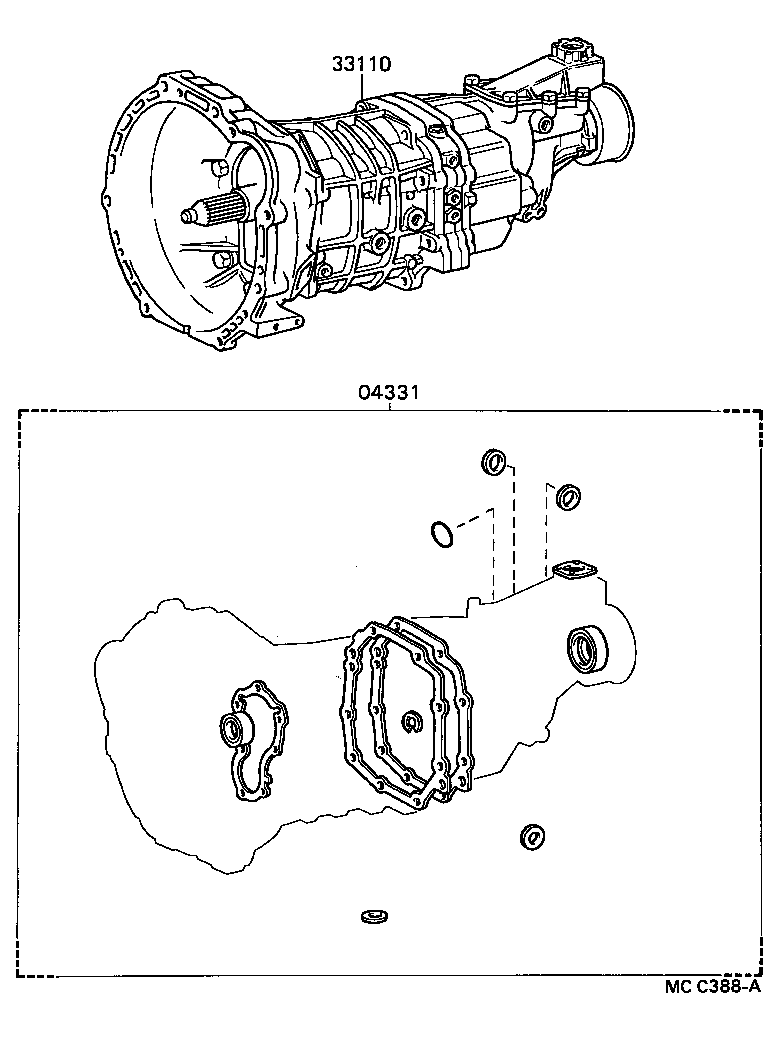

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-20050

CE7#..5F

 1
33110 - TRANSMISSION ASSY, MANUAL
33030-20541

TE70,71..5F

 1
33030-20431

TE70,71..5F

COLD SPEC

 1
33030-12490

CE7#..5F

 1
