CE70-EEPNS (1982)

Toyota Corolla

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8202- )CE7#

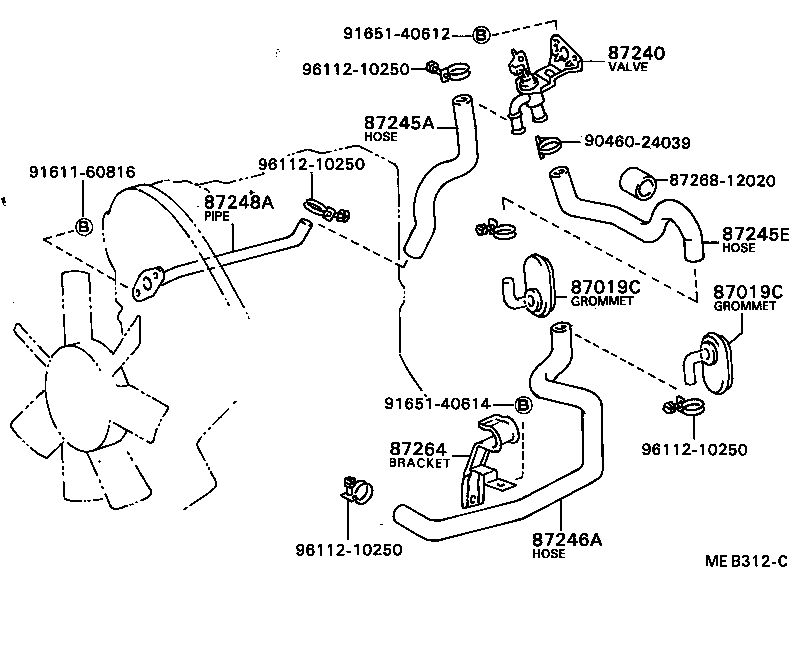

Click highlighted areas on diagram

diagram 87019C 87019C 87240 87245A 87245E 87246A 87248A 87264 8726812020 9046024039 9161160816 9165140612 9165140614 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

CE7#,KE7#,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

CE7#,KE7#,TE7#

 2
87240 - VALVE ASSY, HEATER WATER
87240-12100

AE70,CE7#,KE7#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12350

AE70,CE7#,KE7#

 1
Common parts
87268-12020
90460-24039
91611-60816
91651-40612
91651-40614
96112-10250
