CE70-EEPNS (1982)

Toyota Corolla

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8304)SED

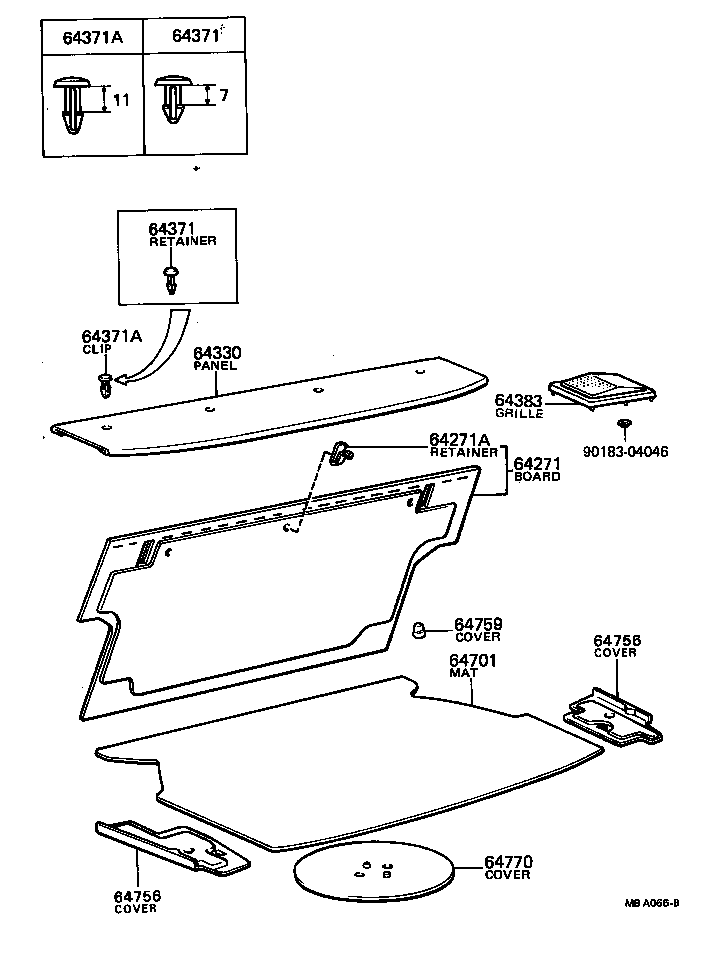

Click highlighted areas on diagram

diagram 64271 64271A 64330 64371 64371 64371A 64371A 64383 64701 64756 64756 64759 64770 9018304046
Part # Description Qty Price
64271 - BOARD, ROOM PARTITION, NO.1
64270-12010

AE70,CE70,KE70,TE70,71..SED

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-1233001

AE70,CE70,KE70,TE70..SED..(CTD,DX,GL,STD,SX)

BLACK,BLACK,TRIM2#

 1
64330-1233004

AE70,CE70,KE70,TE70..SED..(CTD,DX,GL,SX)

BLUE,BLUE,TRIM8#

 1
64330-1235111

AE70,CE70,KE70,TE71..(GT,SE)..4D

BLACK,BLACK,TRIM2#

 1
64759 - COVER, SHOCK ABSORBER HEAD
58731-2202003

AE70,CE70,KE70,TE70,71..HT,SED

GRAY,GRAY,TRIM1#

 2
64770 - COVER ASSY, SPARE WHEEL
64770-20030

AE70,CE70,KE70,TE70,71..(HT,SED)..(GT,SE)

 1
Common parts
90183-04046
