CE70-EEMNS (1982)

Toyota Corolla

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8202- )CE7#

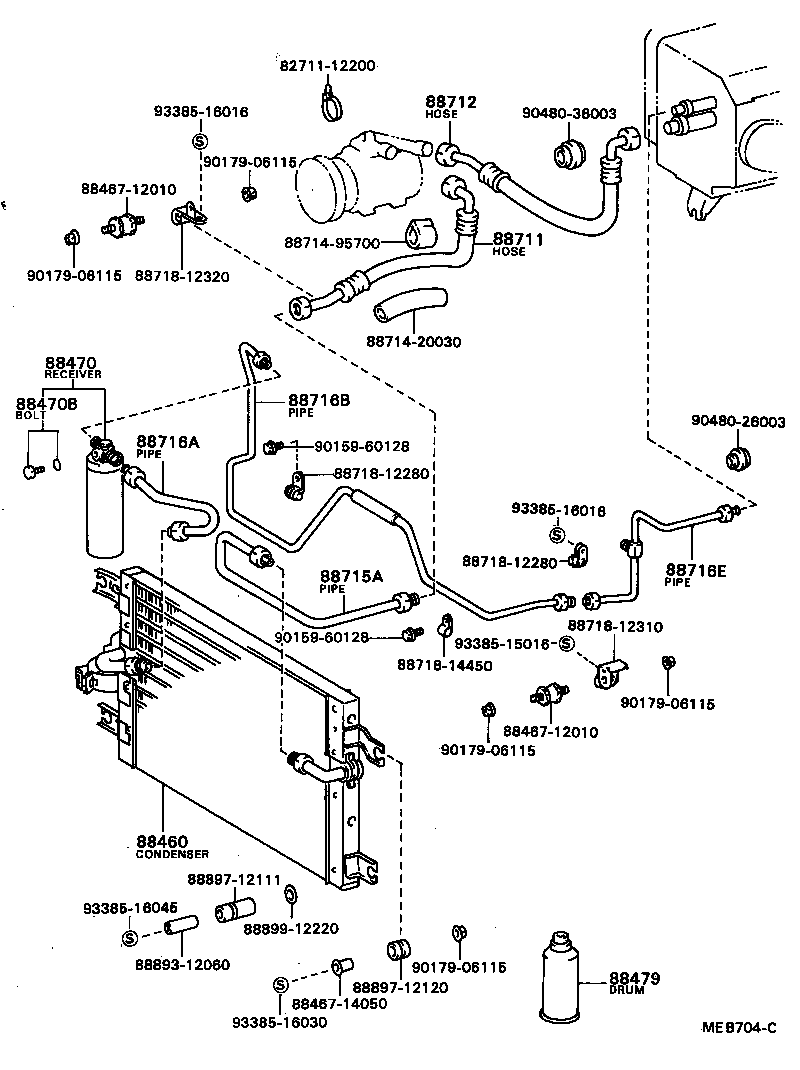

Click highlighted areas on diagram

diagram 8271112200 88460 8846712010 8846712010 8846714050 88470 88470B 88479 88711 88712 8871420030 8871495700 88715A 88716A 88716B 88716E 8871812280 8871812280 8871812310 8871812320 8871814450 8889312060 8889712111 8889712120 8889912220 9015960128 9015960128 9017906115 9017906115 9017906115 9017906115 9017906115 9048026003 9048036003 9338515016 9338516016 9338516016 9338516030 9338516045
Part # Description Qty Price
88470B - BOLT, FUSE
90099-04579

AE70,CE7#,KE7#,TE7#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AE70,CE7#,KE7#,TE7#

400G

 2
Common parts
82711-12200
88467-12010
88467-14050
88714-20030
88714-95700
88718-12280
88718-12310
88718-12320
88718-14450
88893-12060
88897-12111
88897-12120
88899-12220
90159-60128
90179-06115
90480-26003
90480-36003
93385-15016
93385-16016
93385-16030
93385-16045
