CE70-EEMNS (1982)

Toyota Corolla

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8202- )CE7#

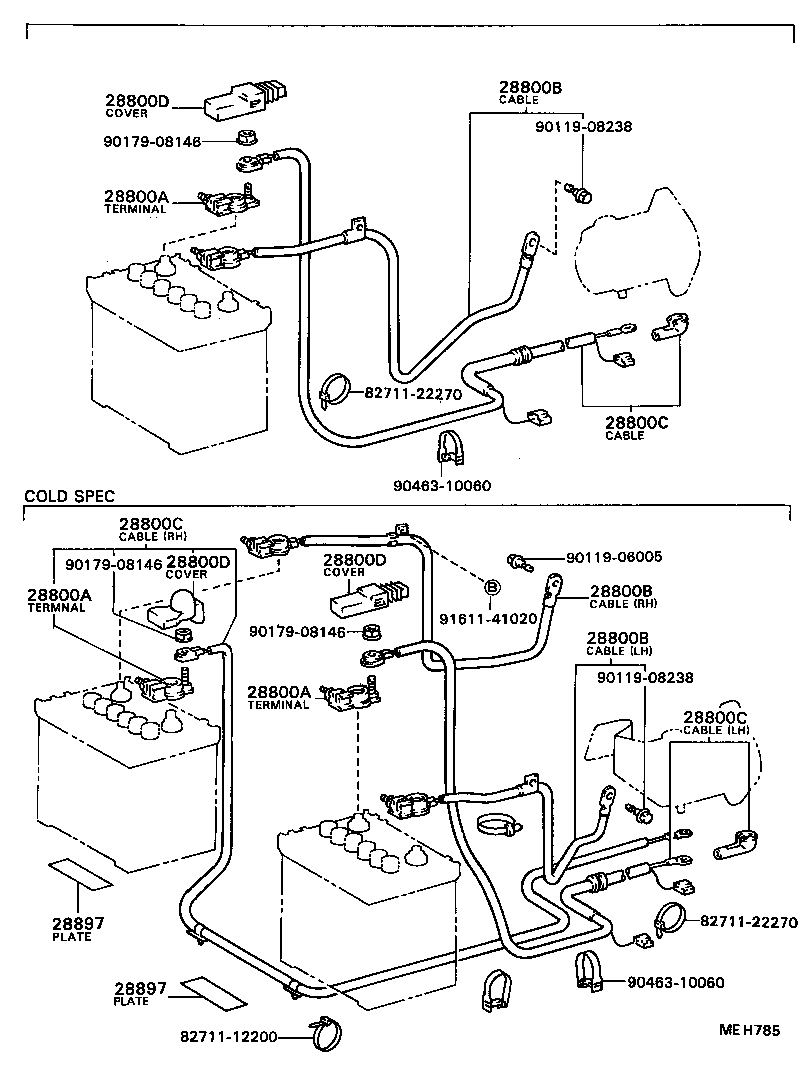

Click highlighted areas on diagram

diagram 28800A 28800A 28800A 28800B 28800B 28800B 28800C 28800C 28800C 28800D 28800D 28800D 28897 28897 8271112200 8271122270 8271122270 9011906005 9011908238 9011908238 9017908146 9017908146 9017908146 9046310060 9046310060 9161141020
Part # Description Qty Price
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22100

1C..CE7#

RH BATTERY,COLD SPEC

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22100

1C..CE7#

RH BATTERY,COLD SPEC

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22100

1C..CE7#

RH BATTERY,COLD SPEC

 1
Common parts
82711-12200
82711-22270
90119-06005
90119-08238
90179-08146
90463-10060
91611-41020
