CE70-EEMNS (1982)

Toyota Corolla

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8202- )1C

Click highlighted areas on diagram

diagram 17700 17705 17801 17882 17882A 17883 17883A 17884 17884A 17884B 17887 9011908360 9017906097 9018306001 9018306001 9165540616 9165540616 9165640616 9354054012
Part # Description Qty Price
17883 - HOSE, AIR CLEANER, NO.3
17882-64010

1C..CE7#

 1
17884 - HOSE, AIR CLEANER, NO.4
17883-64010

1C..CE7#

 1
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
17781-64010

1C..CE7#

 1
Common parts
90119-08360
90179-06097
90183-06001
91655-40616
91656-40616
93540-54012

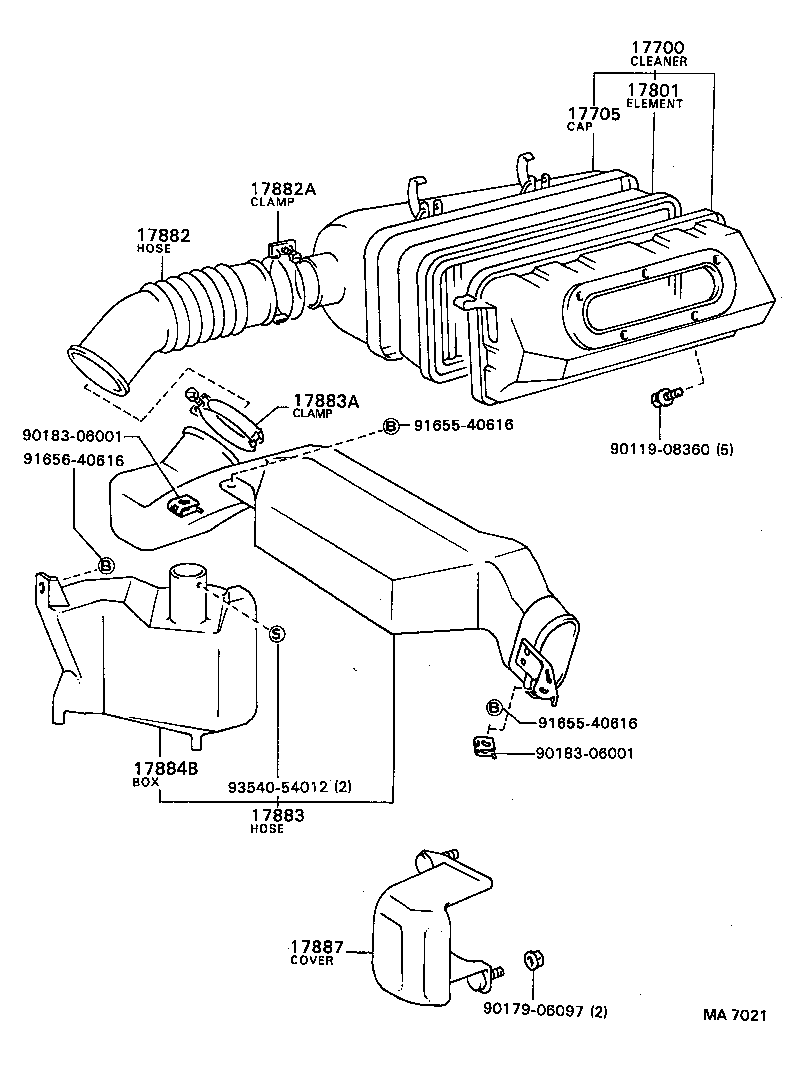

(8302- )1C..5F

Click highlighted areas on diagram

diagram 17700 17705 17801 17882 17882A 17883 17883A 17884B 17887 9011908360 9017906097 9018306001 9018306001 9165540616 9165540616 9165640616 9354054012
Part # Description Qty Price
17883 - HOSE, AIR CLEANER, NO.3
17882-64010

1C..CE7#

 1
Common parts
90119-08360
90179-06097
90183-06001
91655-40616
91656-40616
93540-54012
