CE70-EEMNS (1982)

Toyota Corolla

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

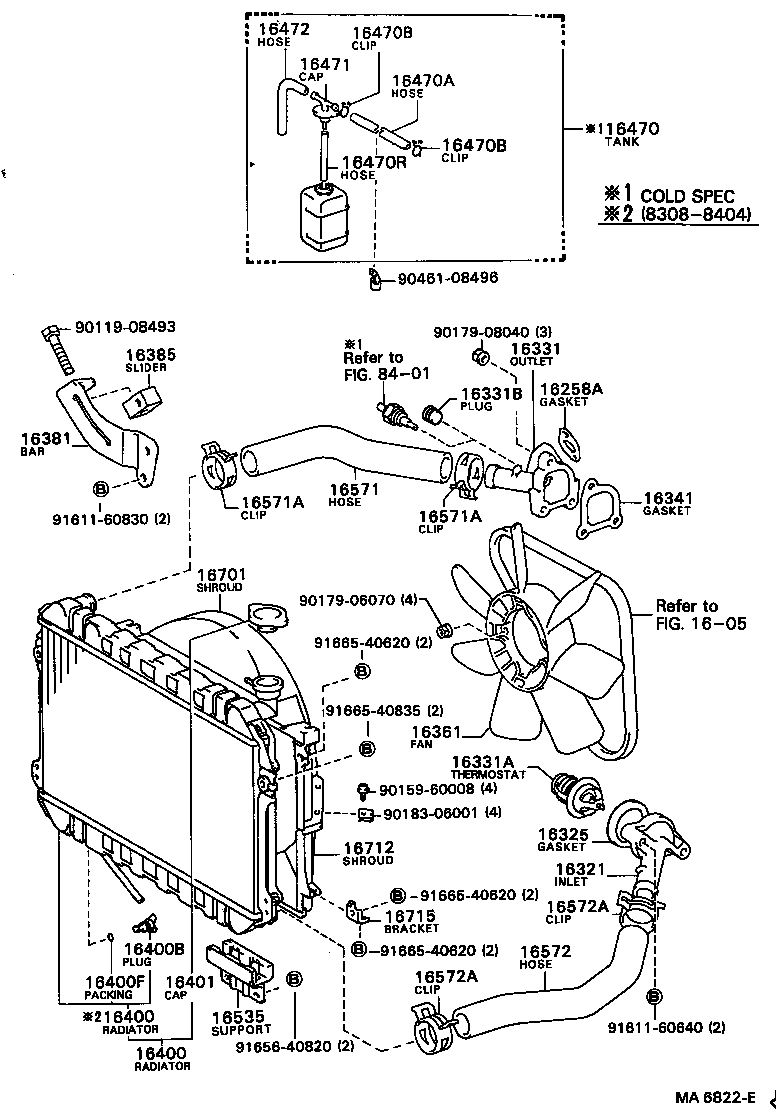

ILLUST NO. 1 OF 2(8202- )1C

Click highlighted areas on diagram

diagram 1605 16258A 16321 16325 16331 16331A 16331B 16341 16361 16381 16385 16400 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16470R 16471 16472 16535 16571 16571A 16571A 16572 16572A 16572A 16701 16712 16715 8401 9011908493 9015960008 9017906070 9017908040 9018306001 9046108496 9161160640 9161160830 9165640820 9166540620 9166540620 9166540620 9166540835
Part # Description Qty Price
16331A - THERMOSTAT
90916-03046

1C..CE7#

*WAX 82−95,*WAX 82-95,*(F)

 1
16331B - PLUG(FOR WATER OUTLET)
90345-53007

1C..CE7#

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

1C..CE7#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36011

1C..CE7#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1C..CE7#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1C..CE7#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
85339-12010

1C..CE7#

 1
Common parts
90119-08493
90159-60008
90179-06070
90179-08040
90183-06001
90461-08496
91611-60640
91611-60830
91656-40820
91665-40620
91665-40835
Linked diagrams
1605
8401

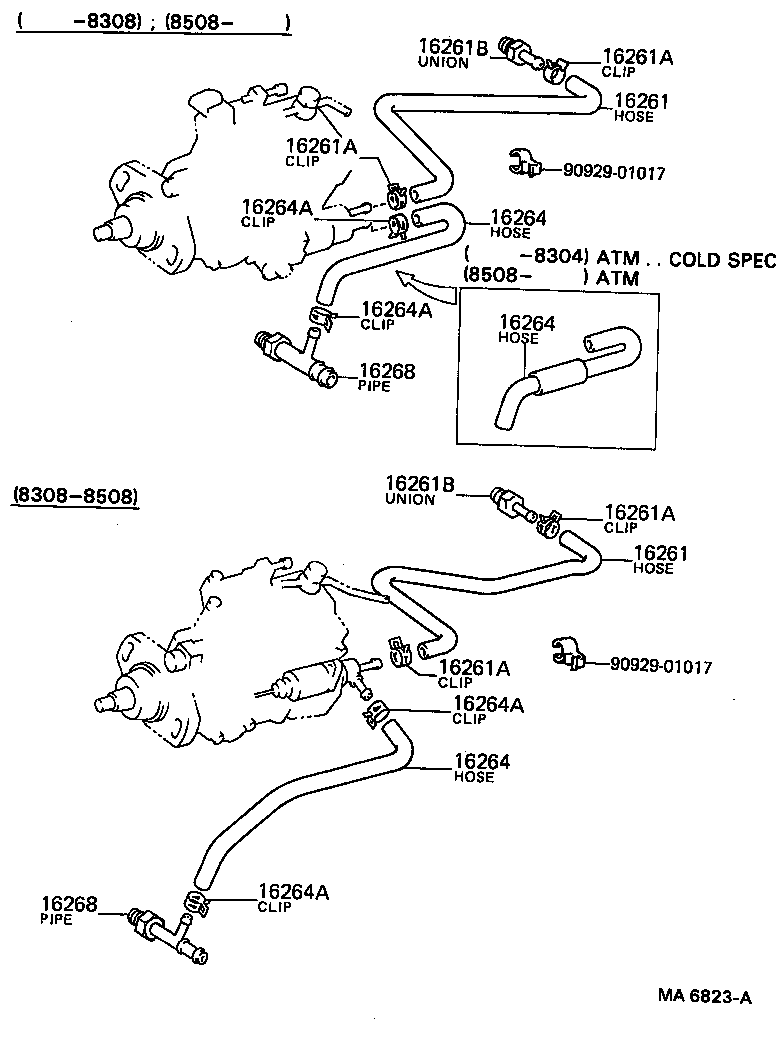

ILLUST NO. 2 OF 2(8202- )1C

Click highlighted areas on diagram

diagram 16261 16261 16261A 16261A 16261A 16261A 16261B 16261B 16264 16264 16264 16264A 16264A 16264A 16264A 16268 16268 9092901017 9092901017
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-64010

1C..CE7#

 1
16261 - HOSE, WATER BY-PASS
16261-64010

1C..CE7#

 1
16268 - PIPE, WATER BY-PASS, NO.1
87208-20150

1C..CE7#

 1
16268 - PIPE, WATER BY-PASS, NO.1
87208-20150

1C..CE7#

 1
Common parts
90929-01017
