CE70-EEMNS (1982)

Toyota Corolla

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8202- )1C

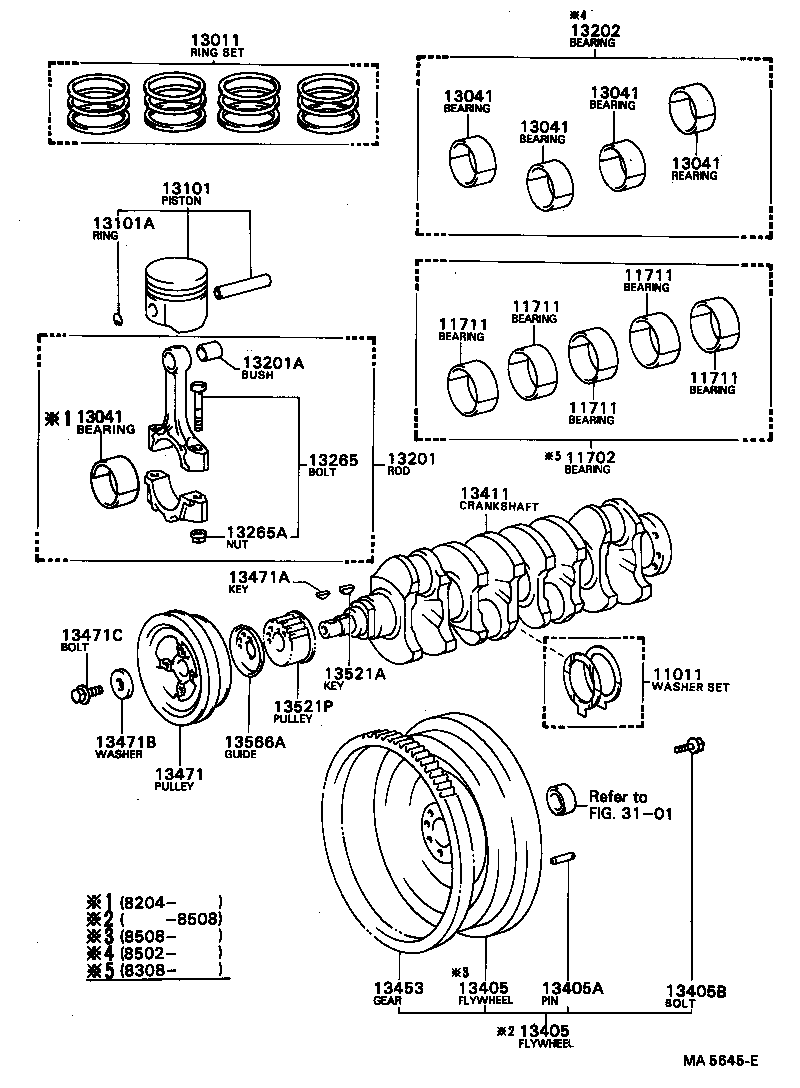

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405 13405A 13405B 13411 13453 13471 13471A 13471B 13471C 13521A 13521P 13566A 3101
Part # Description Qty Price
13201 - ROD SUB-ASSY, CONNECTING
13201-64010

1C..CE7#

 4
13405 - FLYWHEEL SUB-ASSY
13405-69046

1C..CE7#..5F

 1
13405 - FLYWHEEL SUB-ASSY
13405-69046

1C..CE7#..5F

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

1C..CE7#..5F

長さ=23,外径=8,L=23,OD=8

 3
13453 - GEAR, FLYWHEEL RING
13453-64010

1C..CE7#..5F

 1
13471 - PULLEY, CRANKSHAFT
13408-64011

1C..CE7#

 1
Linked diagrams
3101
