CE70-EEMNS (1982)

Toyota Corolla

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8202- )1C

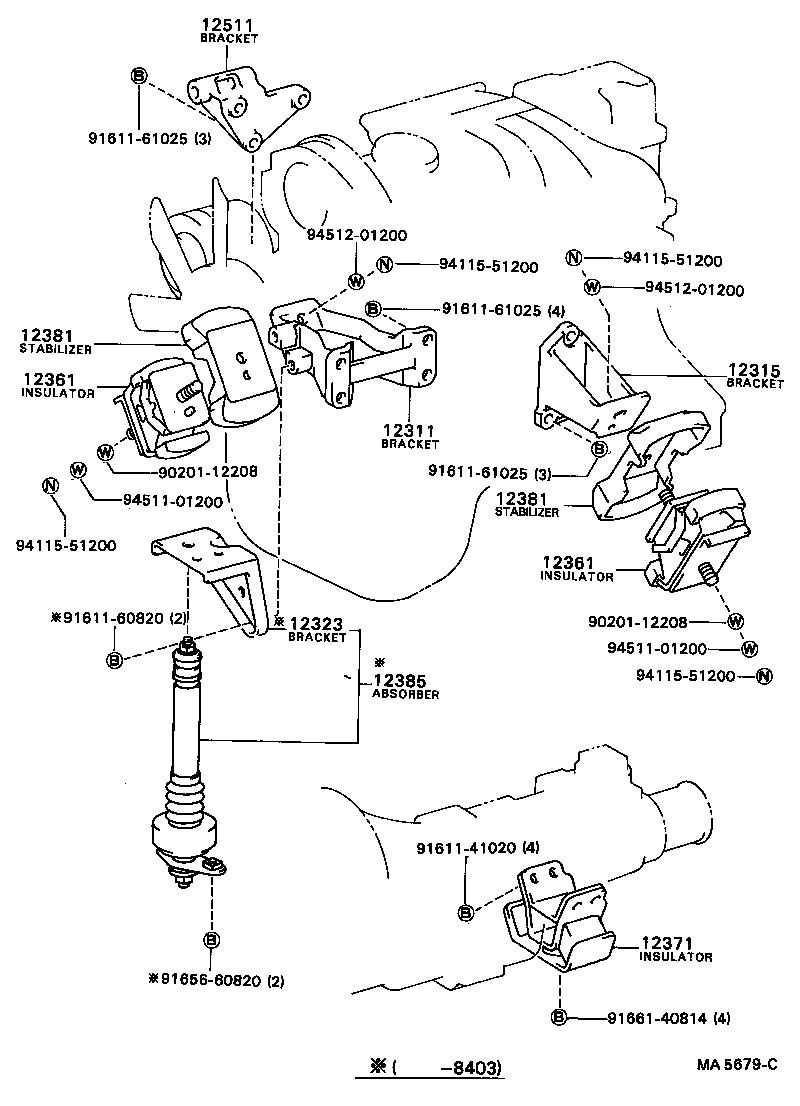

Click highlighted areas on diagram

diagram 12311 12315 12323 12361 12361 12371 12381 12381 12385 12511 9020112208 9020112208 9161141020 9161160820 9161161025 9161161025 9161161025 9165660820 9166140814 9411551200 9411551200 9411551200 9411551200 9451101200 9451101200 9451201200 9451201200
Part # Description Qty Price
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64021

1C..CE7#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64021

1C..CE7#

 2
Common parts
90201-12208
91611-41020
91611-60820
91611-61025
91656-60820
91661-40814
94115-51200
94511-01200
94512-01200
