CE70-EEMES (1982)

Toyota Corolla

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

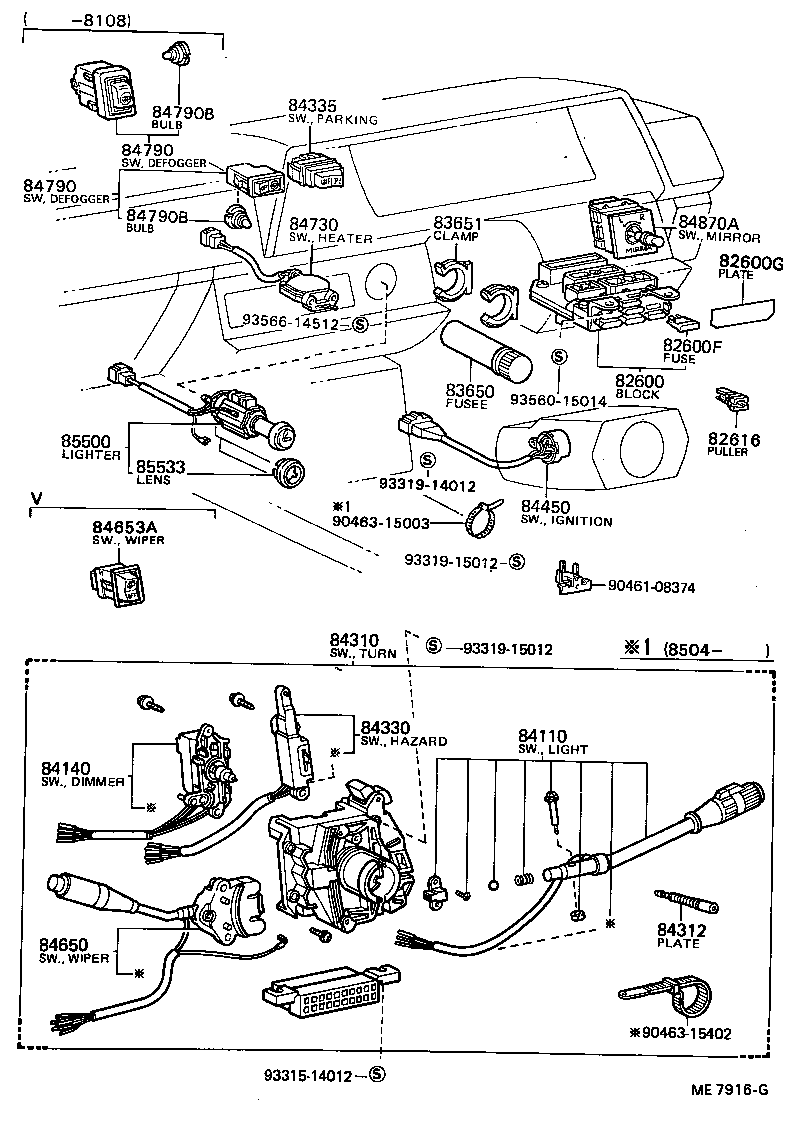

ILLUST NO. 2 OF 5(7903-8304)SED ; (7903- )CE71,KE71,72,74,TE73,74 ; (8205- )CE72,KE73

Click highlighted areas on diagram

diagram 82600 82600F 82600G 82616 83650 83651 84110 84140 84310 84312 84330 84335 84450 84650 84653A 84730 84790 84790 84790B 84790B 84870A 85500 85533 9046108374 9046315003 9046315402 9331514012 9331914012 9331915012 9331915012 9356015014 9356614512
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09002

AE70,CE7#,KE7#,TE7#

10A,10A

 9
90982-09003

AE70,CE7#,KE7#,TE7#

15A,15A

 6
90982-09004

AE70,CE7#,KE7#,TE7#

20A,黄,20A

 1
82616 - PULLER, FUSE
82616-12010

AE70,CE7#,KE7#,TE7#

 1
83650 - FUSEE
90986-01003

AE70,CE7#,KE7#,TE7#

 1
83651 - CLAMP, FUSEE
90468-25002

AE70,CE7#,KE7#,TE7#

 2
84312 - PLATE, HORN CONTACT
84312-12030

AE70,CE7#,KE7#,TE7#

MATSUSHITA

 1
84312-12020

AE70,CE7#,KE7#,TE7#

TOKAIRIKA

 1
Common parts
90461-08374
90463-15003
90463-15402
93315-14012
93319-14012
93319-15012
93560-15014
93566-14512

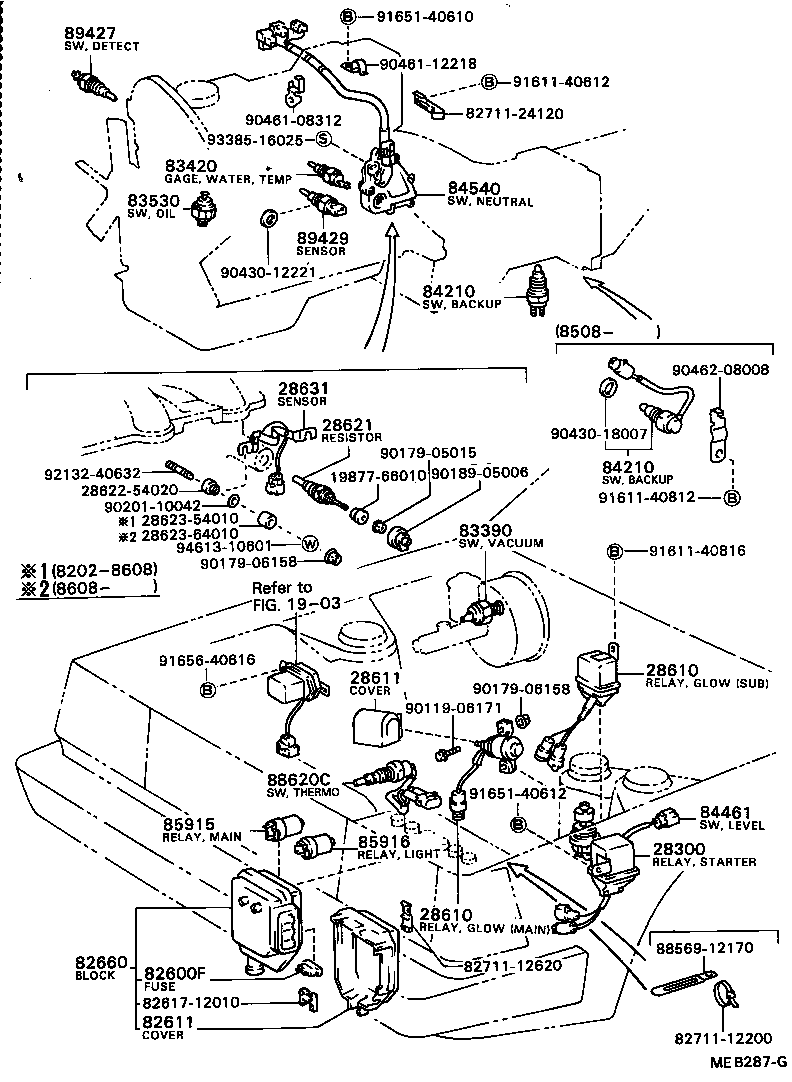

ILLUST NO. 1 OF 5(8202- )CE7#

Click highlighted areas on diagram

diagram 1903 1987766010 28300 28610 28610 28611 28621 2862254020 2862354010 2862364010 28631 82600F 82611 8261712010 82660 8271112200 8271112620 8271124120 83390 83420 83530 84210 84210 84461 84540 85915 85916 8856912170 88620C 89427 89429 9011906171 9017905015 9017906158 9017906158 9018905006 9020110042 9043012221 9043018007 9046108312 9046112218 9046208008 9161140612 9161140812 9161140816 9165140610 9165140612 9165640616 9213240632 9338516025 9461310601
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09002

AE70,CE7#,KE7#,TE7#

10A,10A

 9
90982-09003

AE70,CE7#,KE7#,TE7#

15A,15A

 6
90982-09004

AE70,CE7#,KE7#,TE7#

20A,黄,20A

 1
Common parts
19877-66010
28622-54020
28623-54010
28623-64010
82617-12010
82711-12200
82711-12620
82711-24120
88569-12170
90119-06171
90179-05015
90179-06158
90189-05006
90201-10042
90430-12221
90430-18007
90461-08312
90461-12218
90462-08008
91611-40612
91611-40812
91611-40816
91651-40610
91651-40612
91656-40616
92132-40632
93385-16025
94613-10601
Linked diagrams
1903
