CE70-EEMES (1982)

Toyota Corolla

Production Feb 1982 - Apr 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8202- )1C

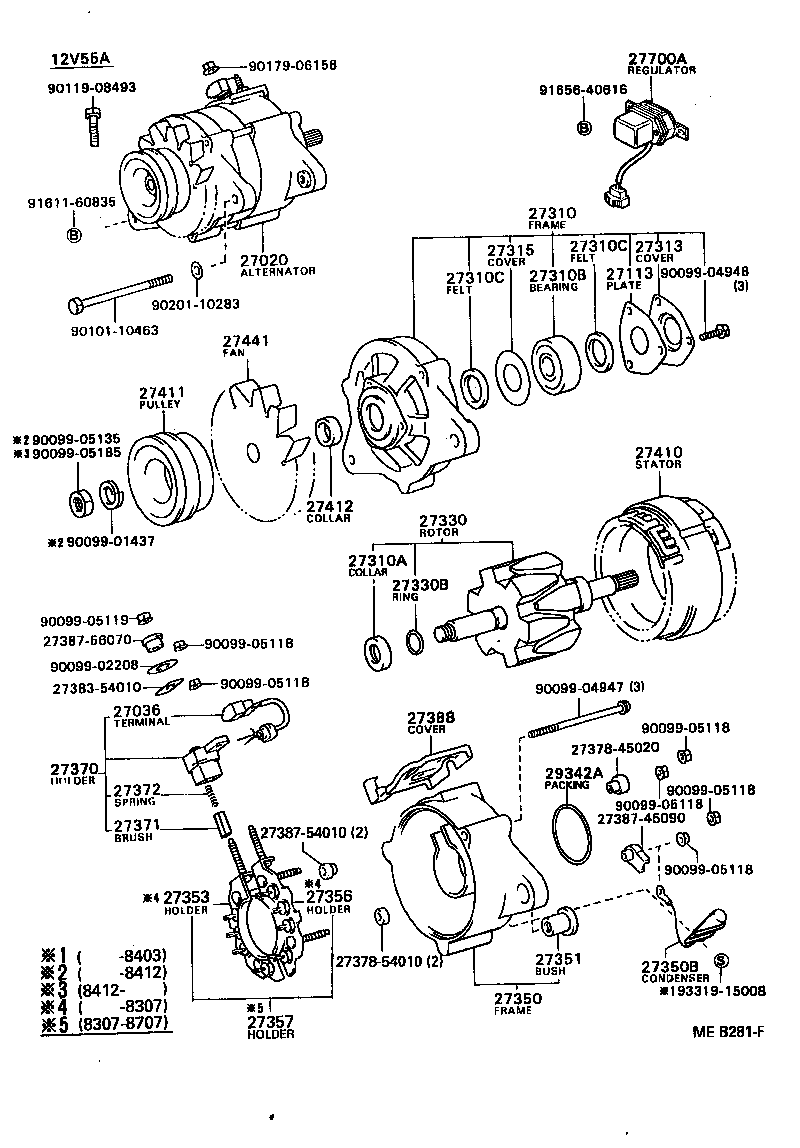

Click highlighted areas on diagram

diagram 27020 27036 27113 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27353 27356 27357 27370 27371 27372 2737845020 2737854010 2738354010 2738745090 2738754010 2738756070 27388 27410 27411 27412 27441 27700A 29342A 9009901437 9009902208 9009904947 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9009905185 9010110463 9011908493 9017906158 9020110283 9161160835 9165640616 9331915008
Part # Description Qty Price
27388 - COVER, ALTERNATOR BRUSH
27388-64010

1C..CE7#

12V 55A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90099-01437
90099-02208
90099-04947
90099-04948
90099-05118
90099-05119
90099-05135
90099-05185
90101-10463
90119-08493
90179-06158
90201-10283
91611-60835
91656-40616
93319-15008
