CE114-AEMES (1995)

Toyota Corolla

Production May 1995 - Apr 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907065 9009907114 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-1A030

CE11#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-1A040

AE11#,CE11#,EE111

 1
88320 - COMPRESSOR ASSY, COOLER
88320-1A290

CE11#

ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AE11#,CE11#,EE111

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-1A010

AE11#,CE11#,EE111

 1
88410 - CLUTCH ASSY, MAGNET
88410-1A100

CE11#

 1
Common parts
90099-04349
90099-07065
90099-07114
93319-15008

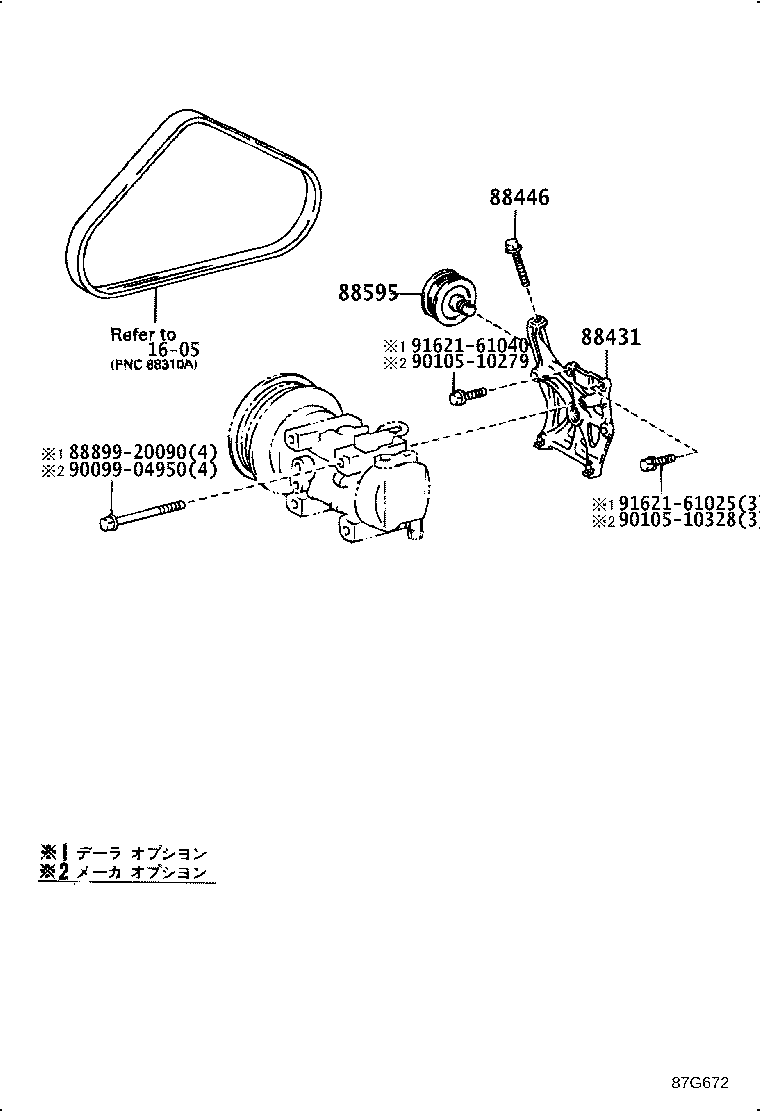

ILLUST NO. 1 OF 2(9505-9705)AE11#..DX,LX,SCRU,SESAL,XESAL ; (9705- )AE110,114

Click highlighted areas on diagram

diagram 1605 88431 88446 88595 8889920090 9009904950 9010510279 9010510328 9162161025 9162161040
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12510

CE11#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-20160

AE110,114

 1
Common parts
88899-20090
90099-04950
90105-10279
90105-10328
91621-61025
91621-61040
Linked diagrams
1605

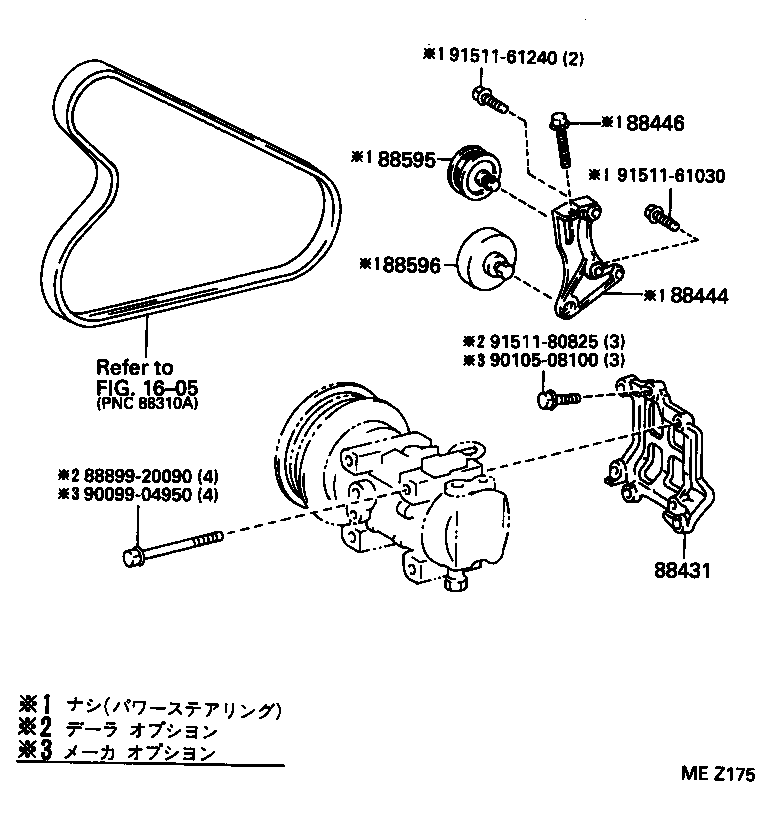

ILLUST NO. 1 OF 2(9505- )CE11#

Click highlighted areas on diagram

diagram 1605 88431 88444 88446 88595 88596 8889920090 9009904950 9010508100 9151161030 9151161240 9151180825
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12510

CE11#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-20160

AE110,114

 1
Common parts
88899-20090
90099-04950
90105-08100
91511-61030
91511-61240
91511-80825
Linked diagrams
1605
