CE113-AEPEE (1998)

Toyota Corolla

Production Apr 1998 - Aug 2000
Engine 3CE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )3CE

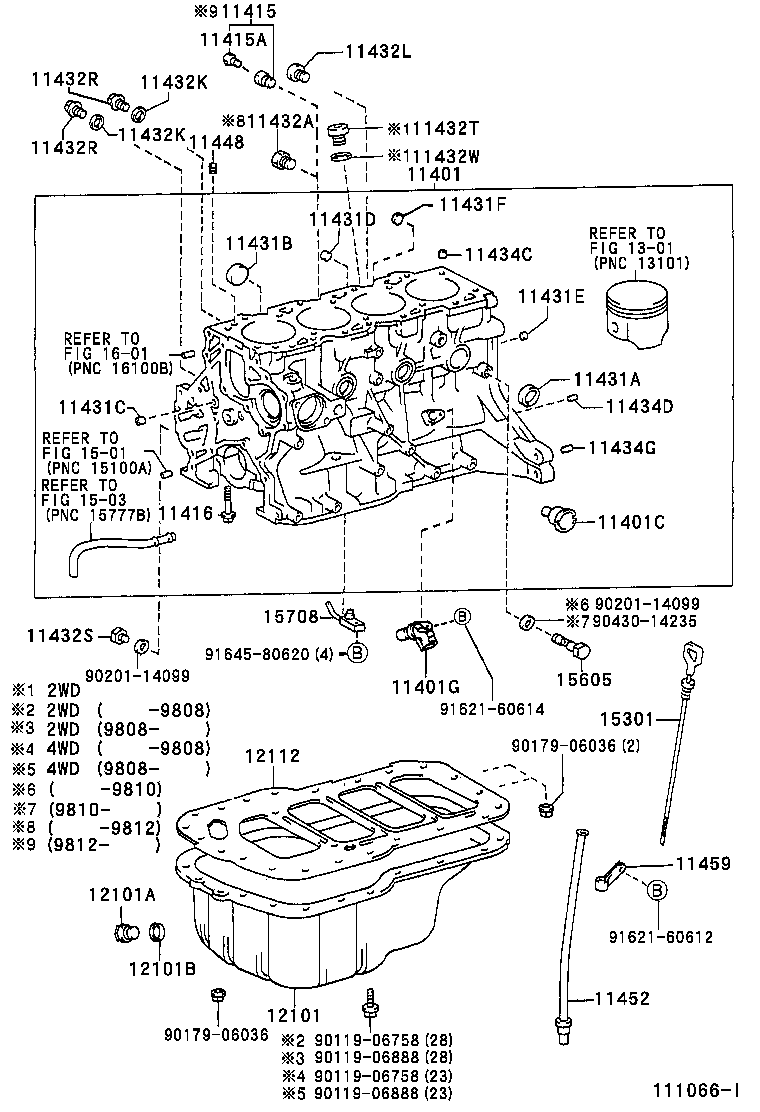

Click highlighted areas on diagram

diagram 11401 11401C 11401G 11415 11415A 11416 11431A 11431B 11431C 11431D 11431E 11431F 11432A 11432K 11432K 11432L 11432R 11432R 11432S 11432T 11432W 11434C 11434D 11434G 11448 11452 11459 12101 12101A 12101B 12112 1301 1501 1503 15301 15605 15708 1601 9011906758 9011906758 9011906888 9011906888 9017906036 9017906036 9020114099 9020114099 9043014235 9162160612 9162160614 9164580620
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69815

3CE..CE113

 1
11401-69856

3CE..CE113

 1
11401-69855

3CE..CE113

 1
11401G - SENSOR, CRANK POSITION
90919-05031

3CE..CE11#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

3CE..CE11#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

3CE..CE11#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02135

3CE..CE11#

 10
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-52003

3CE..CE11#

 1
11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-10027

3CE..CE113

 1
11432K - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-10027

3CE..CE113

 1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-10002

3CE..CE113

 1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-10002

3CE..CE113

 1
12101 - PAN SUB-ASSY, OIL
12101-64141

3CE..CE113

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-64110

3CE..CE11#

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15703-27010

3CE..CE11#

 1
Common parts
90119-06758
90119-06888
90179-06036
90201-14099
90430-14235
91621-60612
91621-60614
91645-80620
Linked diagrams
1301
1501
1503
1601
