CE113-AEMBE (1998)

Toyota Corolla

Production Apr 1998 - Aug 2000
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )3CE..CE113

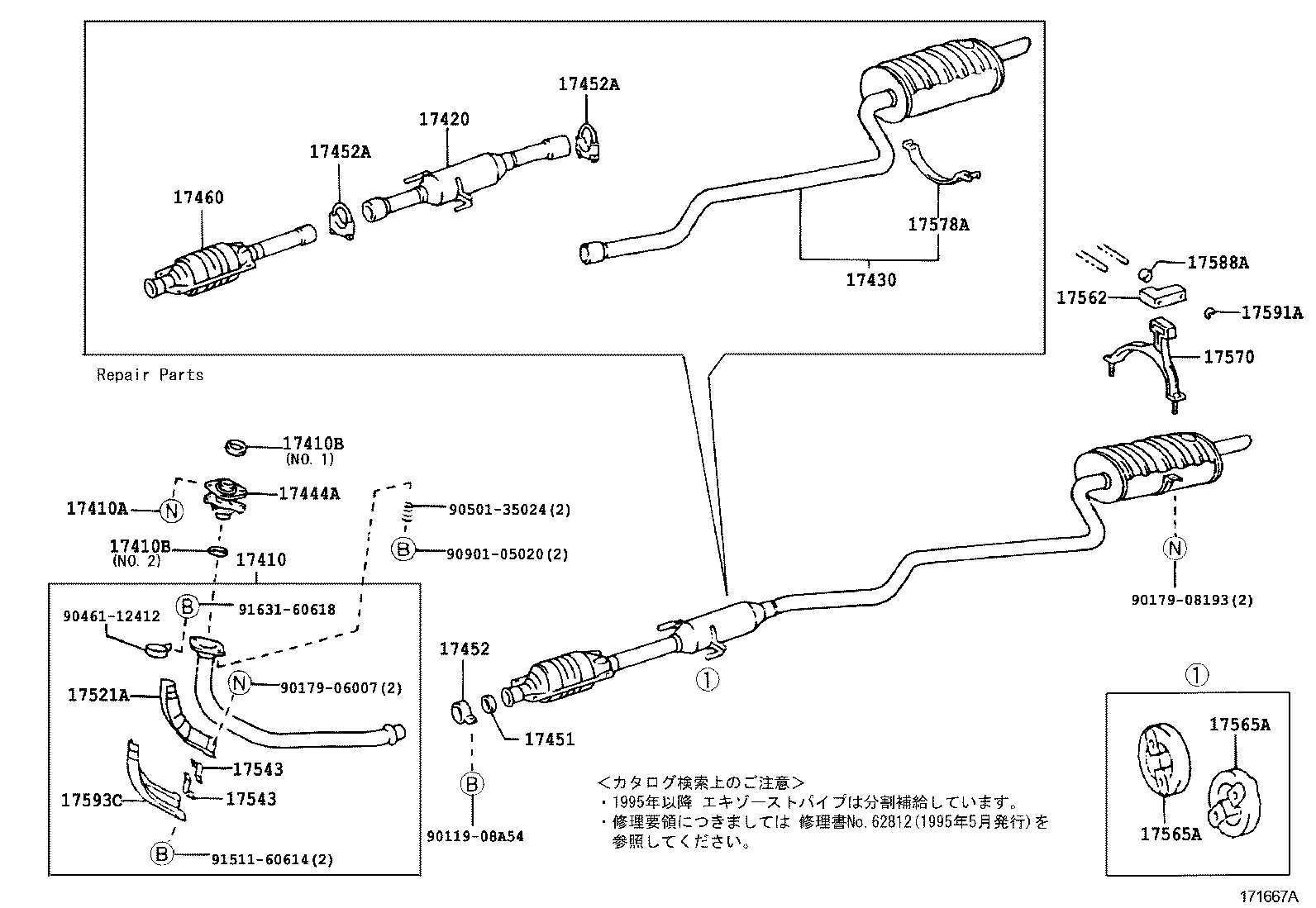

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17420 17430 17444A 17451 17452 17452A 17452A 17460 17521A 17543 17543 17562 17565A 17565A 17570 17578A 17588A 17591A 17593C 9011908A54 9017906007 9017908193 9046112412 9050135024 9090105020 9151160614 9163160618
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64840

3CE..CE113

 1
17410B - GASKET, EXHAUST PIPE
90917-06061

3CE..CE113

NO.1

 1
90917-06080

3CE..CE113

NO.2

 1
17410B - GASKET, EXHAUST PIPE
90917-06061

3CE..CE113

NO.1

 1
90917-06080

3CE..CE113

NO.2

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64330

3CE..CE113

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-6A361

3CE..CE113

 1
17430-6A360

3CE..CE113

 1
17452A - CLAMP, EXHAUST PIPE
17452-16120

3CE..CE113

 1
17452A - CLAMP, EXHAUST PIPE
17452-16120

3CE..CE113

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-64020

3CE..CE113

 1
17578A - CLAMP, MUFFLER
17578-11030

3CE..CE113

 1
Common parts
90119-08A54
90179-06007
90179-08193
90461-12412
90501-35024
90901-05020
91511-60614
91631-60618
