CE110-AEPES (1995)
Toyota Corolla
(9505- )GT,SCRU,SESAL,XESAL
ﾒ-ｶ ｵﾌﾟｼﾖﾝ

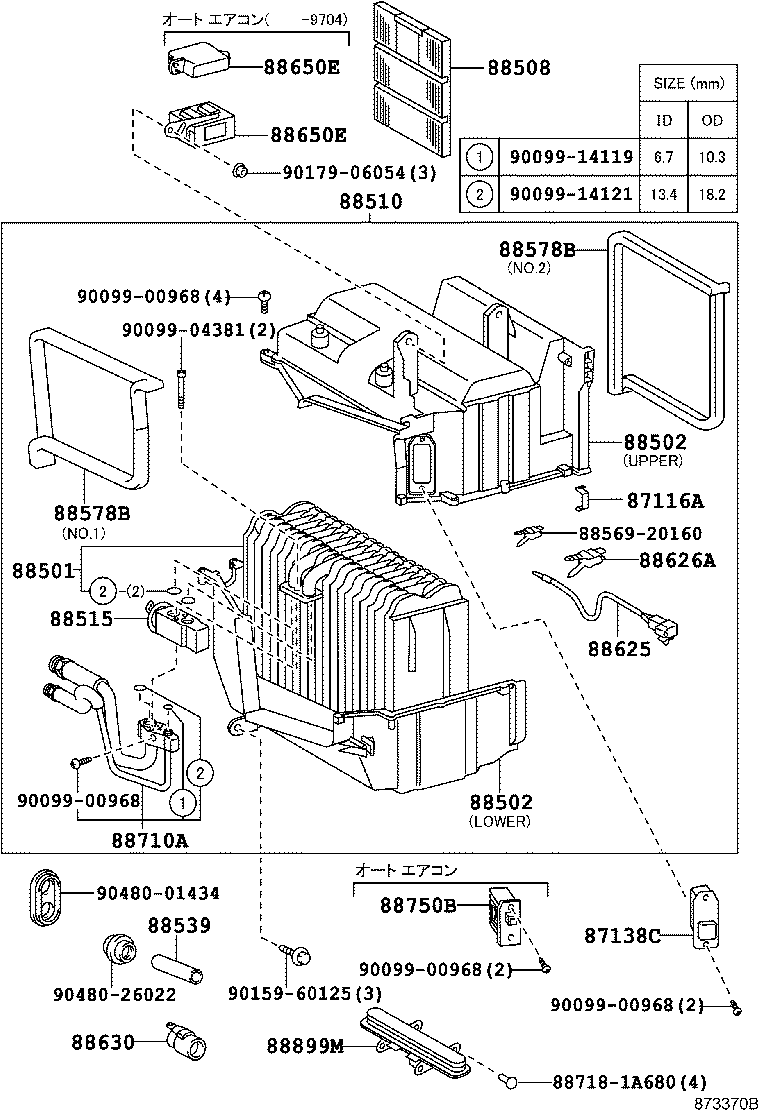

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
AE11#,CE11#..SCRU,SESAL |
3 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-12140 |
AE11#,CE11#,EE111 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12391 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-12200 |
AE11#,CE11#..SCRU,SESAL LOWER |
1 | ||
| 88502-12180 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),UPPER |
1 | ||
| 88502-12190 |
AE11#,CE11#..SCRU,SESAL UPPER |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-12200 |
AE11#,CE11#..SCRU,SESAL LOWER |
1 | ||
| 88502-12180 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),UPPER |
1 | ||
| 88502-12190 |
AE11#,CE11#..SCRU,SESAL UPPER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-1A300 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 88510-1A480 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AE11#,CE11#,EE111 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12120 |
AE11#,CE11#,EE111 |
1 | ||
| 88539-12160 |
AE11#,CE11#..SCRU,SESAL ﾒ-ｶ- ｵﾌﾟｼﾖﾝ,ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20470 |
AE11#,CE11#..SCRU,SESAL NO.2 |
1 | ||
| 88578-12470 |
AE11#,CE11#..SCRU,SESAL NO.1 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20470 |
AE11#,CE11#..SCRU,SESAL NO.2 |
1 | ||
| 88578-12470 |
AE11#,CE11#..SCRU,SESAL NO.1 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12280 |
AE11#,CE11#,EE111 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
AE11#,CE11#,EE111 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-12140 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-1E100 |
CE11#..SESAL ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88650-1E060 |
CE11#..LX,SESAL,XESAL |
1 | ||
| 88650-1E060 |
CE11#..LX,SESAL,XESAL |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-1E100 |
CE11#..SESAL ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88650-1E060 |
CE11#..LX,SESAL,XESAL |
1 | ||
| 88650-1E060 |
CE11#..LX,SESAL,XESAL |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-12330 |
AE11#,CE11#,EE111 |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-12010 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| Common parts | ||||
| 88569-20160 | ||||
| 88718-1A680 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90159-60125 | ||||
| 90179-06054 | ||||
| 90480-01434 | ||||
| 90480-26022 | ||||
