CE110-AEPES (1995)
Toyota Corolla
ILLUST NO. 1 OF 8(9505- )CE11#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82011 - WIRING ASSY, BRAKE WARNING SYSTEM | ||||
| 82011-12020 |
CE11# |
1 | ||
| 82051 - HARNESS ASSY, FUEL CONTROL | ||||
| 82051-12040 |
CE11# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1L440 |
CE110..4FC |
1 | ||
| 82121-1L441 |
CE110..4FC |
1 | ||
| 82121-1N790 |
CE110..4FC..SESAL |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12330 |
CE11# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12081 |
CE11# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08280 |
AE11#,CE11#,EE111 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08246 |
AE11#,CE11#,EE111 100A,ｵｽ端子,青 |
1 | ||
| 90982-08282 |
AE11#,CE11#,EE111 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
CE11# GLOW RESISTER |
1 | ||
| 90982-08257 |
AE11#,CE11#,EE111 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08228 |
AE11#,CE11#,EE111 50A,ｵｽ端子,赤 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE110,114,CE110..4FC |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12240 |
AE114..5F;AE111,CE11#,EE111..3FC,4FC,5F |
1 | ||
| 82620-12240 |
AE11#,CE11#,EE111 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
AE11#,CE11# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22060 |
AE11#,CE11#,EE111 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
AE11#,CE11#,EE111 |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90170-06011 | ||||
| 90950-01813 | ||||
| 91651-60616 | ||||
| 94612-10601 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 8(9505- )
ﾋﾕ-ｼﾞﾌﾞﾙﾘﾝｸ ﾘﾍﾟｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12080 |
CE11# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12080 |
CE11# |
1 | ||

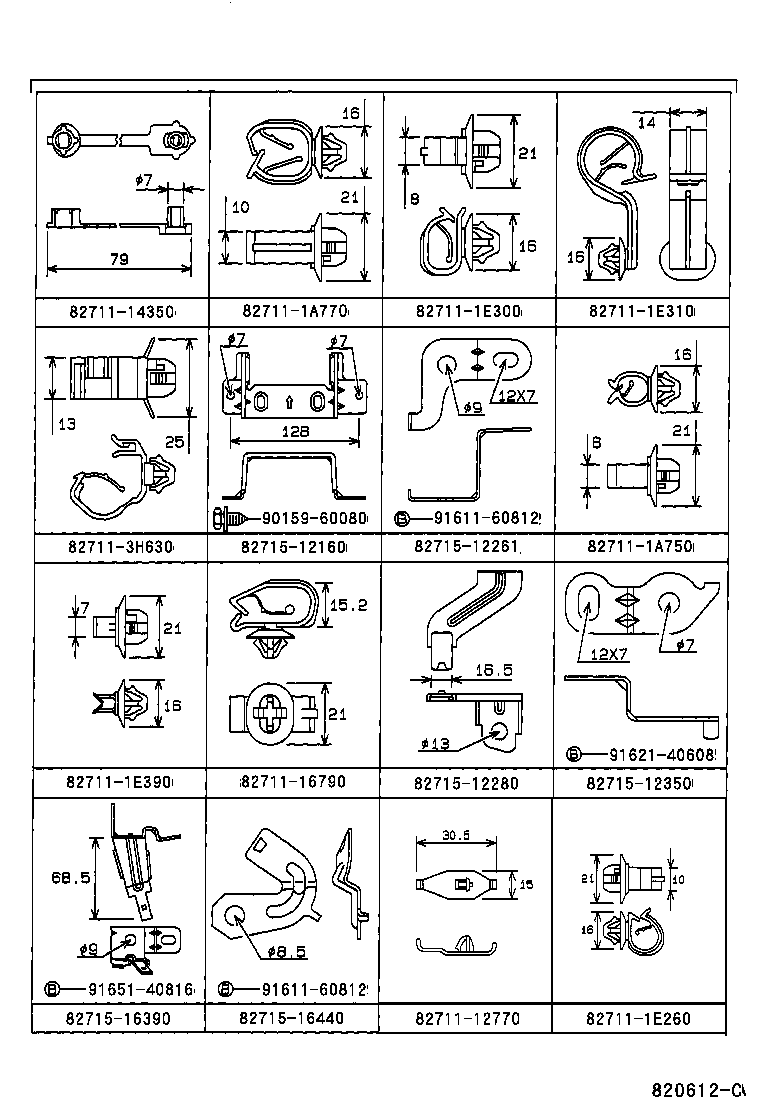

ILLUST NO. 5 OF 8(9505- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-16790 | ||||
| 82711-1A750 | ||||
| 82711-1A770 | ||||
| 82711-1E260 | ||||
| 82711-1E300 | ||||
| 82711-1E310 | ||||
| 82711-1E390 | ||||
| 82711-3H630 | ||||
| 82715-12160 | ||||
| 82715-12261 | ||||
| 82715-12280 | ||||
| 82715-12350 | ||||
| 82715-16390 | ||||
| 82715-16440 | ||||
| 90159-60080 | ||||
| 91611-60812 | ||||
| 91621-40608 | ||||
| 91651-40816 | ||||
ILLUST NO. 2 OF 8(9505- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1H220 |
CE11# |
1 | ||
| 82111-1H231 |
CE11#..SESAL,XESAL |
1 | ||
| 82111-1H230 |
CE11# ｱﾘ(*66) |
1 | ||
| 82111-1H610 |
CE11# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08280 |
AE11#,CE11#,EE111 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08246 |
AE11#,CE11#,EE111 100A,ｵｽ端子,青 |
1 | ||
| 90982-08282 |
AE11#,CE11#,EE111 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
CE11# GLOW RESISTER |
1 | ||
| 90982-08257 |
AE11#,CE11#,EE111 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08228 |
AE11#,CE11#,EE111 50A,ｵｽ端子,赤 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08280 |
AE11#,CE11#,EE111 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08246 |
AE11#,CE11#,EE111 100A,ｵｽ端子,青 |
1 | ||
| 90982-08282 |
AE11#,CE11#,EE111 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
CE11# GLOW RESISTER |
1 | ||
| 90982-08257 |
AE11#,CE11#,EE111 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08228 |
AE11#,CE11#,EE111 50A,ｵｽ端子,赤 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06539 | ||||
| 91515-G0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8414 | ||||
ILLUST NO. 3 OF 8(9505- )
ｶｳﾙ,ｲﾝﾊﾟﾈ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-1L340 |
CE11#..SESAL |
1 | ||
| 82131-1L360 |
AE114..4FC..SESAL;AE110,111,CE11#..SCRU,SESAL ｱﾘ(*66) |
1 | ||
| 82131-1L370 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82131-1L110 |
CE11#..SESAL ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82131-1L361 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 82131-1L510 |
AE11#,CE11#..GT,SESAL |
1 | ||
| 82131-1L520 |
AE11#,CE11#..GT,SESAL ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1H680 |
AE110,111,CE110..4FC..(SCRU,SESAL) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82141-1H670 |
AE111,CE110..4FC..(SCRU,SESAL) |
1 | ||
| 82141-1K830 |
AE110,111,CE110..4FC..(SCRU,SESAL) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82141-1K820 |
AE111,CE110..4FC..(SCRU,SESAL) |
1 | ||
| 82141-1L850 |
AE110,111,CE110..GT,SESAL ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82141-1L840 |
AE110,111,CE110..GT,SESAL |
1 | ||
| 82141-1L851 |
AE110,111,CE110..GT,SESAL ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 82141-1L841 |
AE110,111,CE110..GT,SESAL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08280 |
AE11#,CE11#,EE111 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08246 |
AE11#,CE11#,EE111 100A,ｵｽ端子,青 |
1 | ||
| 90982-08282 |
AE11#,CE11#,EE111 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
CE11# GLOW RESISTER |
1 | ||
| 90982-08257 |
AE11#,CE11#,EE111 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08228 |
AE11#,CE11#,EE111 50A,ｵｽ端子,赤 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
AE11#,CE11#,EE111 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
AE110..5F..SESAL;AE110..DX,LX,XESAL;AE111,114,CE11#,EE111 |
2 | ||
| 82824-12220 |
AE111,CE110..4FC;CE110..5F..(DX,LX,XESAL);AE110,114,CE114,EE111..DX,LX,XESAL NATURAL |
1 | ||
| 82824-12210 |
AE110,111,CE110..4FC..(SCRU,SESAL) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),ﾌﾞﾗｯｸ |
3 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
AE110..5F..SESAL;AE110..DX,LX,XESAL;AE111,114,CE11#,EE111 |
2 | ||
| 82824-12220 |
AE111,CE110..4FC;CE110..5F..(DX,LX,XESAL);AE110,114,CE114,EE111..DX,LX,XESAL NATURAL |
1 | ||
| 82824-12210 |
AE110,111,CE110..4FC..(SCRU,SESAL) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),ﾌﾞﾗｯｸ |
3 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| Common parts | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 8(9505- )
ﾙ-ﾌ,ﾄﾞｱ,ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1A470 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) OR ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82151-1A500 |
AE110,114,CE11#..SESAL ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-1A450 |
AE110,114,CE11#..SESAL ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-1A510 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) OR ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82151-1A461 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 82151-1A460 |
AE110,114,CE11#..SESAL |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-1A230 |
AE110,114,CE11#..SESAL |
1 | ||
| 82152-1A250 |
AE110,114,CE11#..SESAL ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-1A220 |
AE110,114,CE11#..SESAL ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-1A240 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 82152-1A260 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 82152-1A231 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12330 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12320 |
AE11#,CE11#..SCRU,SESAL |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1L230 |
AE110,111,CE110..SCRU,SESAL ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 82161-1L240 |
AE110,111,CE110,EE111 ｱﾘ(*66) |
1 | ||
| 82161-1L231 |
AE110,111,CE110..SCRU,SESAL ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 82161-1L221 |
AE110,111,CE110..SCRU,SESAL |
1 | ||
| 82161-1L220 |
AE110,111,CE110..SCRU,SESAL |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12620 |
AE11#,CE11#,EE111 |
1 | ||
| 82171-12640 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-12630 |
AE11#,CE11#,EE111..SCRU,SESAL,XESAL ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-70003 | ||||
| 90950-06107 | ||||
| 90950-06108 | ||||
| Linked diagrams | ||||
| 5804 | ||||
| 8401 | ||||
ILLUST NO. 5 OF 8(9505- )

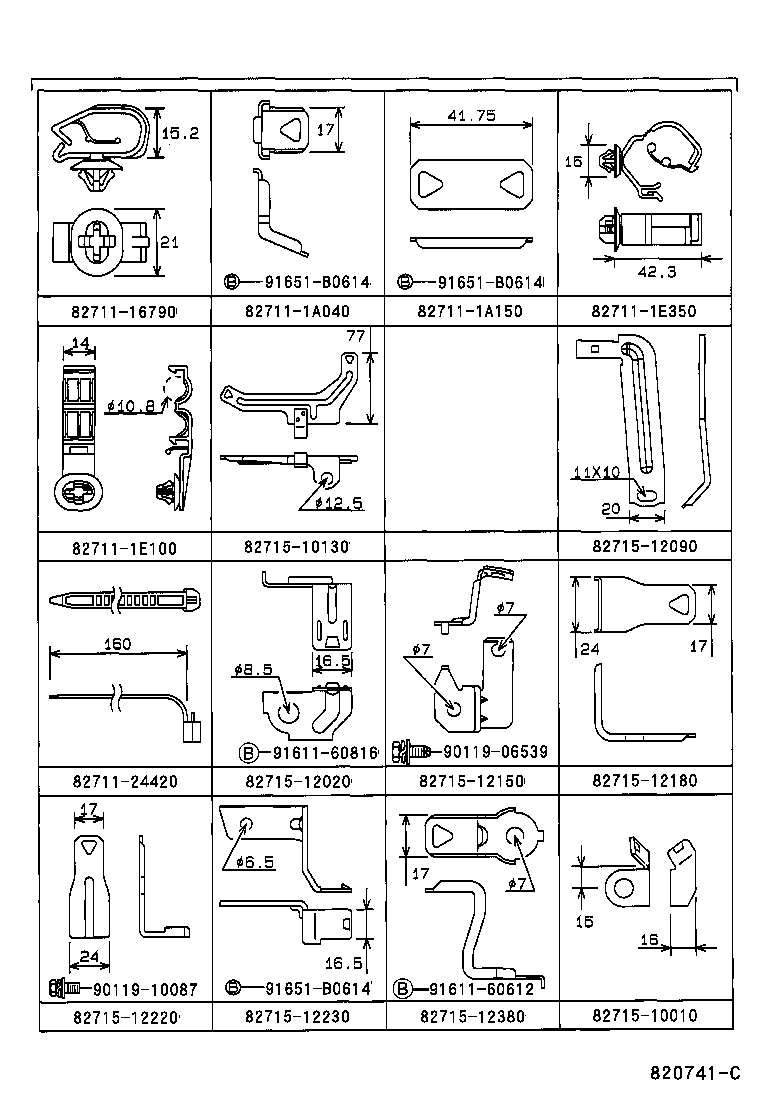

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1E100 | ||||
| 82711-1E350 | ||||
| 82711-24420 | ||||
| 82715-10010 | ||||
| 82715-10130 | ||||
| 82715-12020 | ||||
| 82715-12090 | ||||
| 82715-12150 | ||||
| 82715-12180 | ||||
| 82715-12220 | ||||
| 82715-12230 | ||||
| 82715-12380 | ||||
| 90119-06539 | ||||
| 90119-10087 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91651-B0614 | ||||
ILLUST NO. 5 OF 8(9505- )

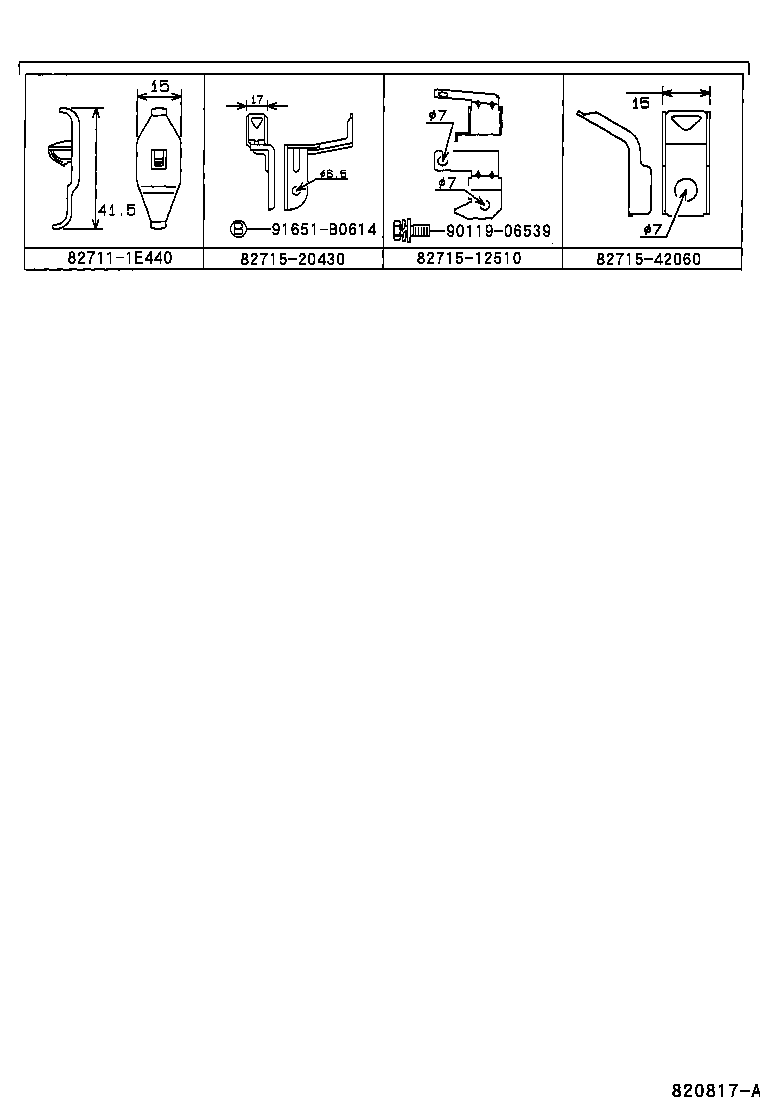

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E440 | ||||
| 82715-12510 | ||||
| 82715-20430 | ||||
| 82715-42060 | ||||
| 90119-06539 | ||||
| 91651-B0614 | ||||

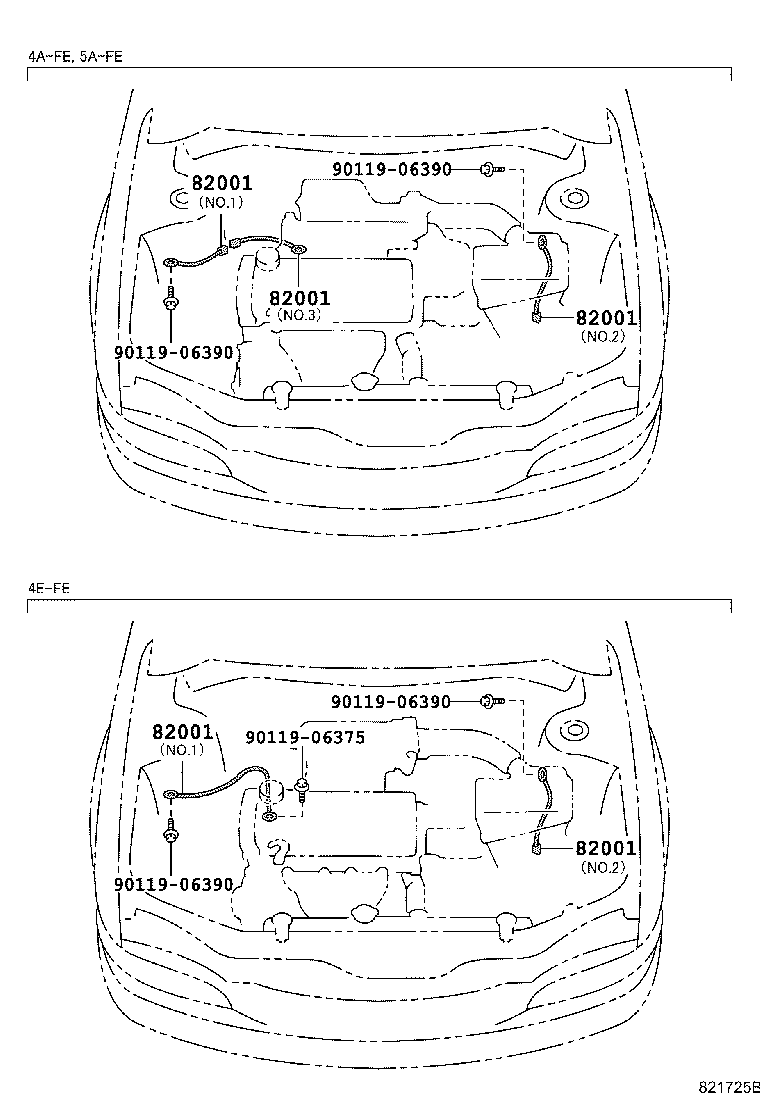

ILLUST NO. 6 OF 8(9505- )DX,LX,SCRU,SESAL,XESAL
ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06375 | ||||
| 90119-06390 | ||||
ILLUST NO. 8 OF 8(9505- )

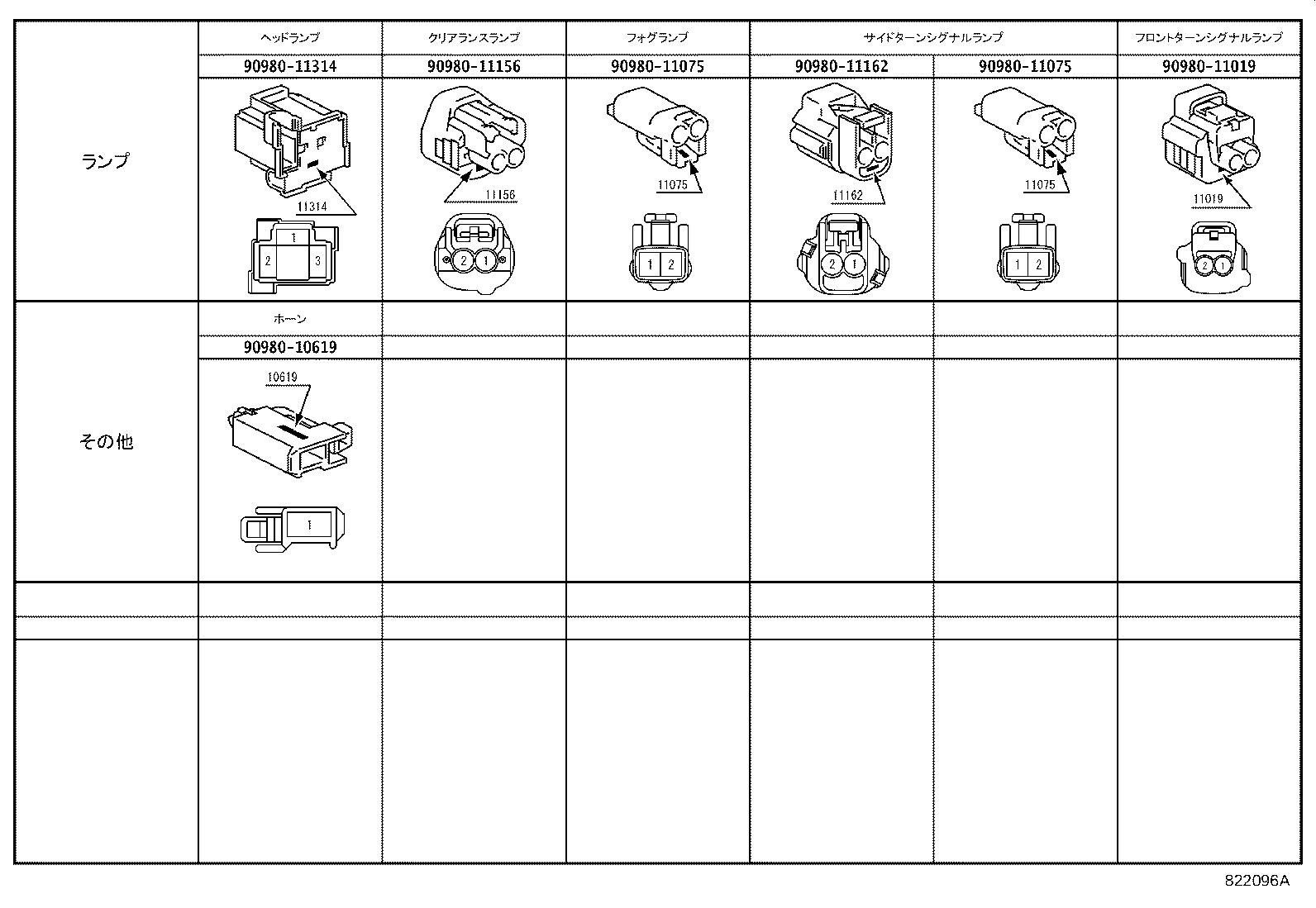

ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11019 | ||||
| 90980-11075 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
