CE110-AEPES (1995)

Toyota Corolla

Production May 1995 - Apr 1998
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

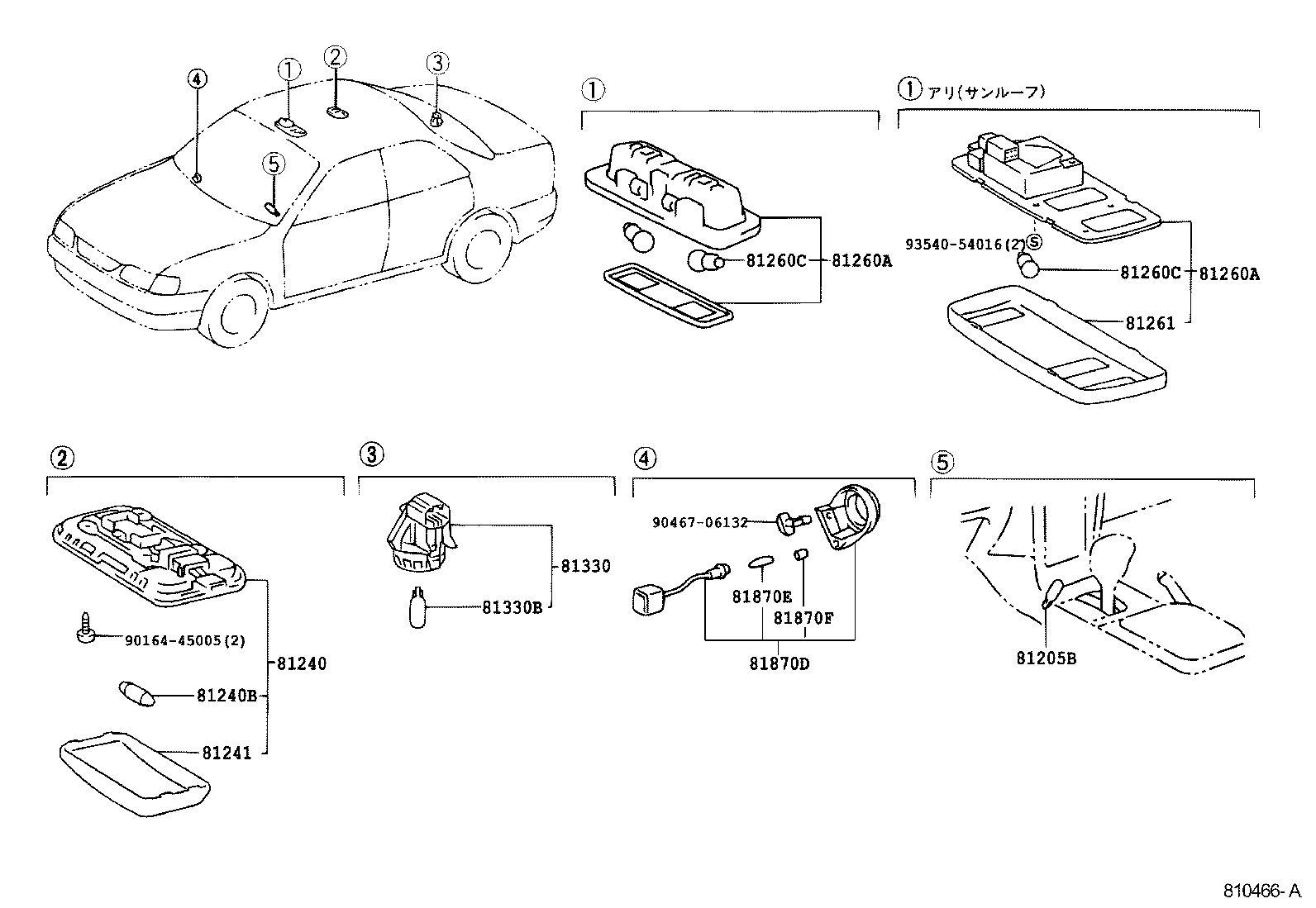

Click highlighted areas on diagram

diagram 81205B 81240 81240B 81241 81260A 81260A 81260C 81260C 81261 81330 81330B 81870D 81870E 81870F 9016445005 9046706132 9354054016
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

AE11#,CE11#,EE111

12V 1.2W ｿｹｯﾄ無し

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12080A0

AE110,114,CE11#,EE111..SESAL,XESAL

IVORY,TRIM4#

 1
81240-12060B3

AE11#,CE11#,EE111

LT.GRAY,TRIM1#

 1
81240-12060B3

AE110,114,CE11#,EE111

LT.GRAY,TRIM1#

 1
81240-12080B0

AE11#,CE11#,EE111

LT.GRAY,TRIM1#

 1
81240-12060A1

AE110,114,CE11#,EE111..SESAL,XESAL

IVORY,TRIM4#

 1
81240-12060B6

AE11#,CE11#,EE111..GT,SESAL,XESAL

MD.CHARCOAL,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

AE11#,CE11#,EE111

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AE11#,CE11#,EE111

 1
81260A - LAMP ASSY, MAP
81260-12100B1

CE11#..SESAL

MD.CHARCOAL,TRIM14

 1
81260-12100B3

CE11#..SESAL

LT.GRAY,TRIM11

 1
81260-20160A0

AE110,114,CE11#..SESAL

IVORY,TRIM4#

 1
81260-20160B1

CE11#..SESAL

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM11

 1
81260-20160B1

AE110,114,CE11#..SESAL

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81260-20160B2

CE11#..SESAL

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM14

 1
81260A - LAMP ASSY, MAP
81260-12100B1

CE11#..SESAL

MD.CHARCOAL,TRIM14

 1
81260-12100B3

CE11#..SESAL

LT.GRAY,TRIM11

 1
81260-20160A0

AE110,114,CE11#..SESAL

IVORY,TRIM4#

 1
81260-20160B1

CE11#..SESAL

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM11

 1
81260-20160B1

AE110,114,CE11#..SESAL

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81260-20160B2

CE11#..SESAL

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM14

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AE11#,CE11#..SCRU,SESAL

12V 10W,ｱﾘ(ｻﾝﾙ-ﾌ)

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AE11#,CE11#..SCRU,SESAL

12V 10W,ｱﾘ(ｻﾝﾙ-ﾌ)

 1
81261 - LENS AND COVER, MAP LAMP
81261-20160B2

AE11#,CE11#..SCRU,SESAL

LT.GRAY,TRIM1#

 1
81261-20160A0

AE110,114,CE11#..SESAL

IVORY,TRIM4#

 1
81261-20160B4

CE11#..SESAL

MD.CHARCOAL,TRIM14

 1
81261-20160B2

CE11#..SESAL

LT.GRAY,TRIM11

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-12020

AE11#,CE11#..SCRU,SESAL

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

AE11#,CE11#..SCRU,SESAL

12V 3.8W

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-32051

AE11#,CE11#..SCRU,SESAL

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

AE11#,CE11#..SCRU,SESAL

12V 1.2W ｿｹｯﾄ無し

 1
81870F - CAP, KEY CYLINDER LAMP BULB
84998-10070

AE11#,CE11#..SCRU,SESAL

 1
Common parts
90164-45005
90467-06132
93540-54016
