CE110-AEPES (1995)

Toyota Corolla

Production May 1995 - Apr 1998
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

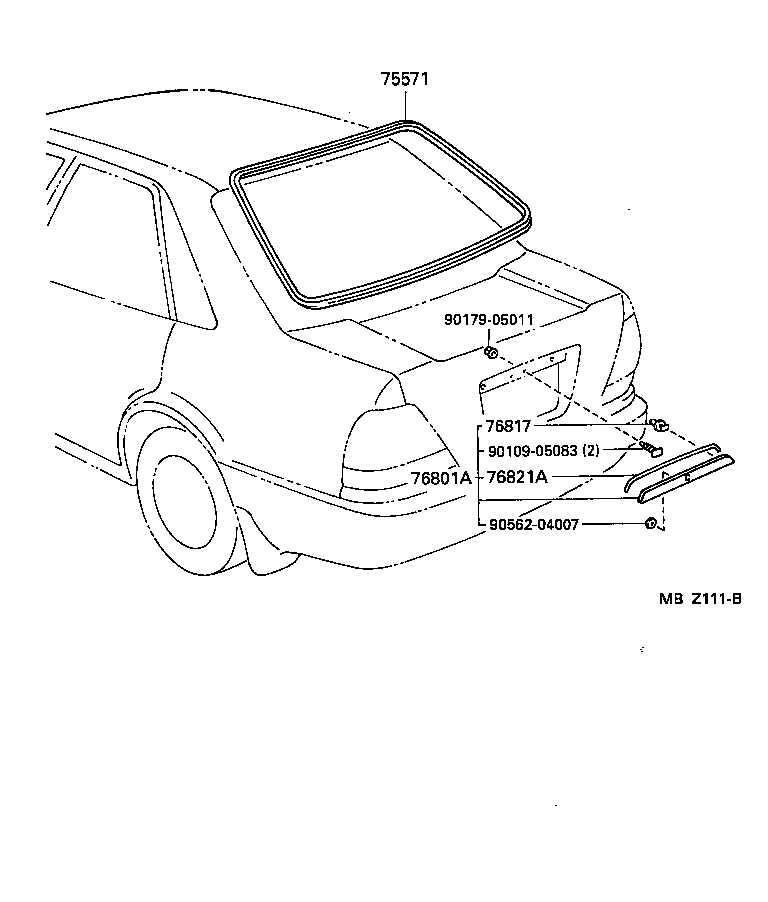

Click highlighted areas on diagram

diagram 75571 76801A 76817 76821A 9010905083 9017905011 9056204007
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-12670

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

 1
75571-12670

AE110,114,CE11#,EE111..SESAL,XESAL

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-12490G1

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

MD.GREEN M.M.,6P0

 1
76801-12490B2

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

SILVER ME,199

 1
76801-12490B0

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

WARM GRAY PEARL ME.,1A5

 1
76801-12490B1

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

BL.GRAY ME,182

 1
76801-12490D0

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

RED MM,3K4

 1
76801-12490G0

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

DK GREEN MICA,6M1

 1
76801-12490J0

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

DK.BLUE M.M.,8L2

 1
76801-12490B1

AE110,114,CE11#,EE111..SESAL,XESAL

BL.GRAY ME,182

 1
76801-43020

AE110,114,CE11#..SESAL

ﾒﾂｷｼﾖｳ

 1
76801-12490A0

AE11#,CE11#,EE111..SCRU,SESAL,XESAL

SUPER WHITE 2,040

 1
76801-12490G0

AE110,114,CE11#,EE111..SESAL,XESAL

DK GREEN MICA,6M1

 1
76801-12580D0

AE110..5F..SESAL;AE110..4FC..(SESAL,XESAL);AE111,114,CE11#,EE111..GT,SESAL,XESAL

RED MM,3K4

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12050

AE11#,CE11#,EE111

 2
76817-23010

AE110,114,CE11#..SESAL

ﾒﾂｷｼﾖｳ ﾖｳ

 2
76817-23010

AE110,114,CE11#..SESAL

ﾒﾂｷｼﾖｳ ﾖｳ

 2
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-12090

AE11#,CE11#,EE111

 1
Common parts
90109-05083
90179-05011
90562-04007
