CE110-AEPES (1995)

Toyota Corolla

Production May 1995 - Apr 1998
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

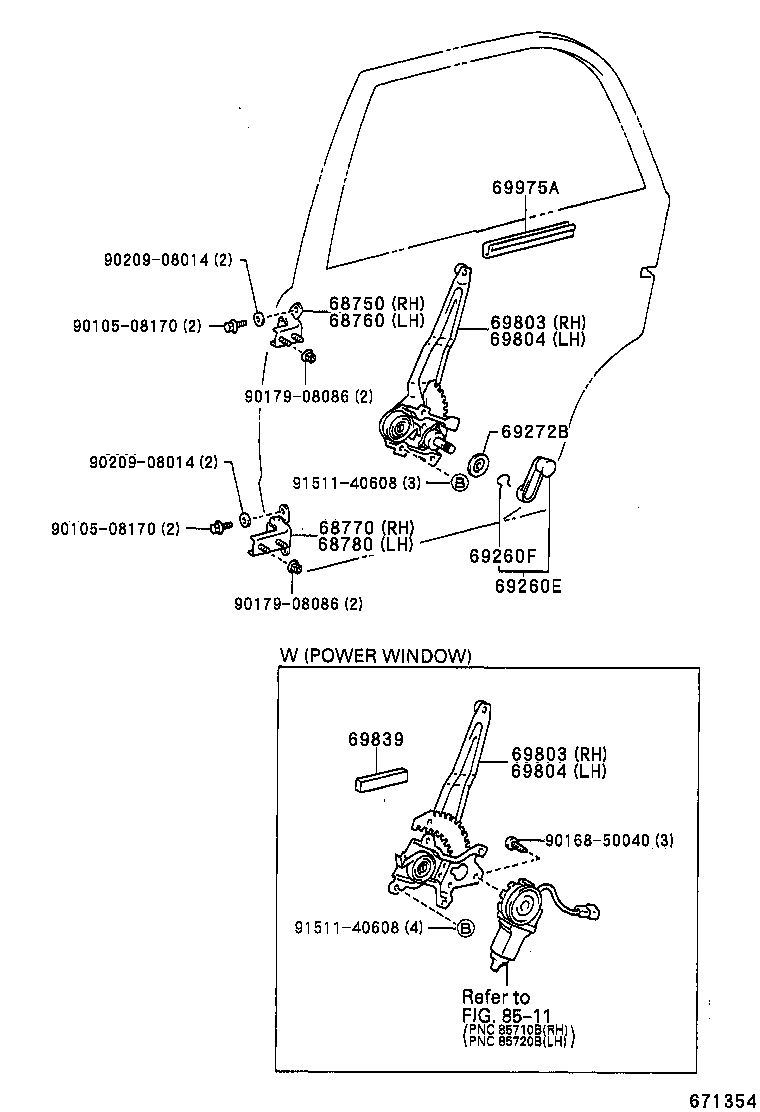

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69839 69975A 9010508170 9010508170 9016850040 9017908086 9017908086 9020908014 9020908014 9151140608 9151140608
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32060

AE11#,CE11#,EE111

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32060

AE11#,CE11#,EE111

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-12100

AE11#,CE11#,EE111

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-12090

AE11#,CE11#,EE111

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-12130

AE11#,CE11#..SCRU,SESAL

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-12130

AE11#,CE11#..SCRU,SESAL

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-12130

AE11#,CE11#..SCRU,SESAL

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-12130

AE11#,CE11#..SCRU,SESAL

 1
69839 - PAD, REAR DOOR WINDOW REGULATOR
69839-12020

AE11#,CE11#,EE111..LX,SCRU,SESAL,XESAL

 4
Common parts
90105-08170
90168-50040
90179-08086
90209-08014
91511-40608
