CE110-AEPES (1995)
Toyota Corolla
ILLUST NO. 3 OF 3(9505-9704)

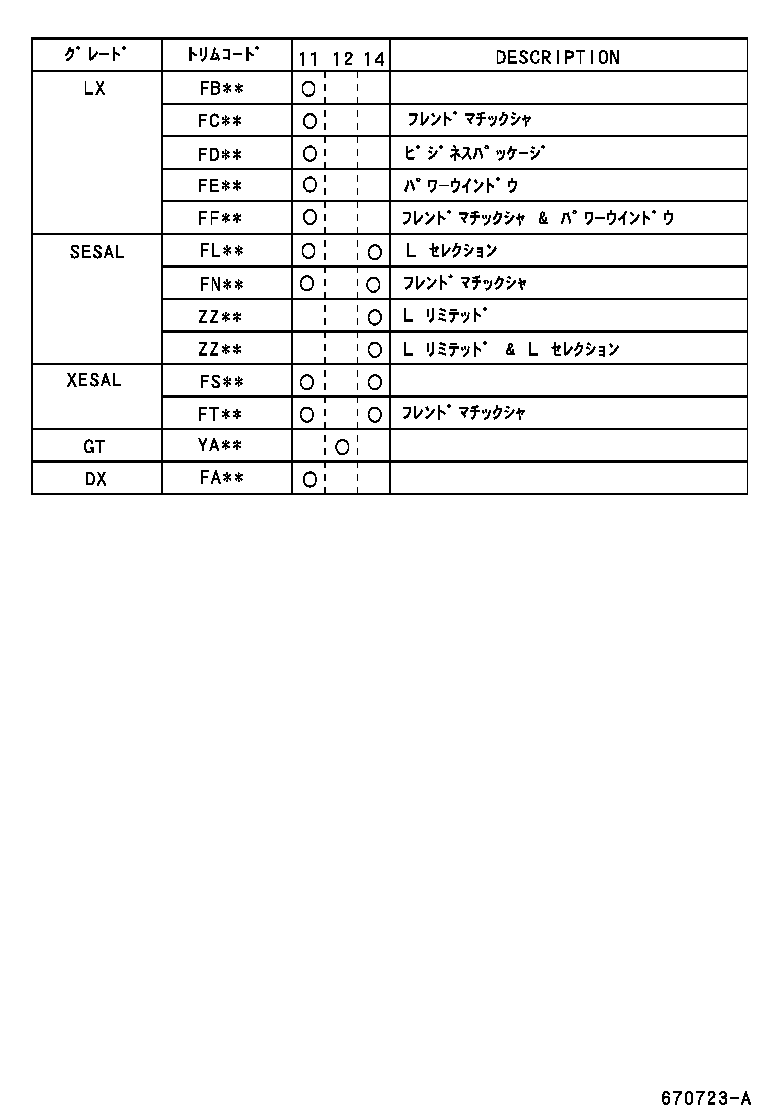

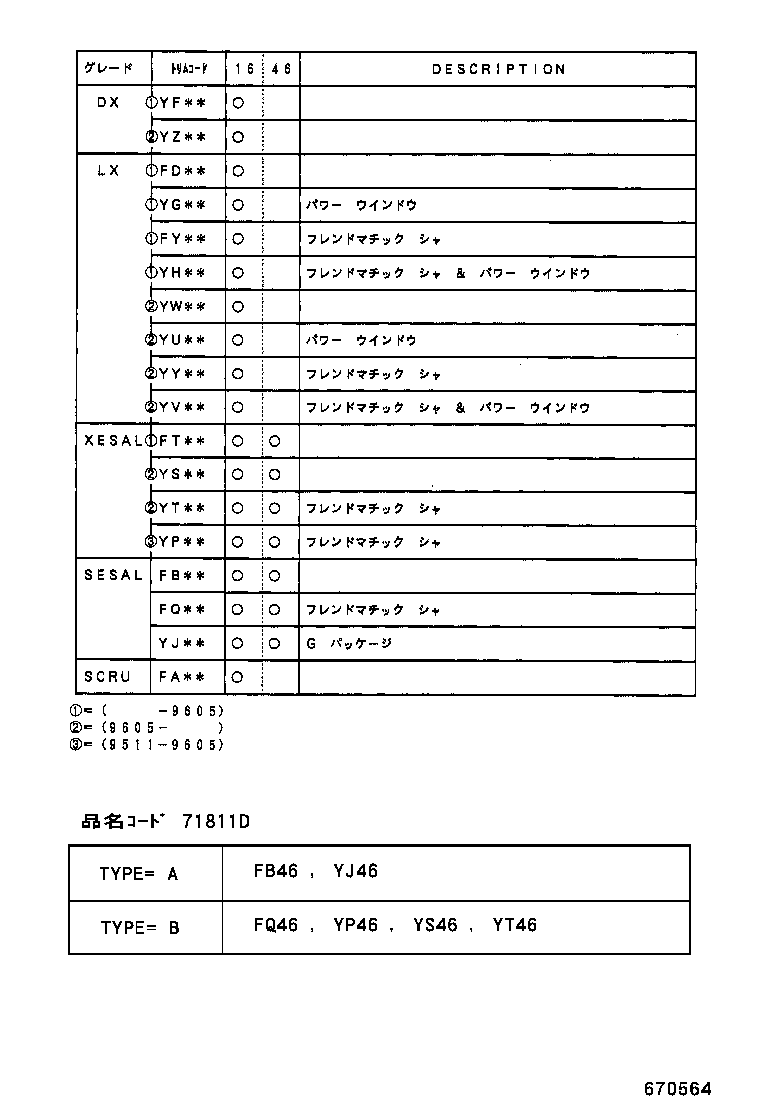

TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(9704- )
TRIM CODE TABLE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A460 |
AE11#,CE11#,EE111 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A440 |
AE11#,CE11#,EE111 |
1 | ||
| 67165 - EXTENSION,FRONT DOOR INSIDE PANEL REINFORCEMENT, FRONT | ||||
| 67165-12010 |
AE110,114,CE11#,EE111 |
2 | ||
| 67165-12010 |
AE11#,CE11#,EE111 |
2 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12200 |
AE11#,CE11#,EE111 |
1 | ||
| 67403-12210 |
AE11#,CE11#,EE111 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12160 |
AE11#,CE11#,EE111 |
1 | ||
| 67404-12210 |
AE11#,CE11#,EE111 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-12210 |
AE11#,CE11#,EE111 |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-12210 |
AE11#,CE11#,EE111 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12550 |
AE11#,CE11#,EE111 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12350 |
AE11#,CE11#,EE111 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12830 |
AE11#,CE11#,EE111 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12790 |
AE11#,CE11#,EE111 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AE11#,CE11#,EE111 |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AE11#,CE11#,EE111 |
14 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12050 |
AE11#,CE11#,EE111 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-1A390 |
AE11#,CE11#,EE111..GT,LX,SESAL,XESAL *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68101-1A160 |
AE110,114,CE11#,EE111..SESAL,XESAL *UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-1A160 |
AE110,114,CE11#..SESAL *UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,30TH ANNIVERSARY *(A) |
1 | ||
| 68101-12820 |
AE11#,CE11#,EE111 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68101-12820 |
AE110,114,CE11#,EE111 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12820 |
AE110,114,CE11#,EE111 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102-1A360 |
AE110,114,CE11#,EE111..SESAL,XESAL *UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-1A360 |
AE110,114,CE11#..SESAL *UVCTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,30TH ANNIVERSARY *(A) |
1 | ||
| 68102-1A390 |
AE11#,CE11#,EE111..GT,LX,SESAL,XESAL *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102-12820 |
AE11#,CE11#,EE111 *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12470 |
AE11#,CE11#,EE111 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12180 |
AE11#,CE11#,EE111 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-12060 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 68610-12150 |
AE11#,CE11#,EE111 右側 |
1 | ||
| Common parts | ||||
| 90105-06229 | ||||
| 90149-80030 | ||||
| 90159-60490 | ||||
| 90159-60550 | ||||
| 90269-05035 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
| 90950-01429 | ||||
ILLUST NO. 1 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12360 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 67491-12270 |
AE11#,CE11#,EE111 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12360 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 67491-12270 |
AE11#,CE11#,EE111 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12360 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 67492-12350 |
AE11#,CE11#,EE111 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12360 |
AE11#,CE11#..SCRU,SESAL ｱﾘ(ﾗｲﾌﾞｻｳﾝﾄﾞ ｼｽﾃﾑ) |
1 | ||
| 67492-12350 |
AE11#,CE11#,EE111 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
AE11#,CE11#,EE111 |
2 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
AE11#,CE11#,EE111 |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1H510B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H450E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 67650-1H510E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 67650-1H450B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H890E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 67610-1K090B3 |
AE110,114,CE11#..SESAL MD. GRAY,TRIM11 |
1 | ||
| 67610-1K090B6 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1H510B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H450E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 67650-1H510E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 67650-1H450B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H890E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 67610-1K090B3 |
AE110,114,CE11#..SESAL MD. GRAY,TRIM11 |
1 | ||
| 67610-1K090B6 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06133E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
4 | ||
| 90467-06133B0 |
AE11#,CE11#..SCRU,SESAL SHADOW GRAY,TRIM1# |
4 | ||
| 90467-06133B4 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
4 | ||
| 90467-06133C0 |
AE110,114,CE11#..SESAL BLACK,TRIM11,14 |
4 | ||
| 90467-06133B5 |
AE110,114,CE11#..SESAL MD.GRAY,TRIM11 |
4 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06133E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
4 | ||
| 90467-06133B0 |
AE11#,CE11#..SCRU,SESAL SHADOW GRAY,TRIM1# |
4 | ||
| 90467-06133B4 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
4 | ||
| 90467-06133C0 |
AE110,114,CE11#..SESAL BLACK,TRIM11,14 |
4 | ||
| 90467-06133B5 |
AE110,114,CE11#..SESAL MD.GRAY,TRIM11 |
4 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AE11#,CE11#..SCRU,SESAL ﾚｯﾄﾞ |
6 | ||
| 67771-16170 |
AE11#,CE11#,EE111 ｾ-ﾌﾞﾙ |
2 | ||
| 67771-12050 |
AE11#,CE11#,EE111..SCRU,SESAL,XESAL ﾚｯﾄﾞ |
6 | ||
| 67771-16170 |
AE11#,CE11#,EE111..DX,LX,SCRU,SESAL ｾ-ﾌﾞﾙ |
7 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
AE11#,CE11#..SCRU,SESAL ﾚｯﾄﾞ |
6 | ||
| 67771-16170 |
AE11#,CE11#,EE111 ｾ-ﾌﾞﾙ |
2 | ||
| 67771-12050 |
AE11#,CE11#,EE111..SCRU,SESAL,XESAL ﾚｯﾄﾞ |
6 | ||
| 67771-16170 |
AE11#,CE11#,EE111..DX,LX,SCRU,SESAL ｾ-ﾌﾞﾙ |
7 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1K710B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N580E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 67620-1N580B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K710E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 67050-12460E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 67050-12510B3 |
AE110,114,CE11#..SESAL MD. GRAY,TRIM11 |
1 | ||
| 67050-12510B6 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1K710B0 |
AE110,114,CE11#..SESAL SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N580E0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 67620-1N580B0 |
AE110,114,CE11#..SESAL G ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1K710E0 |
AE110,114,CE11#..SESAL OAK,TRIM4# |
1 | ||
| 67050-12460E0 |
AE110,114,CE11#..SESAL 30TH ANNIVERSARY *(A),OAK,TRIM4# |
1 | ||
| 67050-12510B3 |
AE110,114,CE11#..SESAL MD. GRAY,TRIM11 |
1 | ||
| 67050-12510B6 |
AE110,114,CE11#..SESAL MD.CHARCOAL,TRIM14 |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16170 |
AE11#,CE11#,EE111 ｾ-ﾌﾞﾙ |
7 | ||
| 67771-12050 |
AE11#,CE11#..SCRU,SESAL ﾚｯﾄﾞ |
6 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16170 |
AE11#,CE11#,EE111 ｾ-ﾌﾞﾙ |
7 | ||
| 67771-12050 |
AE11#,CE11#..SCRU,SESAL ﾚｯﾄﾞ |
6 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12170 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 68171-12250 |
AE11#,CE11#,EE111 右側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-12170 |
AE11#,CE11#,EE111 左側 |
1 | ||
| 68171-12250 |
AE11#,CE11#,EE111 右側 |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12070B2 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
2 | ||
| 69751-12070E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM4# |
2 | ||
| 69751-12070B1 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE11#,CE11#,EE111 SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12070B2 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.GRAY,TRIM11 |
2 | ||
| 69751-12070E0 |
AE110,114,CE11#,EE111..SESAL,XESAL OAK,TRIM4# |
2 | ||
| 69751-12070B1 |
AE110,114,CE11#,EE111..SESAL,XESAL MD.CHARCOAL,TRIM14 |
2 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90901-89022 | ||||
| 90950-06105 | ||||
