CE110-AEPES (1995)
Toyota Corolla
(9505- )CE110,113..4FC
A241L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-32010 |
CE110..4FC 歯数=25,ﾏｰｸ無し |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-20014 |
CE110..4FC |
1 | ||
| 35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING) | ||||
| 90210-13002 |
AE11#,CE110..4FC |
1 | ||
| 35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING) | ||||
| 90341-08001 |
AE11#,CE110..4FC |
1 | ||
| 35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2) | ||||
| 90301-06196 |
AE11#,CE110..4FC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41206-20060 |
CE110..4FC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30054 |
AE114,CE110..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30053 |
AE114,CE110..4FC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-20200 |
CE110..4FC |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AE110,111,CE110,EE111..ATM |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-20030 |
CE110..4FC |
4 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-17010 |
AE114,CE110..4FC |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-20112 |
CE110..4FC |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-45015 |
CE110..4FC 厚さ=2.60,ﾏｰｸ 15 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90368-40002 |
CE110..4FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-44001 |
CE110..4FC |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90201-45005 |
CE110..4FC 厚さ=2.05,ﾏｰｸ 02 |
1 | ||
| 90201-45006 |
CE110..4FC 厚さ=2.10,ﾏｰｸ 03 |
1 | ||
| 90201-45013 |
CE110..4FC 厚さ=2.45,ﾏｰｸ 10 |
1 | ||
| 90201-45012 |
CE110..4FC 厚さ=2.40,ﾏｰｸ 09 |
1 | ||
| 90201-45007 |
CE110..4FC 厚さ=2.15,ﾏｰｸ 04 |
1 | ||
| 90201-45010 |
CE110..4FC 厚さ=2.30,ﾏｰｸ 07 |
1 | ||
| 90201-45008 |
CE110..4FC 厚さ=2.20,ﾏｰｸ 05 |
1 | ||
| 90201-45011 |
CE110..4FC 厚さ=2.35,ﾏｰｸ 08 |
1 | ||
| 90201-45018 |
CE110..4FC 厚さ=2.70,ﾏｰｸ 15 |
1 | ||
| 90201-45009 |
CE110..4FC 厚さ=2.25,ﾏｰｸ 06 |
1 | ||
| 90201-45014 |
CE110..4FC 厚さ=2.50,ﾏｰｸ 11 |
1 | ||
| 90201-45019 |
CE110..4FC 厚さ=2.75,ﾏｰｸ 16 |
1 | ||
| 90201-45020 |
CE110..4FC 厚さ=2.80,ﾏｰｸ 17 |
1 | ||
| 90201-45004 |
CE110..4FC 厚さ=2.00,ﾏｰｸ 01 |
1 | ||
| 90201-45017 |
CE110..4FC 厚さ=2.65,ﾏｰｸ 14 |
1 | ||
| 90201-45015 |
CE110..4FC 厚さ=2.55,ﾏｰｸ 12 |
1 | ||
| 90201-45016 |
CE110..4FC 厚さ=2.60,ﾏｰｸ 13 |
1 | ||
| 90201-45022 |
CE110..4FC 厚さ=2.90,ﾏｰｸ 19 |
1 | ||
| 90201-45021 |
CE110..4FC 厚さ=2.85,ﾏｰｸ 18 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-32010 |
CE110 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30011 |
CE110 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
AE110,111,CE110,EE111 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-32020 |
CE110 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CE110 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17040 |
AE110,111,CE110..4FC 厚さ=1.10 |
2 | ||
| 41361-17020 |
AE110,111,CE110..4FC 厚さ=1.00 |
2 | ||
| 41361-17010 |
AE110,111,CE110..4FC 厚さ=0.95 |
2 | ||
| 41361-17050 |
AE110,111,CE110..4FC 厚さ=1.15 |
2 | ||
| 41361-17010 |
AE110,111,CE110..4FC 厚さ=0.95 |
2 | ||
| 41361-17060 |
AE110,111,CE110..4FC 厚さ=1.20 |
2 | ||
| 41361-17020 |
AE110,111,CE110..4FC 厚さ=1.00 |
2 | ||
| 41361-17040 |
AE110,111,CE110..4FC 厚さ=1.10 |
2 | ||
| 41361-22140 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 41361-22020 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22040 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-17030 |
AE110,111,CE110..4FC 厚さ=1.05 |
2 | ||
| 41361-22150 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22160 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-22020 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-17060 |
AE110,111,CE110..4FC 厚さ=1.20 |
2 | ||
| 41361-22040 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22140 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 41361-17030 |
AE110,111,CE110..4FC 厚さ=1.05 |
2 | ||
| 41361-22030 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361-22160 |
AE110,111,CE110,EE111..3FC,4F,5F 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-22150 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-17050 |
AE110,111,CE110..4FC 厚さ=1.15 |
2 | ||
| 41361-22030 |
AE110,111,CE110,EE111..3FC,4F,5F,6F 厚さ=1.10,ﾏｰｸ 03 |
2 | ||

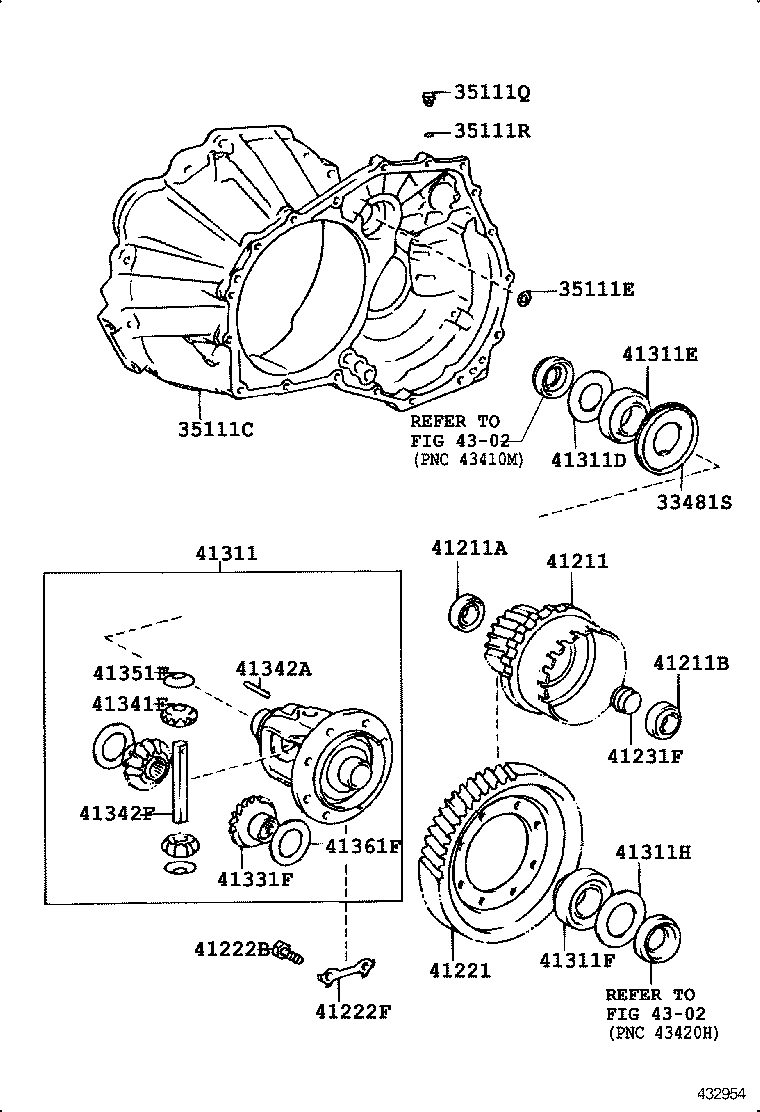

| Linked diagrams | ||||
| 4302 | ||||
