CE110-AEPES (1995)
Toyota Corolla

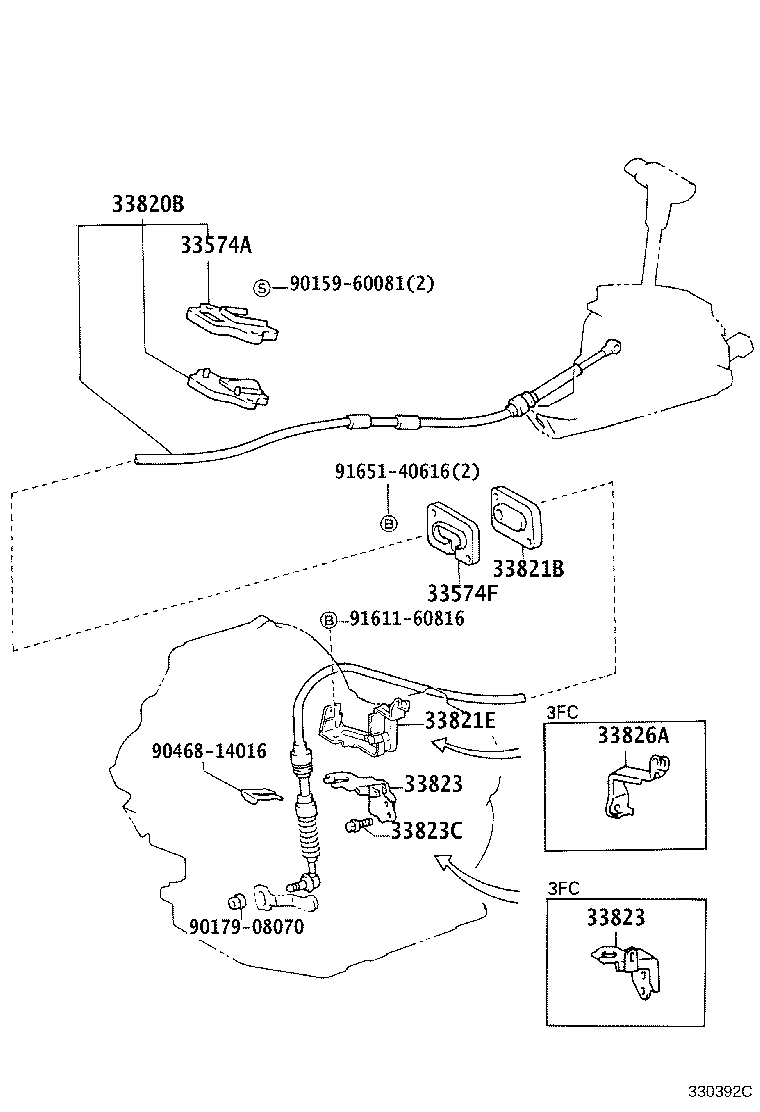

ILLUST NO. 2 OF 2(9505- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12040 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-12080 |
AE11#,CE11#,EE111 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12650 |
CE110..4FC |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01672 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90929-01355 |
CE110..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12160 |
CE110..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12160 |
CE110..4FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-61022 |
AE11#,CE110..4FC |
2 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90179-08070 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| 91651-40616 | ||||

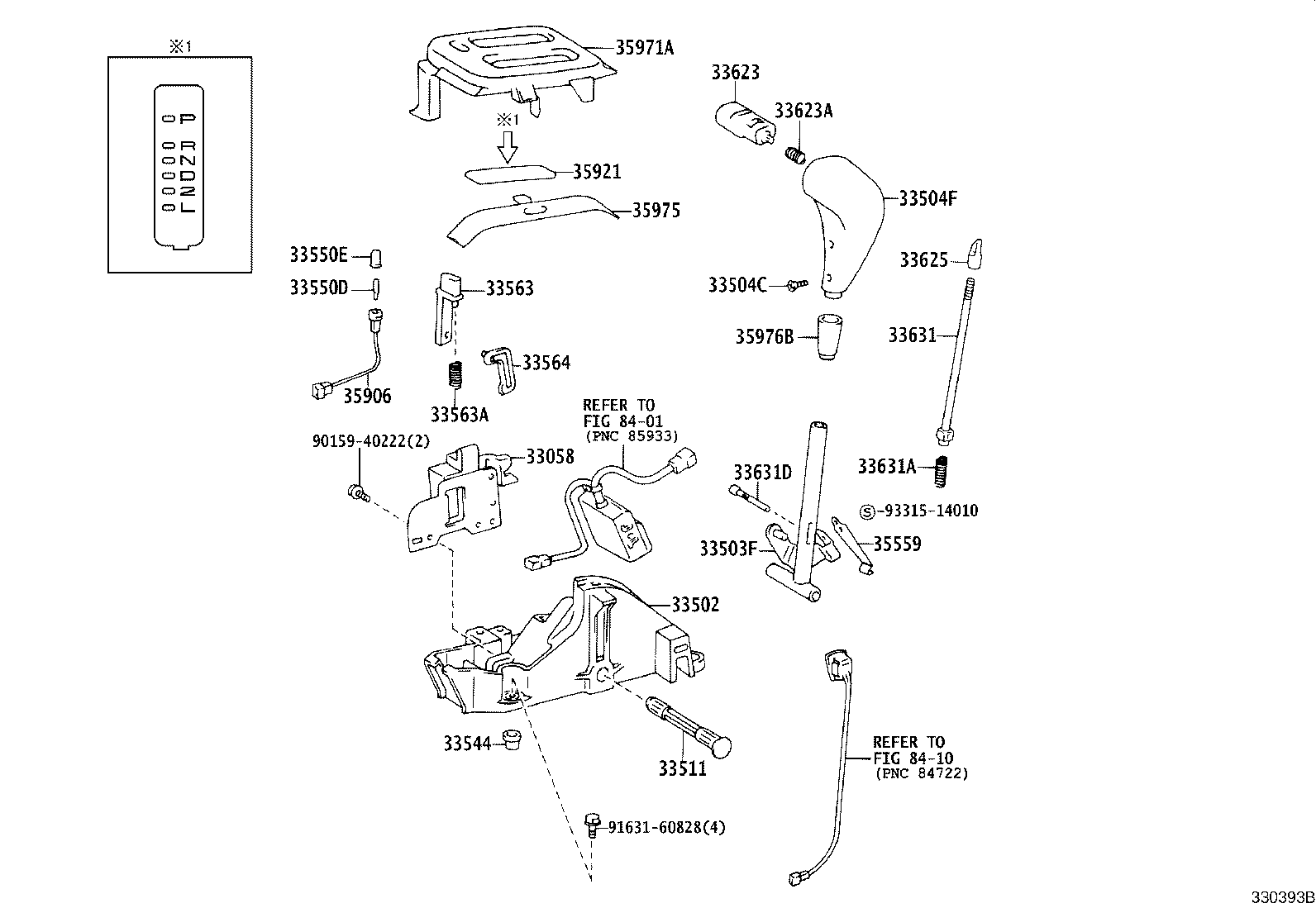

ILLUST NO. 1 OF 2(9505- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-12060 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-12250 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-12050 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
AE11#,CE110,EE111..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-12210B2 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) MD.CHARCOAL,TRIM14 |
1 | ||
| 33542-12210B0 |
AE11#,CE110,EE111..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33542-12210E0 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| 33542-12210B3 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) MD.GRAY,TRIM11 |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-12110 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-33010 |
AE11#,CE110,EE111..ATM |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11036 |
AE11#,CE110,EE111..ATM 12V 1.7W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09001 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-12070 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-05041 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-12070 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-12130B2 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) MD.GRAY,TRIM11 |
1 | ||
| 33623-12130B0 |
AE11#,CE110,EE111..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 33623-12130E0 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| 33623-12130B1 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) MD.CHARCOAL,TRIM14 |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07110 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-12030 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-12130 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33631-33020 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07117 |
AE11#,CE110,EE111..ATM |
1 | ||
| 90501-07101 |
AE11#,CE110,EE111..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90245-04009 |
AE11#,CE110,EE111..ATM |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-12040 |
AE11#,CE110,EE111..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12140 |
AE11#,CE110,EE111..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12400 |
AE11#,CE110,EE111..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-12340B1 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) MD.CHARCOAL,TRIM14 |
1 | ||
| 35971-12340B0 |
AE11#,CE110,EE111..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 35971-12340B2 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) MD.GRAY,TRIM11 |
1 | ||
| 35971-12340E0 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12220B0 |
AE11#,CE110,EE111..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 35975-12220E0 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| 35975-12220B1 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) MD.CHARCOAL,TRIM14 |
1 | ||
| 35975-12220B2 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) MD.GRAY,TRIM11 |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-12080B2 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) MD.CHARCOAL,TRIM14 |
1 | ||
| 35976-12080B3 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) MD.GRAY,TRIM11 |
1 | ||
| 35976-12080B0 |
AE11#,CE110,EE111..ATM SHADOW GRAY,TRIM1# |
1 | ||
| 35976-12080E0 |
AE110,114,CE110,EE111..ATM..(SESAL,XESAL) OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40222 | ||||
| 91631-60828 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
