CE109V-AXMNS (1991)
Toyota Corolla

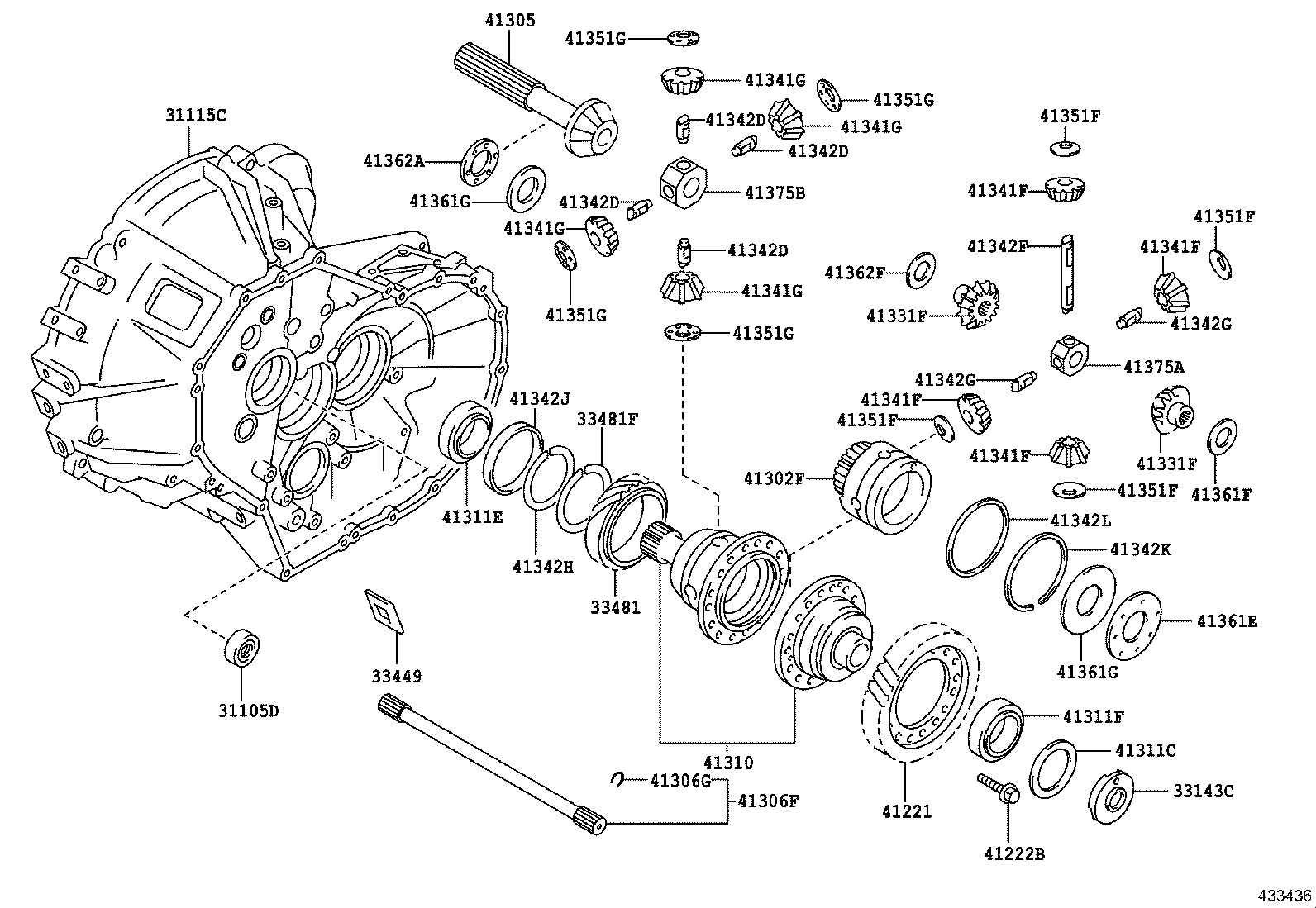

(9109- )AE104,109..5F
E55F,E55F5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-30006 |
AE104,109,CE10#..5F |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-33010 |
CE104,109 |
1 | ||
| 31115-33011 |
CE104,109 |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-20010 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-12080 |
CE104,109 |
1 | ||
| 33481-12090 |
AE104,109..5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12150 |
AE104,109,CE104,105,109..5F |
16 | ||
| 41305 - GEAR SUB-ASSY, DIFFERENTIAL SIDE | ||||
| 41305-12020 |
CE104,105,109 |
1 | ||
| 41310 - CASE ASSY, DIFFERENTIAL | ||||
| 41310-12080 |
CE104,109 |
1 | ||
| 41310-42030 |
CE104,109 |
1 | ||
| 41310-20250 |
CE105,109 |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-76005 |
AE104,109,CE104,105,109..5F 厚さ=2.20,ﾏｰｸ 4 |
1 | ||
| 90564-76003 |
AE104,109,CE104,105,109..5F 厚さ=2.10,ﾏｰｸ 2 |
1 | ||
| 90564-76002 |
AE104,109,CE104,105,109..5F 厚さ=2.05,ﾏｰｸ 1 |
1 | ||
| 90564-76006 |
AE104,109,CE104,105,109..5F 厚さ=2.25,ﾏｰｸ 5 |
1 | ||
| 90564-76008 |
AE104,109,CE104,105,109..5F 厚さ=2.35,ﾏｰｸ 7 |
1 | ||
| 90564-76007 |
AE104,109,CE104,105,109..5F 厚さ=2.30,ﾏｰｸ 6 |
1 | ||
| 90564-76001 |
AE104,109,CE104,105,109..5F 厚さ=2.00,ﾏｰｸ 0 |
1 | ||
| 90564-76013 |
AE104,109,CE104,105,109..5F 厚さ=2.60,ﾏｰｸ C |
1 | ||
| 90564-76014 |
AE104,109,CE104,105,109..5F 厚さ=2.65,ﾏｰｸ D |
1 | ||
| 90564-76009 |
AE104,109,CE104,105,109..5F 厚さ=2.40,ﾏｰｸ 8 |
1 | ||
| 90564-76012 |
AE104,109,CE104,105,109..5F 厚さ=2.55,ﾏｰｸ B |
1 | ||
| 90564-76016 |
AE104,109,CE104,105,109..5F 厚さ=2.75,ﾏｰｸ F |
1 | ||
| 90564-76004 |
AE104,109,CE104,105,109..5F 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90564-76015 |
AE104,109,CE104,105,109..5F 厚さ=2.70,ﾏｰｸ E |
1 | ||
| 90564-76010 |
AE104,109,CE104,105,109..5F 厚さ=2.45,ﾏｰｸ 9 |
1 | ||
| 90564-76011 |
AE104,109,CE104,105,109..5F 厚さ=2.50,ﾏｰｸ A |
1 | ||
| 90564-76017 |
AE104,109,CE104,105,109..5F 厚さ=2.80,ﾏｰｸ G |
1 | ||
| 90564-76018 |
AE104,109,CE104,105,109..5F 厚さ=2.85,ﾏｰｸ H |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57001 |
AE104,109,CE104,105,109..5F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-50014 |
AE104,109,CE104,105,109..5F |
1 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41341G - PINION, CENTER DIFFERENTIAL | ||||
| 41341-12040 |
AE104,CE104,109..5F |
4 | ||
| 41341G - PINION, CENTER DIFFERENTIAL | ||||
| 41341-12040 |
AE104,CE104,109..5F |
4 | ||
| 41341G - PINION, CENTER DIFFERENTIAL | ||||
| 41341-12040 |
AE104,CE104,109..5F |
4 | ||
| 41341G - PINION, CENTER DIFFERENTIAL | ||||
| 41341-12040 |
AE104,CE104,109..5F |
4 | ||
| 41342D - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-12120 |
AE104,CE104,109..5F |
4 | ||
| 41342D - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-12120 |
AE104,CE104,109..5F |
4 | ||
| 41342D - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-12120 |
AE104,CE104,109..5F |
4 | ||
| 41342D - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-12120 |
AE104,CE104,109..5F |
4 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-12040 |
AE104,109,CE104,105,109..5F |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST | ||||
| 41351-12060 |
AE104,CE104,109..5F |
4 | ||
| 41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST | ||||
| 41351-12060 |
AE104,CE104,109..5F |
4 | ||
| 41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST | ||||
| 41351-12060 |
AE104,CE104,109..5F |
4 | ||
| 41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST | ||||
| 41351-12060 |
AE104,CE104,109..5F |
4 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12350 |
AE104,109,CE104,105,109..5F 厚さ=1.05,ﾏｰｸ C |
1 | ||
| 41361-12390 |
AE104,109,CE104,105,109..5F 厚さ=1.25,ﾏｰｸ G |
1 | ||
| 41361-12370 |
AE104,109,CE104,105,109..5F 厚さ=1.15,ﾏｰｸ E |
1 | ||
| 41361-12380 |
AE104,109,CE104,105,109..5F 厚さ=1.20,ﾏｰｸ F |
1 | ||
| 41361-12340 |
AE104,109,CE104,105,109..5F 厚さ=1.00,ﾏｰｸ B |
1 | ||
| 41361-12360 |
AE104,109,CE104,105,109..5F 厚さ=1.10,ﾏｰｸ D |
1 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-48001 |
CE105,109 右側 |
1 | ||
| 90208-48001 |
CE104,109 右側 |
1 | ||
| 90208-48001 |
AE104,CE109..5F 右側 |
1 | ||
| 90208-36001 |
AE104,109,CE104,105,109..5F 左側 |
1 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-48001 |
CE105,109 右側 |
1 | ||
| 90208-48001 |
CE104,109 右側 |
1 | ||
| 90208-48001 |
AE104,CE109..5F 右側 |
1 | ||
| 90208-36001 |
AE104,109,CE104,105,109..5F 左側 |
1 | ||
| 41362A - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41362-20320 |
AE104,CE104,109..5F 厚さ=1.00,ﾏｰｸ VE |
1 | ||
| 41362-20300 |
AE104,CE104,109..5F 厚さ=0.90,ﾏｰｸ VC |
1 | ||
| 41362-20290 |
AE104,CE104,109..5F 厚さ=0.85,ﾏｰｸ VB |
1 | ||
| 41362-20360 |
AE104,CE104,109..5F 厚さ=1.20,ﾏｰｸ VJ |
1 | ||
| 41362-20310 |
AE104,CE104,109..5F 厚さ=0.95,ﾏｰｸ VD |
1 | ||
| 41362-20330 |
AE104,CE104,109..5F 厚さ=1.05,ﾏｰｸ VF |
1 | ||
| 41362-20390 |
AE104,CE104,109..5F 厚さ=1.35,ﾏｰｸ VM |
1 | ||
| 41362-20350 |
AE104,CE104,109..5F 厚さ=1.05,ﾏｰｸ VH |
1 | ||
| 41362-20280 |
AE104,CE104,109..5F 厚さ=0.80,ﾏｰｸ VA |
1 | ||
| 41362-20380 |
AE104,CE104,109..5F 厚さ=1.30,ﾏｰｸ VL |
1 | ||
| 41362-20370 |
AE104,CE104,109..5F 厚さ=1.25,ﾏｰｸ VK |
1 | ||
| 41362-20400 |
AE104,CE104,109..5F 厚さ=1.40,ﾏｰｸ VN |
1 | ||
| 41362-20340 |
AE104,CE104,109..5F 厚さ=1.10,ﾏｰｸ VG |
1 | ||
| 41375B - HOLDER, CENTER DIFFERENTIAL PINION SHAFT | ||||
| 41375-12050 |
AE104,CE104,109..5F |
1 | ||

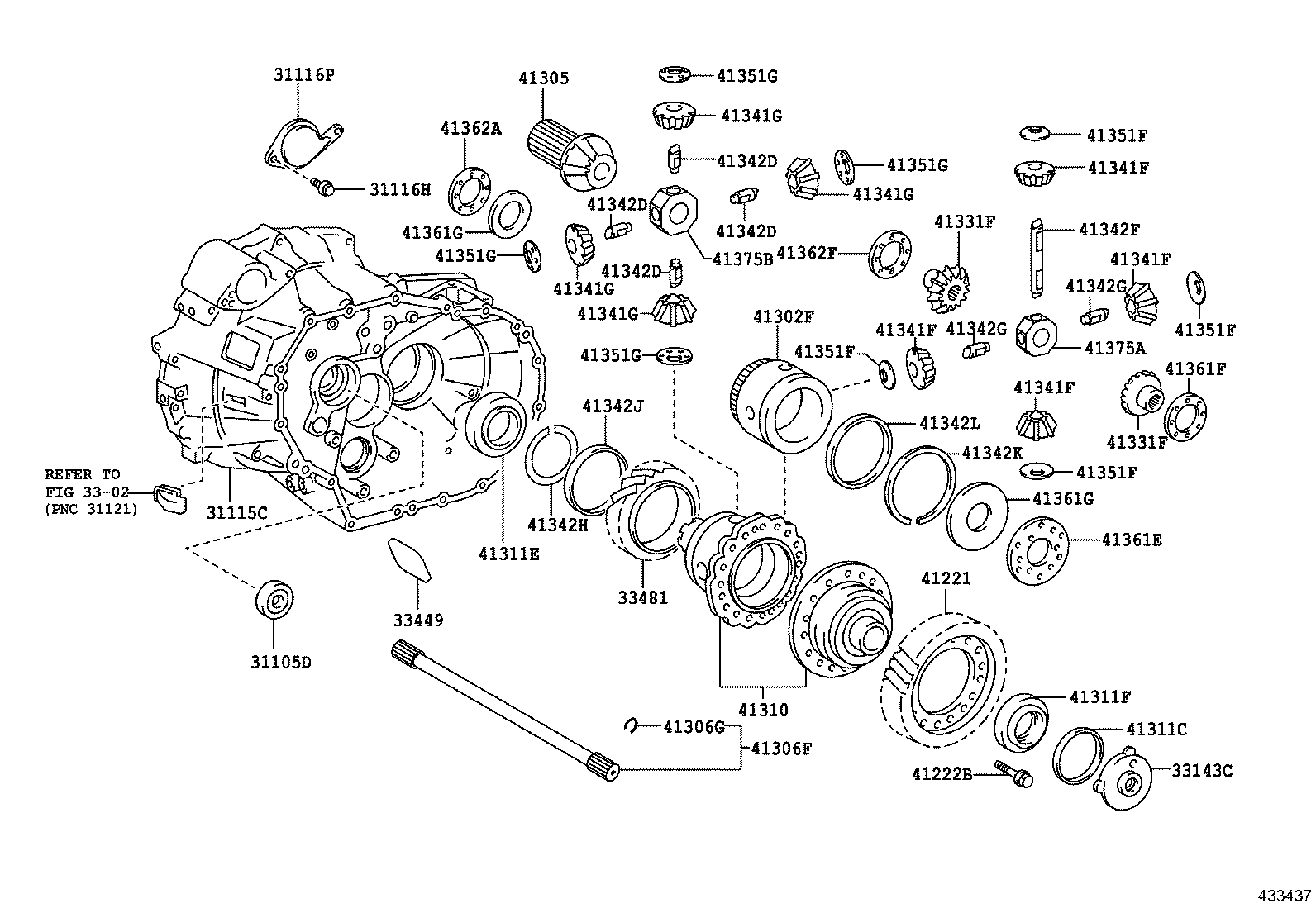

(9109- )CE104,105,109
E59F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-30006 |
AE104,109,CE10#..5F |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-33010 |
CE104,109 |
1 | ||
| 31115-33011 |
CE104,109 |
1 | ||
| 31116P - COVER, TRANSAXLE CASE | ||||
| 31116-12020 |
CE104,105,109 |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-20010 |
AE104,109,CE104,105,109..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-12080 |
CE104,109 |
1 | ||
| 33481-12090 |
AE104,109..5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12150 |
AE104,109,CE104,105,109..5F |
16 | ||
| 41305 - GEAR SUB-ASSY, DIFFERENTIAL SIDE | ||||
| 41305-12020 |
CE104,105,109 |
1 | ||
| 41310 - CASE ASSY, DIFFERENTIAL | ||||
| 41310-12080 |
CE104,109 |
1 | ||
| 41310-42030 |
CE104,109 |
1 | ||
| 41310-20250 |
CE105,109 |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-76005 |
AE104,109,CE104,105,109..5F 厚さ=2.20,ﾏｰｸ 4 |
1 | ||
| 90564-76003 |
AE104,109,CE104,105,109..5F 厚さ=2.10,ﾏｰｸ 2 |
1 | ||
| 90564-76002 |
AE104,109,CE104,105,109..5F 厚さ=2.05,ﾏｰｸ 1 |
1 | ||
| 90564-76006 |
AE104,109,CE104,105,109..5F 厚さ=2.25,ﾏｰｸ 5 |
1 | ||
| 90564-76008 |
AE104,109,CE104,105,109..5F 厚さ=2.35,ﾏｰｸ 7 |
1 | ||
| 90564-76007 |
AE104,109,CE104,105,109..5F 厚さ=2.30,ﾏｰｸ 6 |
1 | ||
| 90564-76001 |
AE104,109,CE104,105,109..5F 厚さ=2.00,ﾏｰｸ 0 |
1 | ||
| 90564-76013 |
AE104,109,CE104,105,109..5F 厚さ=2.60,ﾏｰｸ C |
1 | ||
| 90564-76014 |
AE104,109,CE104,105,109..5F 厚さ=2.65,ﾏｰｸ D |
1 | ||
| 90564-76009 |
AE104,109,CE104,105,109..5F 厚さ=2.40,ﾏｰｸ 8 |
1 | ||
| 90564-76012 |
AE104,109,CE104,105,109..5F 厚さ=2.55,ﾏｰｸ B |
1 | ||
| 90564-76016 |
AE104,109,CE104,105,109..5F 厚さ=2.75,ﾏｰｸ F |
1 | ||
| 90564-76004 |
AE104,109,CE104,105,109..5F 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90564-76015 |
AE104,109,CE104,105,109..5F 厚さ=2.70,ﾏｰｸ E |
1 | ||
| 90564-76010 |
AE104,109,CE104,105,109..5F 厚さ=2.45,ﾏｰｸ 9 |
1 | ||
| 90564-76011 |
AE104,109,CE104,105,109..5F 厚さ=2.50,ﾏｰｸ A |
1 | ||
| 90564-76017 |
AE104,109,CE104,105,109..5F 厚さ=2.80,ﾏｰｸ G |
1 | ||
| 90564-76018 |
AE104,109,CE104,105,109..5F 厚さ=2.85,ﾏｰｸ H |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57001 |
AE104,109,CE104,105,109..5F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-50014 |
AE104,109,CE104,105,109..5F |
1 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41341G - PINION, CENTER DIFFERENTIAL | ||||
| 41341-12040 |
AE104,CE104,109..5F |
4 | ||
| 41341G - PINION, CENTER DIFFERENTIAL | ||||
| 41341-12040 |
AE104,CE104,109..5F |
4 | ||
| 41341G - PINION, CENTER DIFFERENTIAL | ||||
| 41341-12040 |
AE104,CE104,109..5F |
4 | ||
| 41341G - PINION, CENTER DIFFERENTIAL | ||||
| 41341-12040 |
AE104,CE104,109..5F |
4 | ||
| 41342D - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-12120 |
AE104,CE104,109..5F |
4 | ||
| 41342D - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-12120 |
AE104,CE104,109..5F |
4 | ||
| 41342D - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-12120 |
AE104,CE104,109..5F |
4 | ||
| 41342D - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-12120 |
AE104,CE104,109..5F |
4 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-12040 |
AE104,109,CE104,105,109..5F |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AE104,109,CE104,105,109..5F |
4 | ||
| 41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST | ||||
| 41351-12060 |
AE104,CE104,109..5F |
4 | ||
| 41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST | ||||
| 41351-12060 |
AE104,CE104,109..5F |
4 | ||
| 41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST | ||||
| 41351-12060 |
AE104,CE104,109..5F |
4 | ||
| 41351G - WASHER, CENTER DIFFERENTIAL PINION THRUST | ||||
| 41351-12060 |
AE104,CE104,109..5F |
4 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12350 |
AE104,109,CE104,105,109..5F 厚さ=1.05,ﾏｰｸ C |
1 | ||
| 41361-12390 |
AE104,109,CE104,105,109..5F 厚さ=1.25,ﾏｰｸ G |
1 | ||
| 41361-12370 |
AE104,109,CE104,105,109..5F 厚さ=1.15,ﾏｰｸ E |
1 | ||
| 41361-12380 |
AE104,109,CE104,105,109..5F 厚さ=1.20,ﾏｰｸ F |
1 | ||
| 41361-12340 |
AE104,109,CE104,105,109..5F 厚さ=1.00,ﾏｰｸ B |
1 | ||
| 41361-12360 |
AE104,109,CE104,105,109..5F 厚さ=1.10,ﾏｰｸ D |
1 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-48001 |
CE105,109 右側 |
1 | ||
| 90208-48001 |
CE104,109 右側 |
1 | ||
| 90208-48001 |
AE104,CE109..5F 右側 |
1 | ||
| 90208-36001 |
AE104,109,CE104,105,109..5F 左側 |
1 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-48001 |
CE105,109 右側 |
1 | ||
| 90208-48001 |
CE104,109 右側 |
1 | ||
| 90208-48001 |
AE104,CE109..5F 右側 |
1 | ||
| 90208-36001 |
AE104,109,CE104,105,109..5F 左側 |
1 | ||
| 41362A - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41362-20320 |
AE104,CE104,109..5F 厚さ=1.00,ﾏｰｸ VE |
1 | ||
| 41362-20300 |
AE104,CE104,109..5F 厚さ=0.90,ﾏｰｸ VC |
1 | ||
| 41362-20290 |
AE104,CE104,109..5F 厚さ=0.85,ﾏｰｸ VB |
1 | ||
| 41362-20360 |
AE104,CE104,109..5F 厚さ=1.20,ﾏｰｸ VJ |
1 | ||
| 41362-20310 |
AE104,CE104,109..5F 厚さ=0.95,ﾏｰｸ VD |
1 | ||
| 41362-20330 |
AE104,CE104,109..5F 厚さ=1.05,ﾏｰｸ VF |
1 | ||
| 41362-20390 |
AE104,CE104,109..5F 厚さ=1.35,ﾏｰｸ VM |
1 | ||
| 41362-20350 |
AE104,CE104,109..5F 厚さ=1.05,ﾏｰｸ VH |
1 | ||
| 41362-20280 |
AE104,CE104,109..5F 厚さ=0.80,ﾏｰｸ VA |
1 | ||
| 41362-20380 |
AE104,CE104,109..5F 厚さ=1.30,ﾏｰｸ VL |
1 | ||
| 41362-20370 |
AE104,CE104,109..5F 厚さ=1.25,ﾏｰｸ VK |
1 | ||
| 41362-20400 |
AE104,CE104,109..5F 厚さ=1.40,ﾏｰｸ VN |
1 | ||
| 41362-20340 |
AE104,CE104,109..5F 厚さ=1.10,ﾏｰｸ VG |
1 | ||
| 41375B - HOLDER, CENTER DIFFERENTIAL PINION SHAFT | ||||
| 41375-12050 |
AE104,CE104,109..5F |
1 | ||
| Linked diagrams | ||||
| 3302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
