Toyota Corolla CE109 TRANSFER GEAR

CE109V-AXMNS (1991)

Toyota Corolla

Production Sep 1991 - Apr 1998

Engine 2C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9109- )AE104,109..5F

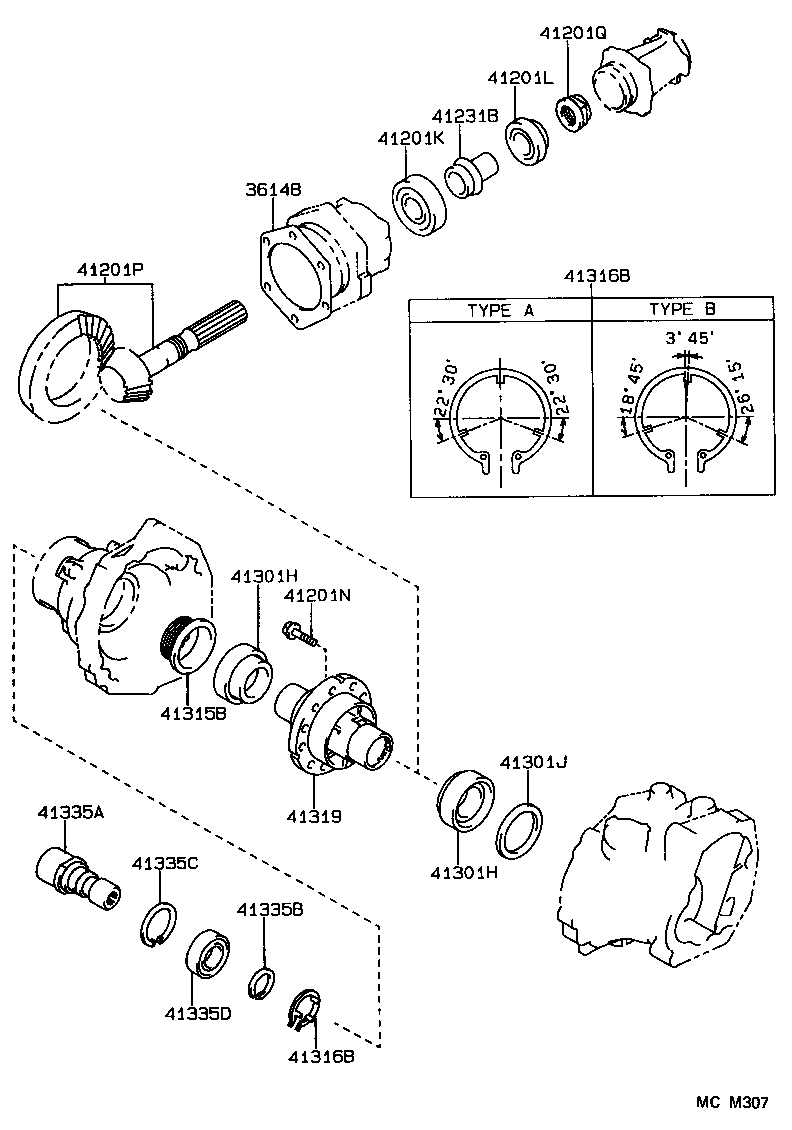

Click highlighted areas on diagram

E55F5

Part #	Description	Period	Qty
41201P - GEAR KIT, TRANSFER
41201-12170	CE104,109	09/1991 - 05/1996	1
41201-12170	AE104,CE109..5F	05/1996 - 05/1997	1
41301H - BEARING(FOR RING GEAR MOUNTING CASE)
90366-55039	CE104,109 右側	09/1991 - 05/1996	1
90366-55039	CE109 右側	05/1997 - 04/1998	1
90366-58007	AE104,CE109..5F 左側	05/1996 - 05/1997	1
90366-58007	CE104,109 左側	09/1991 - 05/1996	1
90366-55039	AE104,CE109..5F 右側	05/1996 - 05/1997	1
90366-58007	CE109 左側	05/1997 - 04/1998	1
41301H - BEARING(FOR RING GEAR MOUNTING CASE)
90366-55039	CE104,109 右側	09/1991 - 05/1996	1
90366-55039	CE109 右側	05/1997 - 04/1998	1
90366-58007	AE104,CE109..5F 左側	05/1996 - 05/1997	1
90366-58007	CE104,109 左側	09/1991 - 05/1996	1
90366-55039	AE104,CE109..5F 右側	05/1996 - 05/1997	1
90366-58007	CE109 左側	05/1997 - 04/1998	1
41315B - NUT, BEARING ADJUSTING
41315-12050	AE104,CE109..5F	05/1996 - 05/1997	1
41315-12050	CE104,109	09/1991 - 05/1996	1
41315-12050	CE105,109	05/1997 - 12/2999	1
41316B - PLATE, ADJUSTING NUT LOCK
41316-20030	AE104,CE104,109..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 09/1993	1
41316-20040	AE109,CE109..5F	05/1996 - 04/1997	1
41316-20040	AE104,CE109..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 05/1997	1
41316-20040	AE104,CE104,109..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1996	1
41316-20040	CE109 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1997 - 04/1998	1
41316B - PLATE, ADJUSTING NUT LOCK
41316-20030	AE104,CE104,109..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 09/1993	1
41316-20040	AE109,CE109..5F	05/1996 - 04/1997	1
41316-20040	AE104,CE109..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 05/1997	1
41316-20040	AE104,CE104,109..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1996	1
41316-20040	CE109 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1997 - 04/1998	1

(9109- )AE104,109,CE104,105,109..5F

Click highlighted areas on diagram

E59F,E55F ｱﾘ(ABS)

Part #	Description	Period	Qty
41201P - GEAR KIT, TRANSFER
41201-12170	CE104,109	09/1991 - 05/1996	1
41201-12170	AE104,CE109..5F	05/1996 - 05/1997	1
41301H - BEARING(FOR RING GEAR MOUNTING CASE)
90366-55039	CE104,109 右側	09/1991 - 05/1996	1
90366-55039	CE109 右側	05/1997 - 04/1998	1
90366-58007	AE104,CE109..5F 左側	05/1996 - 05/1997	1
90366-58007	CE104,109 左側	09/1991 - 05/1996	1
90366-55039	AE104,CE109..5F 右側	05/1996 - 05/1997	1
90366-58007	CE109 左側	05/1997 - 04/1998	1
41301H - BEARING(FOR RING GEAR MOUNTING CASE)
90366-55039	CE104,109 右側	09/1991 - 05/1996	1
90366-55039	CE109 右側	05/1997 - 04/1998	1
90366-58007	AE104,CE109..5F 左側	05/1996 - 05/1997	1
90366-58007	CE104,109 左側	09/1991 - 05/1996	1
90366-55039	AE104,CE109..5F 右側	05/1996 - 05/1997	1
90366-58007	CE109 左側	05/1997 - 04/1998	1
41301K - CASE SUB-ASSY, CENTER DIFFERENTIAL RING GEAR MOUNTING
41301-12160	AE104,CE104,109..5F	09/1991 - 05/1994	1
41301-20170	AE104,CE109..5F	08/1995 - 04/1998	1
41301-12160	CE109	05/1994 - 08/1995	1
41315B - NUT, BEARING ADJUSTING
41315-12050	AE104,CE109..5F	05/1996 - 05/1997	1
41315-12050	CE104,109	09/1991 - 05/1996	1
41315-12050	CE105,109	05/1997 - 12/2999	1
41316B - PLATE, ADJUSTING NUT LOCK
41316-20030	AE104,CE104,109..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 09/1993	1
41316-20040	AE109,CE109..5F	05/1996 - 04/1997	1
41316-20040	AE104,CE109..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 05/1997	1
41316-20040	AE104,CE104,109..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1996	1
41316-20040	CE109 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1997 - 04/1998	1
41316B - PLATE, ADJUSTING NUT LOCK
41316-20030	AE104,CE104,109..5F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 09/1993	1
41316-20040	AE109,CE109..5F	05/1996 - 04/1997	1
41316-20040	AE104,CE109..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 05/1997	1
41316-20040	AE104,CE104,109..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/1991 - 05/1996	1
41316-20040	CE109 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1997 - 04/1998	1
41330 - COUPLING ASSY, CENTER DIFFERENTIAL CONTROL
41330-20010	AE104,CE104,109..5F	09/1991 - 08/1995	1
41330-20011	AE104,CE109..5F	08/1995 - 04/1998	1
41330A - RING, HOLE SNAP (FOR DIFFERENTIAL INTERMEDIATE SHAFT)
90521-41004	AE104,CE104,109..5F	09/1991 - 04/1998	1
41330B - WASHER (FOR CENTER DIFFERENTIAL CONTROL COUPLING)
90209-69001	CE109	05/1994 - 08/1995	2
90209-69001	AE104,CE104,109..5F	09/1991 - 05/1994	2
41330B - WASHER (FOR CENTER DIFFERENTIAL CONTROL COUPLING)
90209-69001	CE109	05/1994 - 08/1995	2
90209-69001	AE104,CE104,109..5F	09/1991 - 05/1994	2
41337 - SHAFT, DIFFERENTIAL SIDE GEAR INTERMEDIATE, NO.2
41337-12010	AE104,CE104,109..5F	09/1991 - 04/1998	1
