CE108G-AWPDS (1991)
Toyota Corolla
ILLUST NO. 2 OF 2(9109- )V,WG
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE | ||||
| 68294-13010 |
AE100,CE106,108,109,EE106,107,108..V,WG |
1 | ||
| 68294-13031 |
AE10#,CE100,106,108,109,EE102,103,104..V,WG |
1 | ||
| 68294-13031 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE | ||||
| 68294-13010 |
AE100,CE106,108,109,EE106,107,108..V,WG |
1 | ||
| 68294-13031 |
AE10#,CE100,106,108,109,EE102,103,104..V,WG |
1 | ||
| 68294-13031 |
AE109,CE102,105,106,107,108,109,EE10# |
1 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104 |
2 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-13020 |
AE109,CE102,105,106,107,108,109,EE102,103,104 |
2 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-1F080 |
CE106,108,109,EE106,107,108..CTD,DX,L |
1 | ||
| 67005-1F120 |
CE106,108,109,EE106,107,108..CTD,DX,L ｱﾘ(*RW & *RWD) |
1 | ||
| 67005-1F100 |
CE106,108,109,EE106,107,108..CTD,DX,L ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-1F130 |
CE106,108,109,EE106,107,108..CTD,DX,L ｱﾘ(*RW & *RWD & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-1F100 |
CE106,108,109,EE106,107,108..DX,L ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
1 | ||
| 67005-1F080 |
CE106,108,109,EE106,107,108..DX,L |
1 | ||
| 67005-1F332 |
EE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE109,CE102,105,106,107,108,109,EE104 ｱﾘ(*RW & *RWD) |
1 | ||
| 67005-1F322 |
EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE109,CE102,105,106,107,108,109,EE104..CTD,DX,DXJ,L ｱﾘ(*RWD & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ ﾊﾞﾙﾌﾞｼｷ) |
1 | ||
| 67005-1F242 |
AE109,CE102,105,106,107,108,109,EE102,103,104..CTD,DX,DXJ,L ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 67005-1F362 |
EE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE109,CE102,105,106,107,108,109,EE104 ｱﾘ(*RWD & *RW & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ ﾊﾞﾙﾌﾞｼｷ) |
1 | ||
| 67005-1F382 |
CE108,EE104 ｱﾘ(*RWD & *RW & *RS) |
1 | ||
| 67179A - RETAINER, LICENSE PLATE | ||||
| 67179-13040 |
AE100,CE106,108,109,EE106,107,108..V,WG |
2 | ||
| 67281B - STOPPER, BACK DOOR, LOWER | ||||
| 67281-13060 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG |
2 | ||
| 67293 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 67293-13020 |
AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-13180 |
AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-13270 |
AE100,CE106,108,109,EE106,107,108..V,WG *EHT,厚さ=3.5,ｸﾘｱ |
1 | ||
| 68131-13271 |
AE109,CE106,108,109,EE102,103,104 *EHT,厚さ=3.5,ｸﾘｱ |
1 | ||
| 68131-13420 |
AE109,CE102,105,106,107,108,109,EE10# *EHT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 75129 - CUSHION, REAR LICENSE PLATE | ||||
| 75129-13010 |
AE109,CE102,105,106,107,108,109,EE10# |
3 | ||
| 75129-13020 |
AE100,CE106,108,109,EE102,103,104..V,WG |
3 | ||
| 75129-13010 |
AE100,104,CE100,106,108,109,EE102,103,104..V,WG |
3 | ||
| Common parts | ||||
| 90109-08270 | ||||
| 90159-50232 | ||||
| 90541-09126 | ||||
| 90950-01006 | ||||
| 90950-01061 | ||||
| Linked diagrams | ||||
| 6709 | ||||

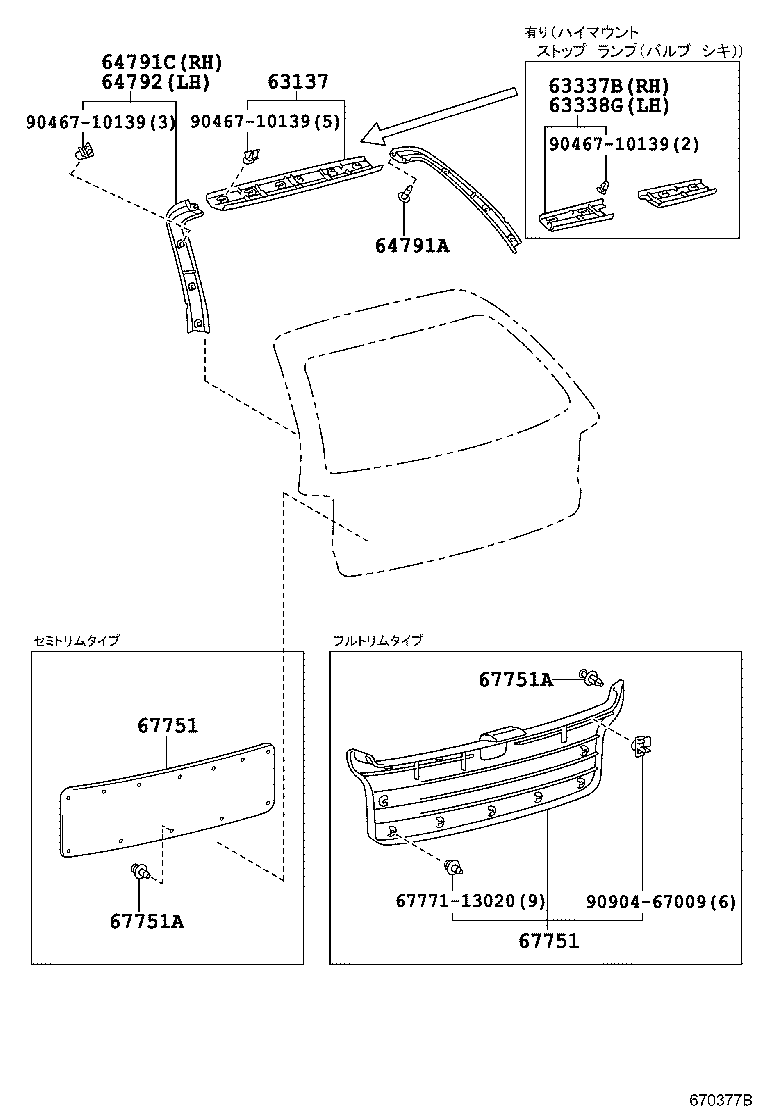

ILLUST NO. 1 OF 2(9109-9704)AE109,CE106,108,109,EE102,103,104,106,107,108 ; (9109-9705)AE100,101,104
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-0707603 |
CE106,108,109,EE106,107,108 SHADOW GRAY,TRIM1# |
12 | ||
| 90467-07041P0 |
AE109,CE106,108,109,EE102,103,104,106,107,108 SHADOW GRAY,TRIM1# |
12 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-0707603 |
CE106,108,109,EE106,107,108 SHADOW GRAY,TRIM1# |
12 | ||
| 90467-07041P0 |
AE109,CE106,108,109,EE102,103,104,106,107,108 SHADOW GRAY,TRIM1# |
12 | ||
| Common parts | ||||
| 67771-13020 | ||||
| 90467-10139 | ||||
| 90904-67009 | ||||
ILLUST NO. 1 OF 2(9704- )AE109,CE106,108,109,EE10# ; (9705-)AE100,101,104,CE100 ; (9804- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-0707603 |
CE106,108,109,EE106,107,108 SHADOW GRAY,TRIM1# |
12 | ||
| 90467-07041P0 |
AE109,CE106,108,109,EE102,103,104,106,107,108 SHADOW GRAY,TRIM1# |
12 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-0707603 |
CE106,108,109,EE106,107,108 SHADOW GRAY,TRIM1# |
12 | ||
| 90467-07041P0 |
AE109,CE106,108,109,EE102,103,104,106,107,108 SHADOW GRAY,TRIM1# |
12 | ||
| Common parts | ||||
| 67771-13020 | ||||
| 90467-10139 | ||||
| 90904-67009 | ||||
