CE107V-AXPNE (1998)

Toyota Corolla

Production Apr 1998 - Jun 2002
Engine 3CE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )CE10#

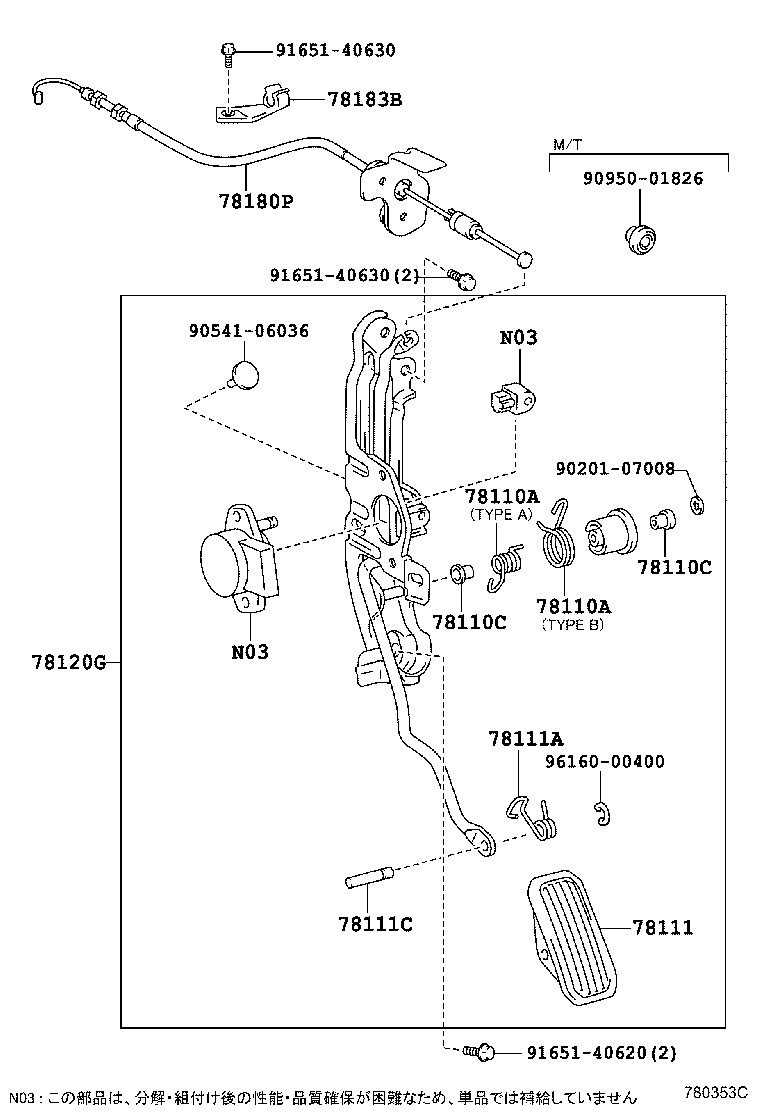

Click highlighted areas on diagram

diagram 78110A 78110A 78110C 78110C 78111 78111A 78111C 78120G 78180P 78183B 9020107008 9054106036 9095001826 9165140620 9165140630 9165140630 9616000400
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18398

AE101,EE106,107,108..ATM..(CTD,DX,GL,GT,L)

 1
90959-03196

CE101,102,107..4FC

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90959-03198

CE101,102,107..4FC

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18398

AE101,EE106,107,108..ATM..(CTD,DX,GL,GT,L)

 1
90959-03196

CE101,102,107..4FC

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90959-03198

CE101,102,107..4FC

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08007

CE10#

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08007

CE10#

 2
78111 - PEDAL, ACCELERATOR
78111-32010

AE10#,CE10#,EE10#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

AE10#,CE10#,EE10#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AE10#,CE10#,EE10#

 1
90249-05001

CE10#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12170

AE101,EE106,107,108..ATM..(CTD,DX,GL,GT,L)

 1
78010-12140

CE101,102,107..4FC

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-1A650

CE101,102,107..4FC

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12160

AE10#,CE10#,EE10#

 1
Common parts
90201-07008
90541-06036
90950-01826
91651-40620
91651-40630
96160-00400
